Product Overview
Engineered for modern clinical environments, our 3-Function Electric Hospital Bed combines high-grade ABS engineering plastic components with a heavy-duty steel structure to deliver exceptional durability and patient comfort. Featuring a safe 260kg load capacity, a central-locking caster system, and smooth motorized adjustments, this bed satisfies the rigorous demands of hospital wards and medical centers worldwide.

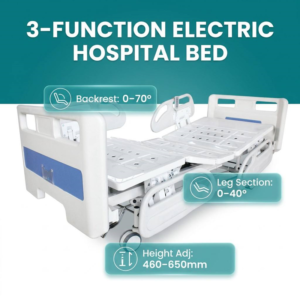

Technical Specifications
| Feature / Parameter | Technical Specification |
| Overall Dimensions | L2200 × W1080 × H460-650 mm |
| Backrest Adjustment | 0 – 70° ± 5° |
| Leg Section Adjustment | 0 – 40° ± 5° |
| Height Adjustment Range | 460 – 650 mm |
| Safe Working Load | ≥260kg |
| Bed Deck Material | 1.1 mm thick one-piece stamped cold-rolled steel (concave & perforated) |
| Frame Material | 30 × 60 × 1.2 mm welded formed square tubing |
| Caster System | 125 mm deluxe central-locking silent dual-wheel casters |
| Surface Coating | Automated line AkzoNobel electrostatic powder coating |
| Electrical System
|
3 safe-voltage motors with 1 control box & handheld controller |
Key Features & Clinical Advantages
-
Heavy-Duty Stamped Bed Platform: The bed deck is manufactured from a single sheet of 1.1 mm high-quality cold-rolled steel through a one-piece stamping process. The concave, multi-perforated design prevents mattress slipping while improving breathability. Reinforced with underlying steel tubing and a dual-support structure to support loads ≥ 260kg.
-
Quick-Release ABS Head & Foot Boards: Blow-molded from premium ABS engineering plastic, the head and footboards offer impact resistance, easy cleaning, and electrical insulation. Equipped with a symmetrical automatic locking mechanism for rapid detachment during clinical emergency CPR. Includes a transparent patient ID card holder.
-
Damped ABS Split Side Rails: 4 European-style ABS side rails featuring an anti-pinch design and integrated damping devices for quiet, controlled lowering. When lowered, the rails retract flush beneath the bed frame for unobstructed patient transfers.
-
Deluxe Central-Locking Casters: Four 125 mm silent, waterproof, and dustproof casters with a dual-wheel design for superior floor contact. The central linkage braking system provides rapid, highly stable one-pedal operation.
-
Industrial-Grade AkzoNobel Coating: The bed frame undergoes pickling, phosphating, water rinsing, and oxidation before being coated with eco-friendly AkzoNobel powder on an automated line, ensuring high corrosion resistance and color adhesion.
Configuration & Optional Accessories
-
Standard Configuration: European-style ABS head/footboards, 3 medical motors with 1 control box, 4 ABS damped side rails, 4 IV pole sockets, and 1 set of deluxe central-locking casters.
-
Optional Accessories Available: Specialized mattress (half-coir / half-cotton with waterproof cover), telescopic stainless steel IV pole, dining tray, under-bed storage rack, ABS bedside cabinet, and companion chair.
Factory Direct & Global Supply
-
Certifications & Compliance: Manufactured under strict ISO 13485 quality systems with full CE and FDA compliance for international hospital tenders.
-
OEM / ODM Customization: Full customization options available, including customized branding/logos, color schemes, controller interfaces, and packaging tailored for regional distributors.
