Product Overview
Core Product Advantages
- Wide Application Scenarios
Perfect for daily diagnosis of all outpatient departments and auxiliary lighting during various minor surgical procedures.
- Excellent Color Rendering Performance
High color rendering index Ra≥85, accurately restores the real color of human tissue to assist doctors in precise diagnosis.
- Premium Independent Lens Optical System

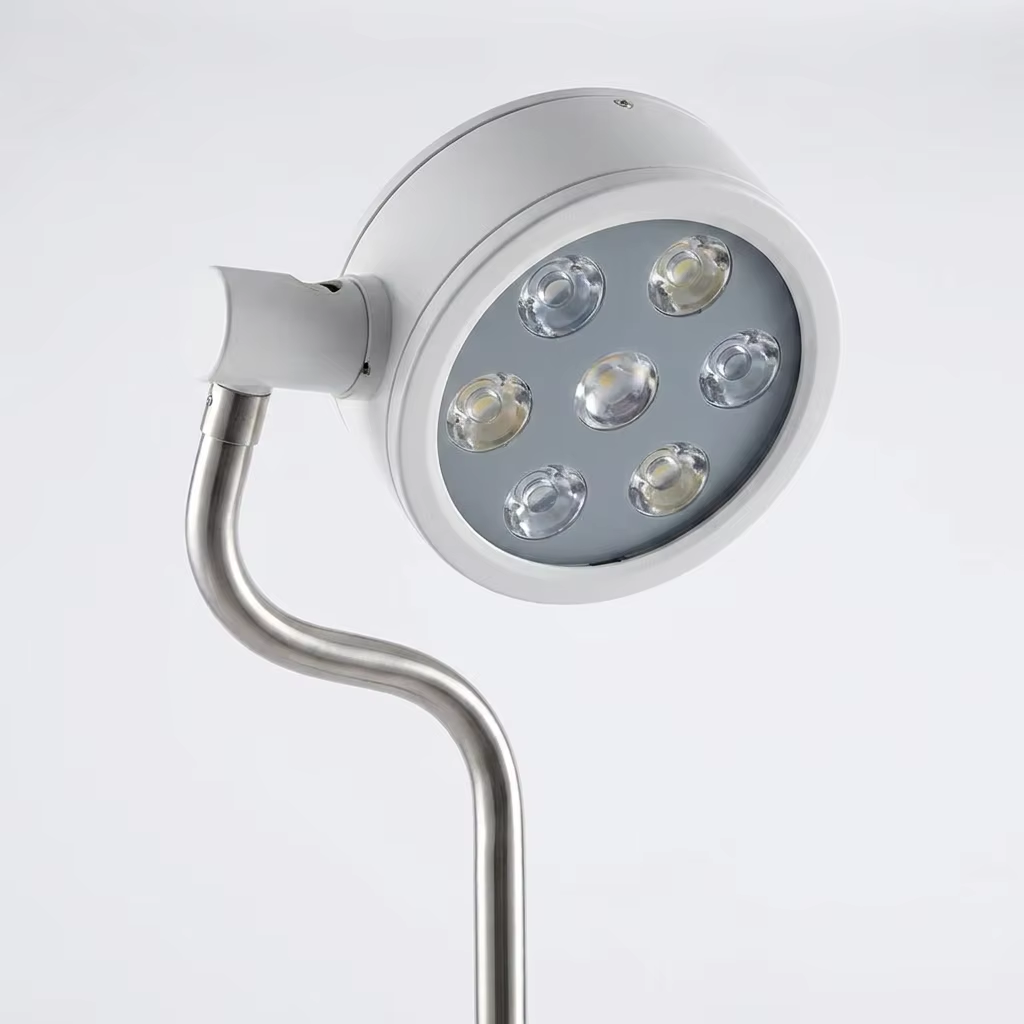

Equipped with 3W low-heat high-brightness imported OSRAM LED beads, matched with 7 independent lens groups for precise optical focusing, maximum illuminance reaches up to 35000Lux.
- Stepless Adjustable Brightness
Supports infinite stepless brightness adjustment to freely match different lighting demands of examination and surgery.
- Low-Heat Cold LED Light Source
Advanced cold light design generates minimal thermal radiation while maintaining high luminous intensity, avoiding tissue overheating and discomfort for patients and medical staff.
- Stable Focused Light Spot
Fixed light spot diameter of 135mm with effective focusing depth up to 800mm, providing uniform deep-field illumination for wound observation.
- Flexible Compact Movable Structure
Compact and elegant overall structure with smooth height lifting system, easy to adjust light position and angle effortlessly during clinical use.
- Ultra-Long Service Life
Original imported OSRAM LED light source with service life up to 50,000 hours, greatly reducing replacement and maintenance frequency.
Technical Parameters
- Model: CHLED200Y
- Light Source Type: LED Cold Light Source
- LED Bead Quantity: 7 pcs German OSRAM LED beads
- Max Illuminance: 35000 Lux
- Brightness Adjustment Mode: Stepless dimming
- Color Temperature: 4300K
- Color Rendering Index Ra: ≥85
- Light Spot Diameter: 135mm
- Effective Focus Depth: 800mm
- LED Service Life: ≥50000 hours
- Input Power Supply: AC220V / 50Hz
Standard Configuration List (Single Unit)
- Lamp Head ×1 set, Brand: Chenhong
- Germany OSRAM LED Light Module ×1 pc (7 LED beads included)
- Height Adjustable Vertical Column ×1 set, Brand: Chenhong
- Mobile Support Base with Lockable Casters ×1 set, Brand: Chenhong
- Matching Installation & Maintenance Tools ×1 set, Domestic Brand
- Product Qualification Certificate & Warranty Card ×1 set, Brand: Chenhong
- User Operation Manual ×1 set, Brand: Chenhong
