Product Overview

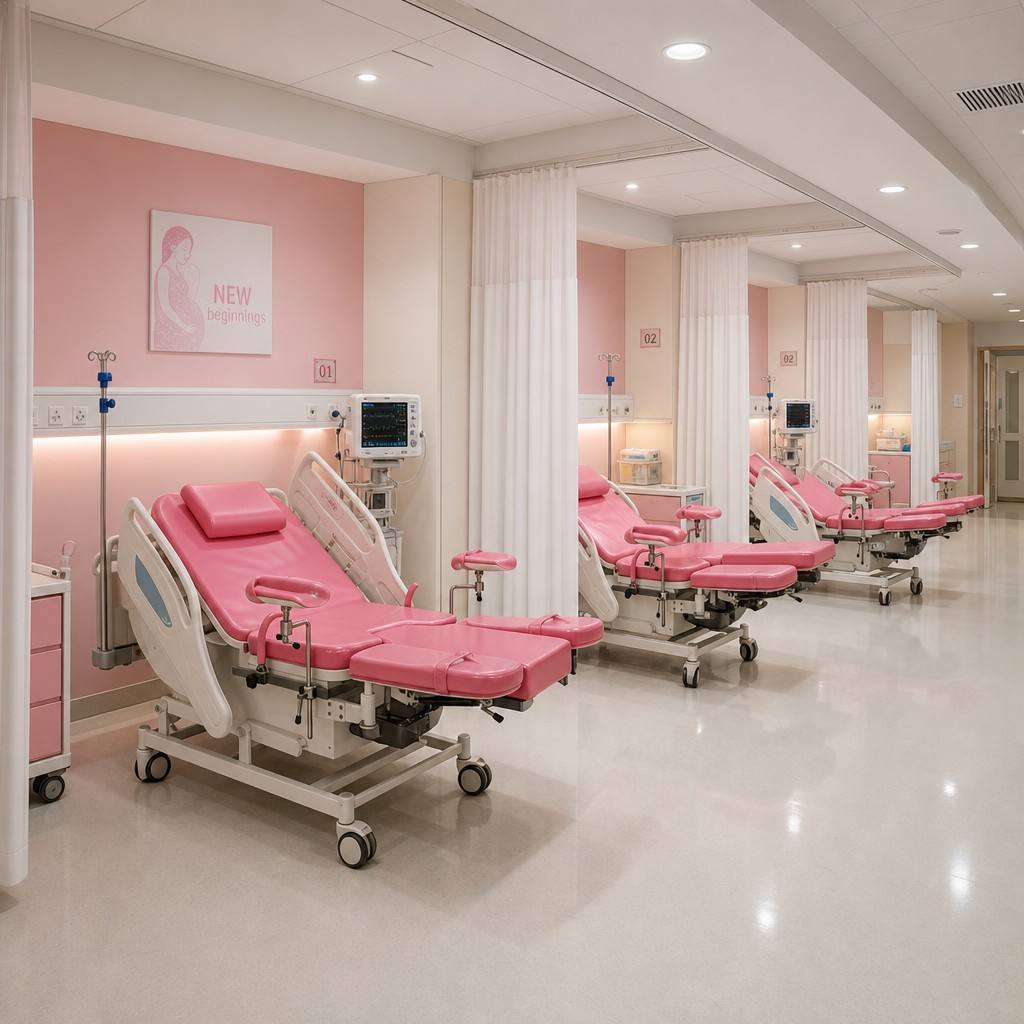

Designed to meet the rigorous demands of modern labor, delivery, and recovery (LDR) rooms, the CH-T600 Electric Obstetric Operating Table delivers versatile performance for childbirth, gynecological surgery, and post-partum care. Featuring high-precision linear actuators, smooth electric position adjustment, and integrated auxiliary tray design, this table provides exceptional comfort for mothers and ergonomic efficiency for medical teams.

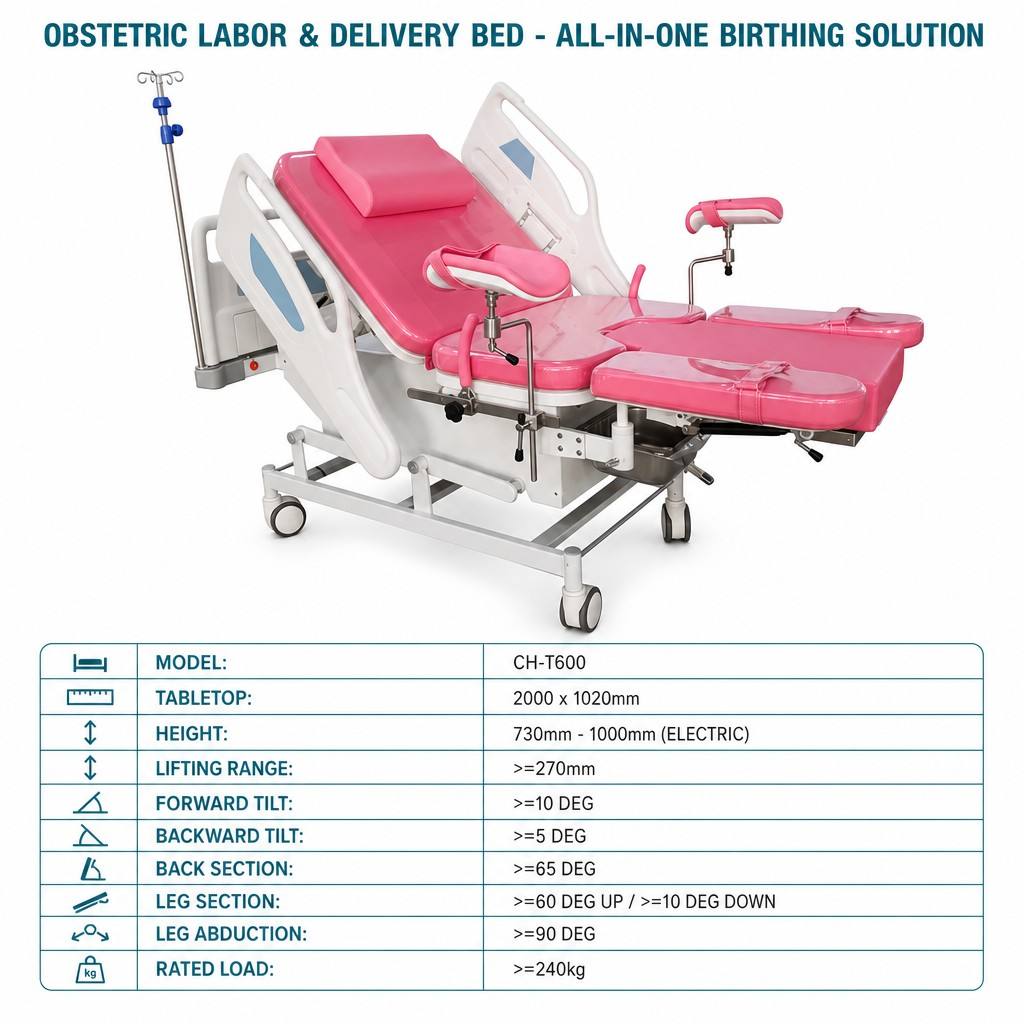

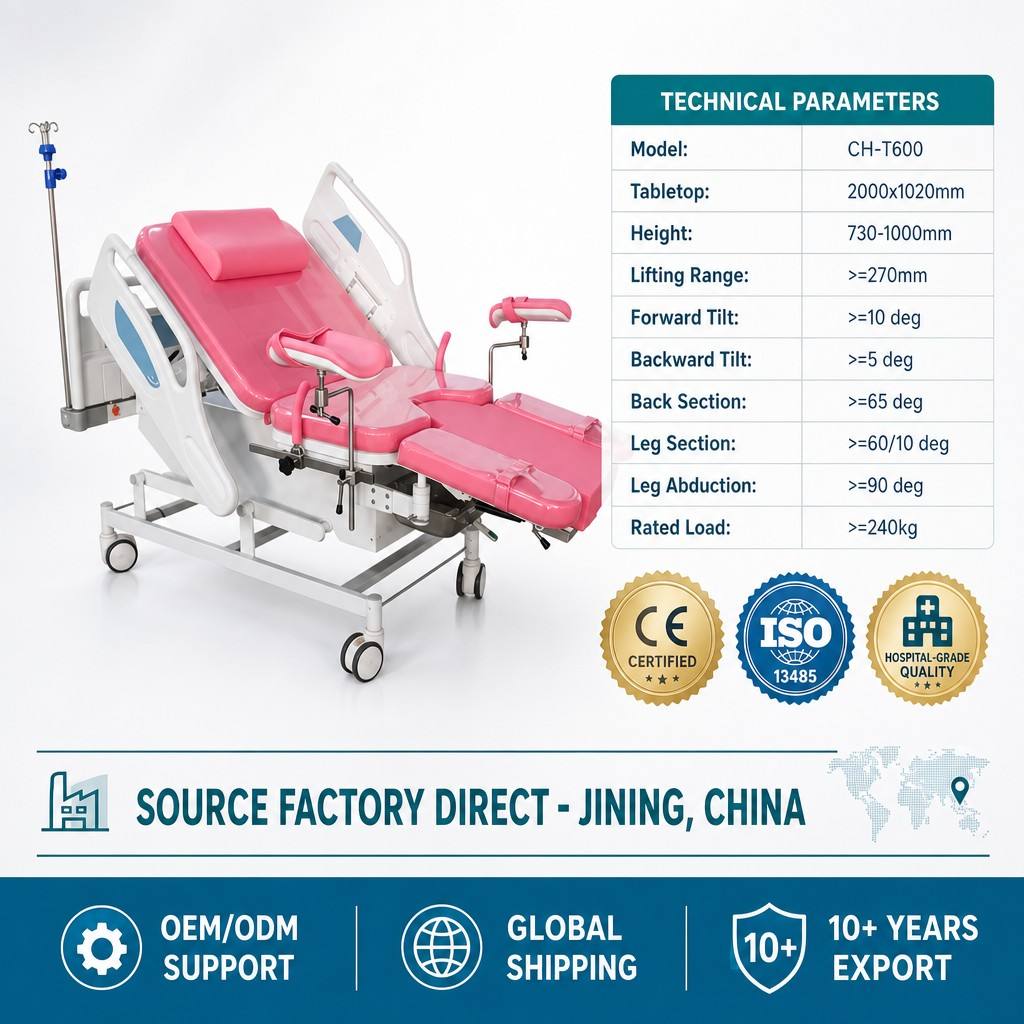

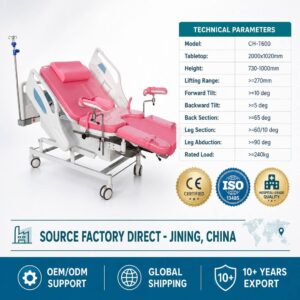

Technical Specifications
| Feature / Parameter | Technical Specification DOCX |
| Model Name |
CH-T600 |
| Tabletop Dimensions |
2000mm±20mm×1020mm±20mm |
| Tabletop Height Range |
Minimum 730mm ±20mm, maximum 1000mm ±20mm (electric) |
| Lifting Stroke | ≥270mm±20mm(electric) |
| Forward / Backward Tilt |
Forward ≥10°±2°(electric)/ Backward ≥5°±2°(electric) |
| Back Section Adjustment |
Upward ≥65°±2°(electric) |
| Leg Section Adjustments |
Upward ≥60°±2°, Downward ≥10°±2°, Abduction ≥90°±2° |
| Rated Load Capacity |
≥240kg |
| Power & Safety |
Built-in backup battery; Linear actuator motor system |
| Mattress Material |
Seamless bonded PU surface with high-d |
Key Features & Clinical Performance
-
Intelligent All-Electric Actuator System: Powered by low-noise, high-load medical linear actuators, allowing precise electric adjustments for backrest elevation, height lifting, and Trendelenburg/Reverse Trendelenburg tilting to support supine, sitting, lateral, and squatting delivery positions.
-

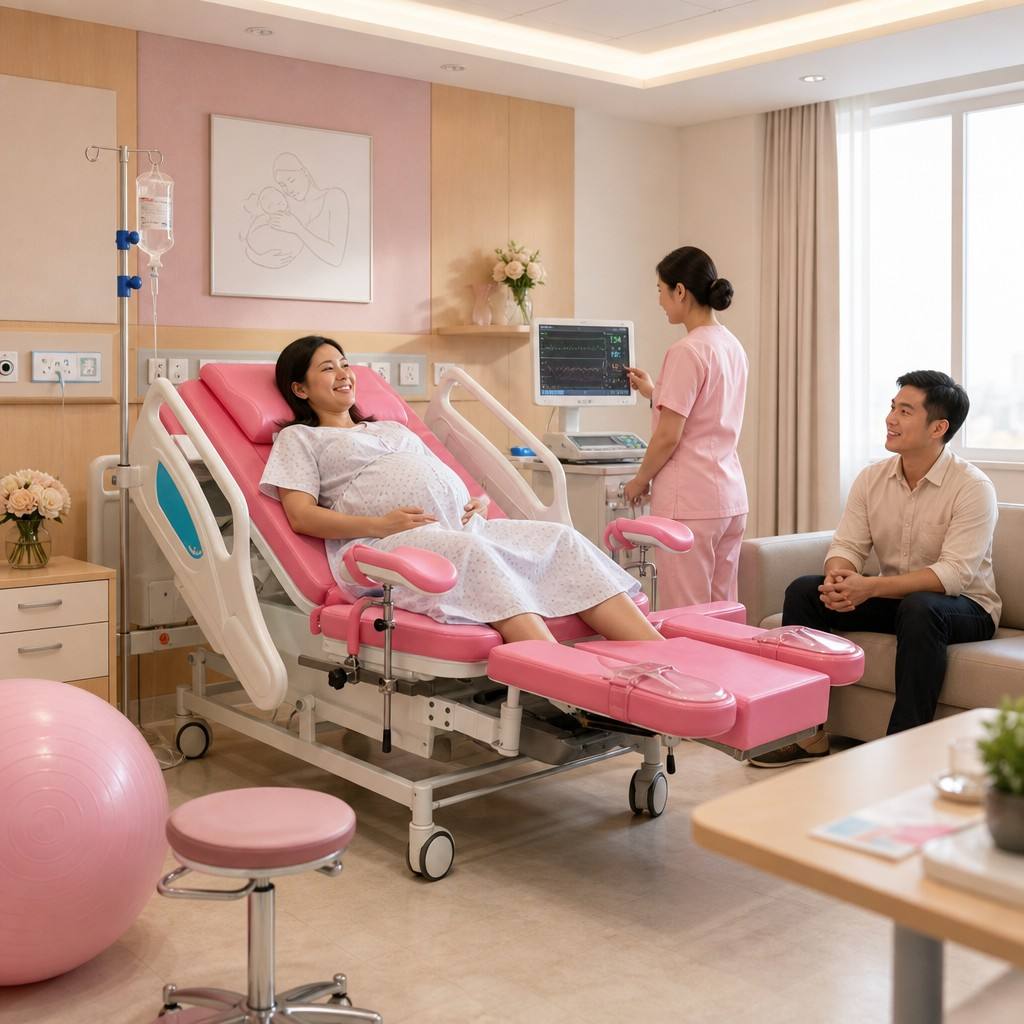

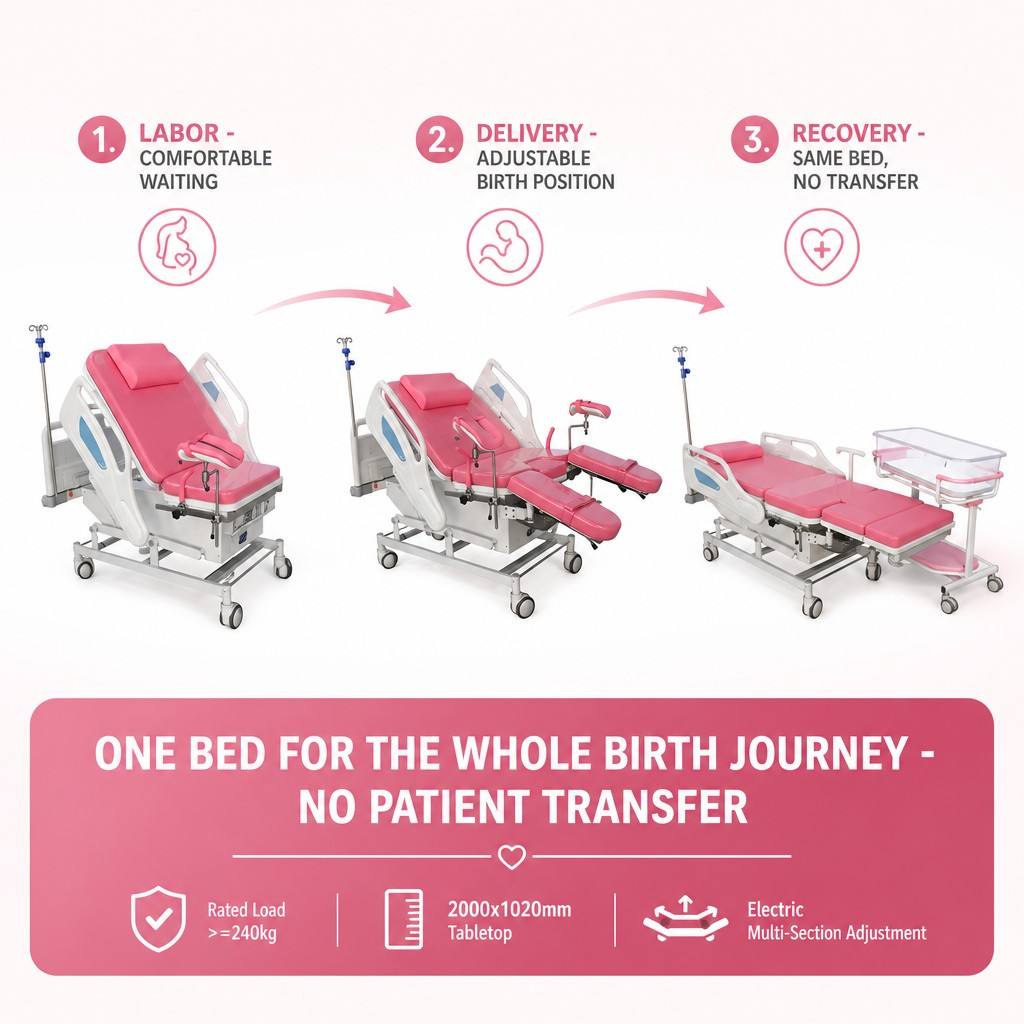

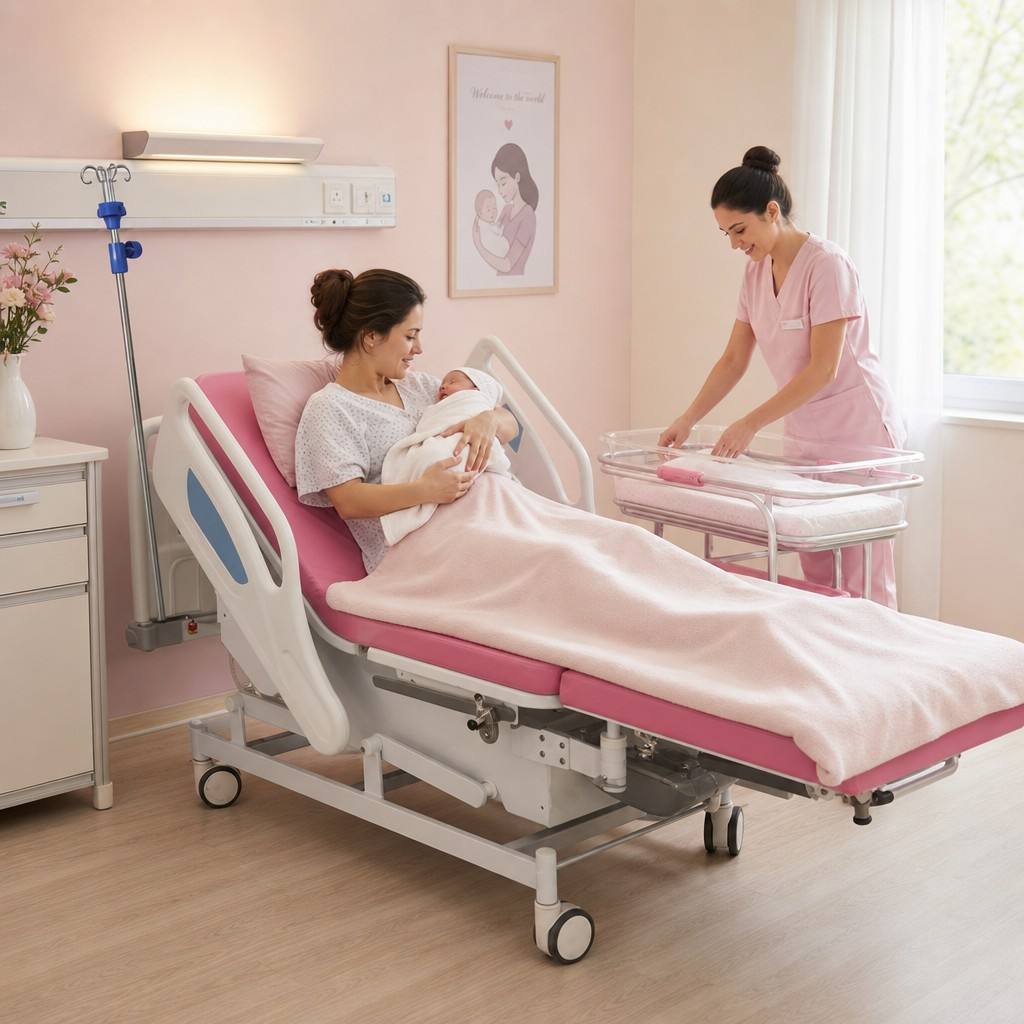

Rapid LDR Bed-to-Table Conversion: Features a heavy-duty, pull-out auxiliary tray and quickly detachable components. The unit effortlessly transitions from a comfortable maternity recovery bed to a fully functional obstetric surgical table.
-

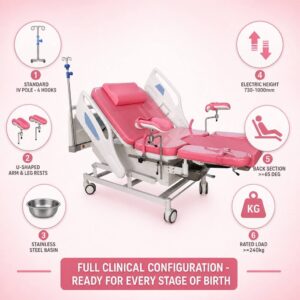

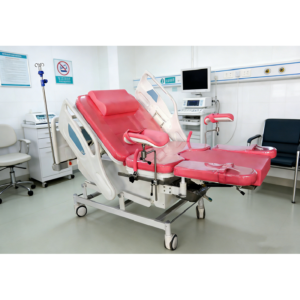

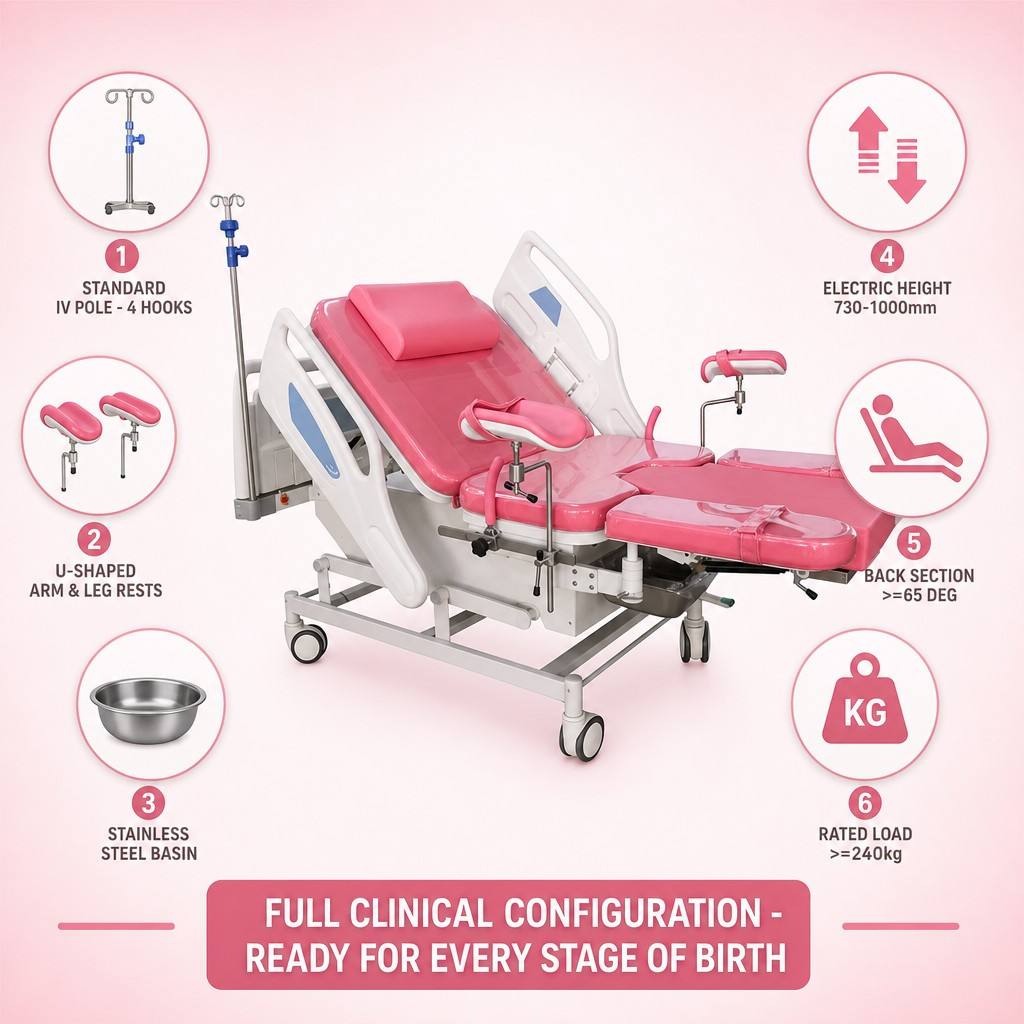

Ergonomic Patient Support & Midwifery Controls: Includes dual-option leg support (standard leg rests and gas-spring-assisted footrests) alongside foldable, streamlined midwifery handles for maternal support during labor.
-
Hygienic Seamless PU Mattress: The anti-corrosion, odor-resistant PU mattress uses seamless bonding technology for easy cleaning and thorough disinfection. Available in both V-cut and straight-edge seat configurations.
-
Damped Side Rails & Central Brake System: Split ABS side rails with hydraulic damping retract fully below the mattress deck. The base is fitted with 4 swivel casters controlled by a one-side central braking pedal with clear status indicators.
-
Emergency Uninterrupted Power: Equipped with a built-in backup battery to maintain full motorized functionality during power outages.
-
Robotic Welded Frame with AkzoNobel Coating: The bed frame is fabricated via robotic welding clusters and finished on an automated coating line with AkzoNobel electrostatic powder for superior antibacterial and anti-corrosion protection.
Factory Direct Capabilities & B2B Services
-
Certifications & Standards Compliance: Manufactured under strict ISO 13485 quality systems with full CE and FDA compliance, meeting all international hospital procurement requirements.
-
OEM & Customization Options: Full support for customized mattress colors (e.g., pink, blue), logo branding, control interfaces, and specialized packaging optimized for international container shipping.
💼 Why Partner with Us? (Serving Global B2B Distributors & Tender Projects)
As a robust, direct-selling medical device manufacturer, we provide tailored services for major international distributors, procurement networks, and hospital tender projects:
Factory-Direct Pricing: Eliminate intermediary markups to maximize your price competitiveness in tenders.
Global Supply Chain & Logistics: Flexible trade terms (FOB, CFR, CIF, DDP, etc.) to meet your specific logistical needs.
Comprehensive Certification Support: Every shipment includes full quality inspection documentation, warranty cards, and detailed operation manuals.
✉️ Get a Factory-Direct Wholesale Quote Today
Are you seeking highly competitive products for upcoming medical tenders or your distribution business? Contact our International Trade Department now to receive the latest wholesale quotes and customized configuration options!
Official Website: sdchmedical.com
Inquiry Email: chmedicalamy@gmail.com
WhatsApp/WeChat: +86 15963739383
