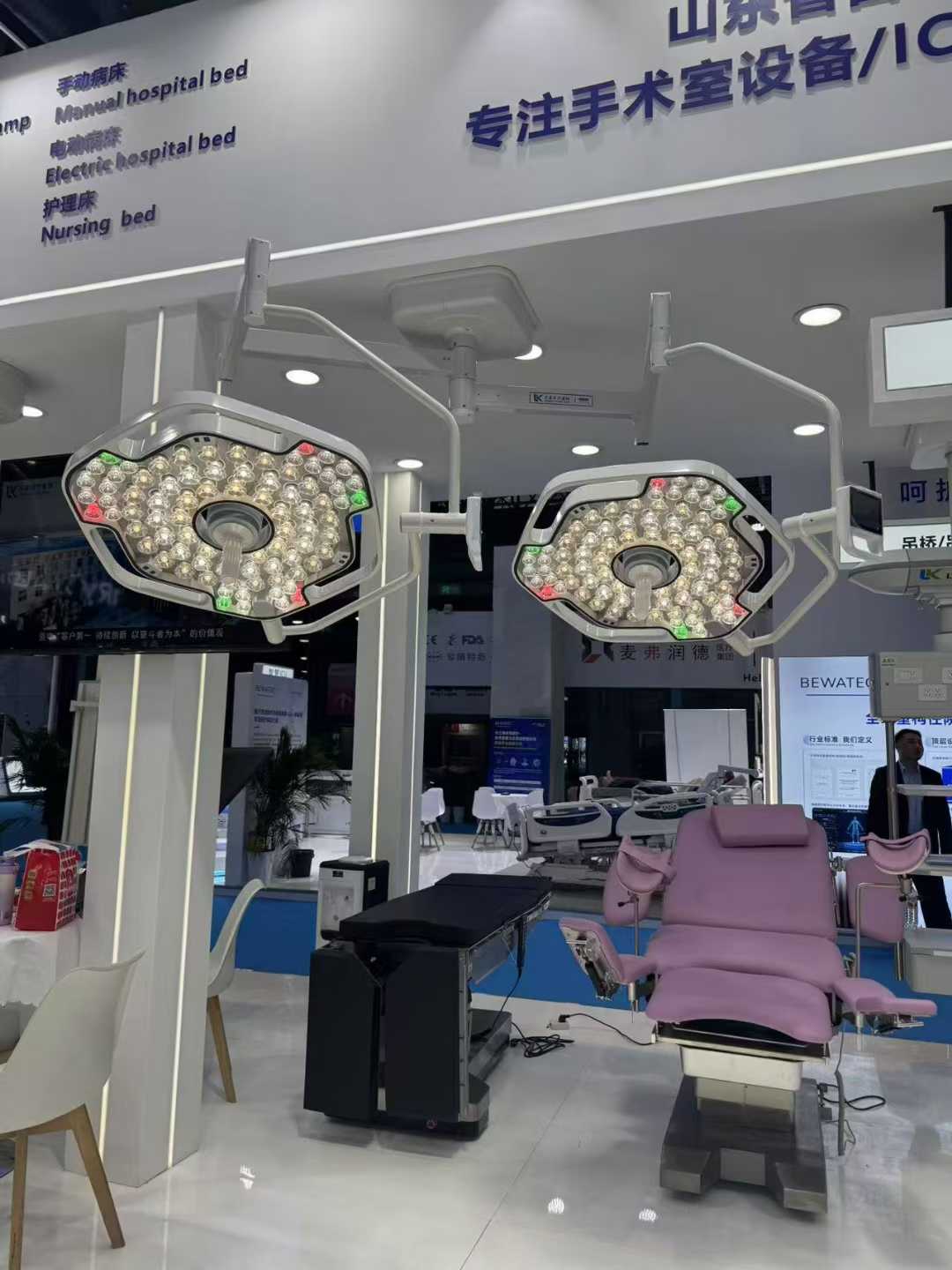

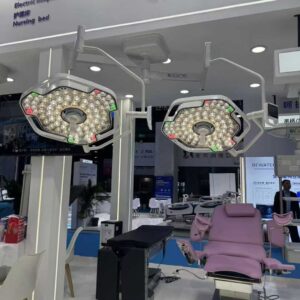

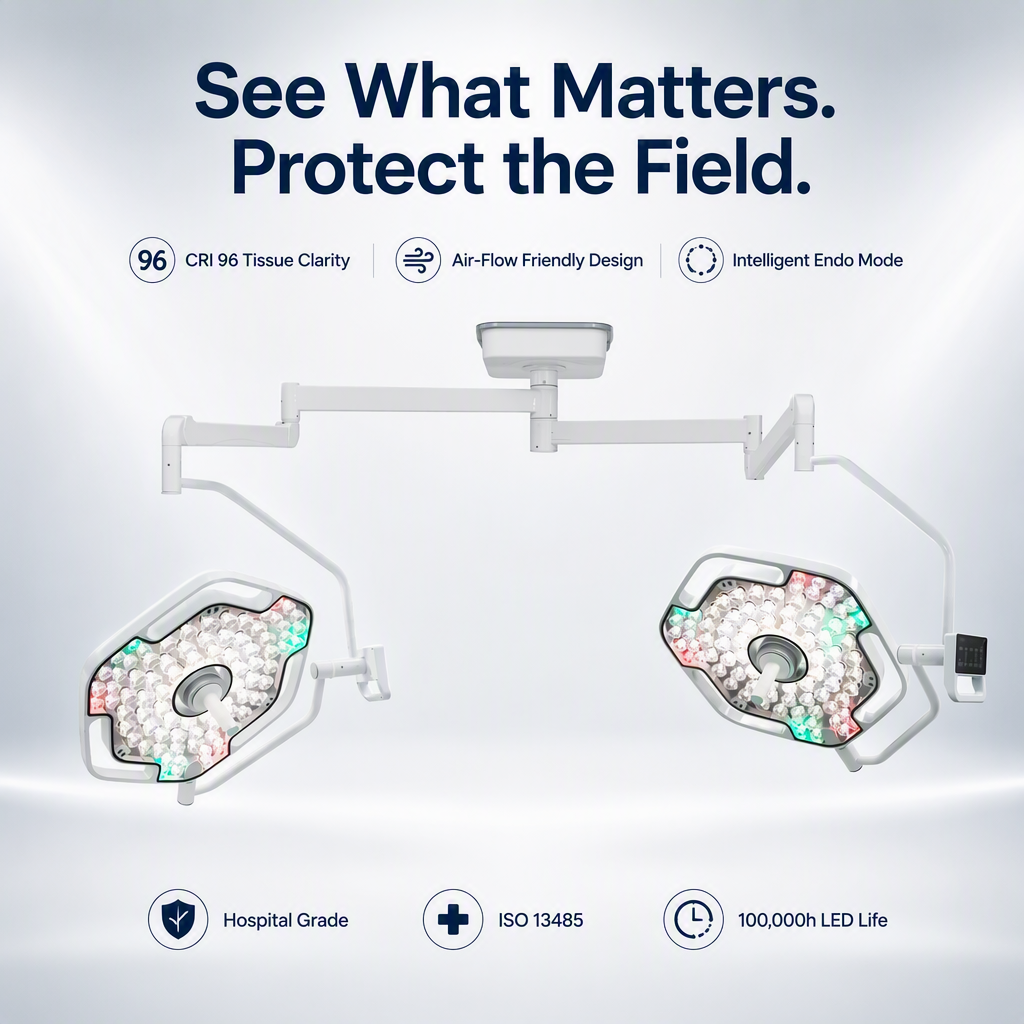

Dual-Head Ceiling Mounted LED Surgical Shadowless Light
Product Overview
Our Dual-Head LED Surgical Shadowless Light provides shadow-free illumination, accurate color rendering, and stable light output for modern hospital operating theaters. Designed with independent double-lamp heads, it offers high flexible adjustment to satisfy complex surgical procedures including general surgery, neurosurgery, and thoracic operations.

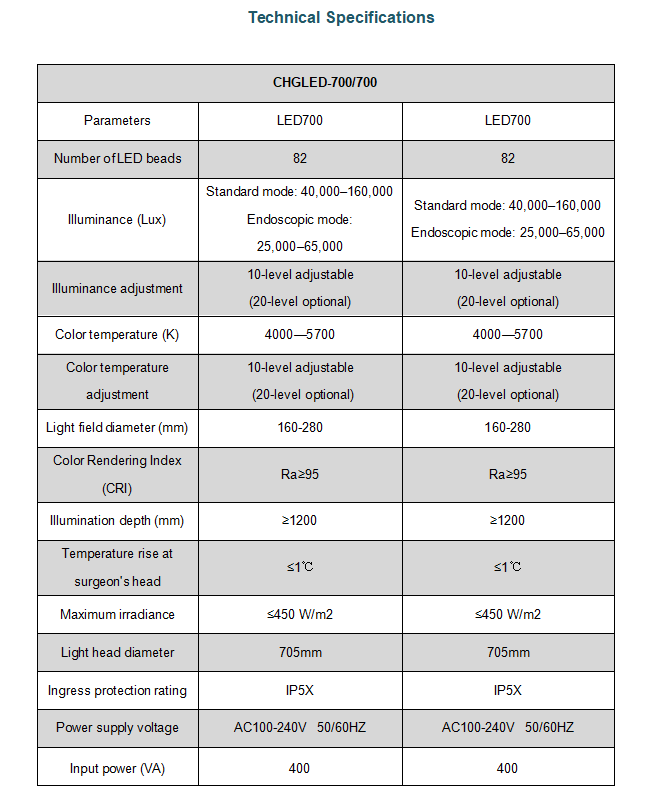

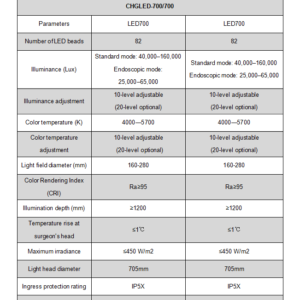

Technical Features
| Parameters | LED700 | LED700 |
| Number of LED beads | 82 | 82 |
| Illuminance (Lux) | Standard mode: 40,000–160,000
Endoscopic mode: 25,000–65,000 |
Standard mode: 40,000–160,000
Endoscopic mode: 25,000–65,000 |
| Illuminance adjustment | 10-level adjustable (20-level optional) |
10-level adjustable (20-level optional) |
| Color temperature (K) | 4000—5700 | 4000—5700 |
| Color temperature adjustment | 10-level adjustable (20-level optional) |
10-level adjustable (20-level optional) |
| Light field diameter (mm) | 160-280 | 160-280 |
| Color Rendering Index (CRI) | Ra≥95 | Ra≥95 |
| Illumination depth (mm) | ≥1200 | ≥1200 |
| Temperature rise at surgeon’s head | ≤1℃ | ≤1℃ |
| Maximum irradiance | ≤450 W/m2 | ≤450 W/m2 |
| Light head diameter | 705mm | 705mm |
| Ingress protection rating | IP5X | IP5X |
| Power supply voltage | AC100-240V 50/60HZ | AC100-240V 50/60HZ |
| Input power (VA) | 400 | 400 |
Core Value Proposition

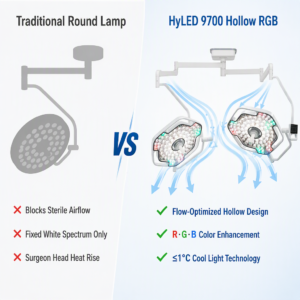

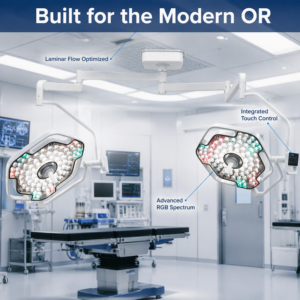

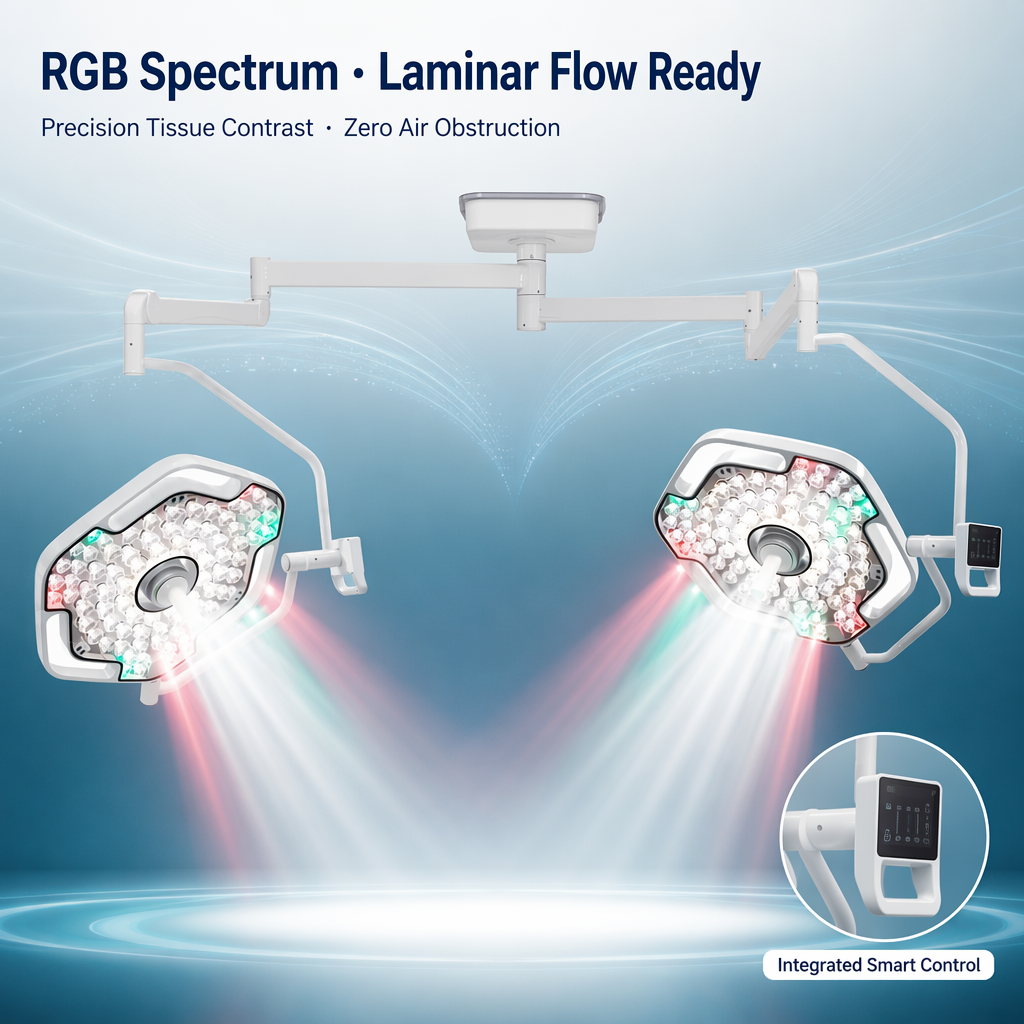

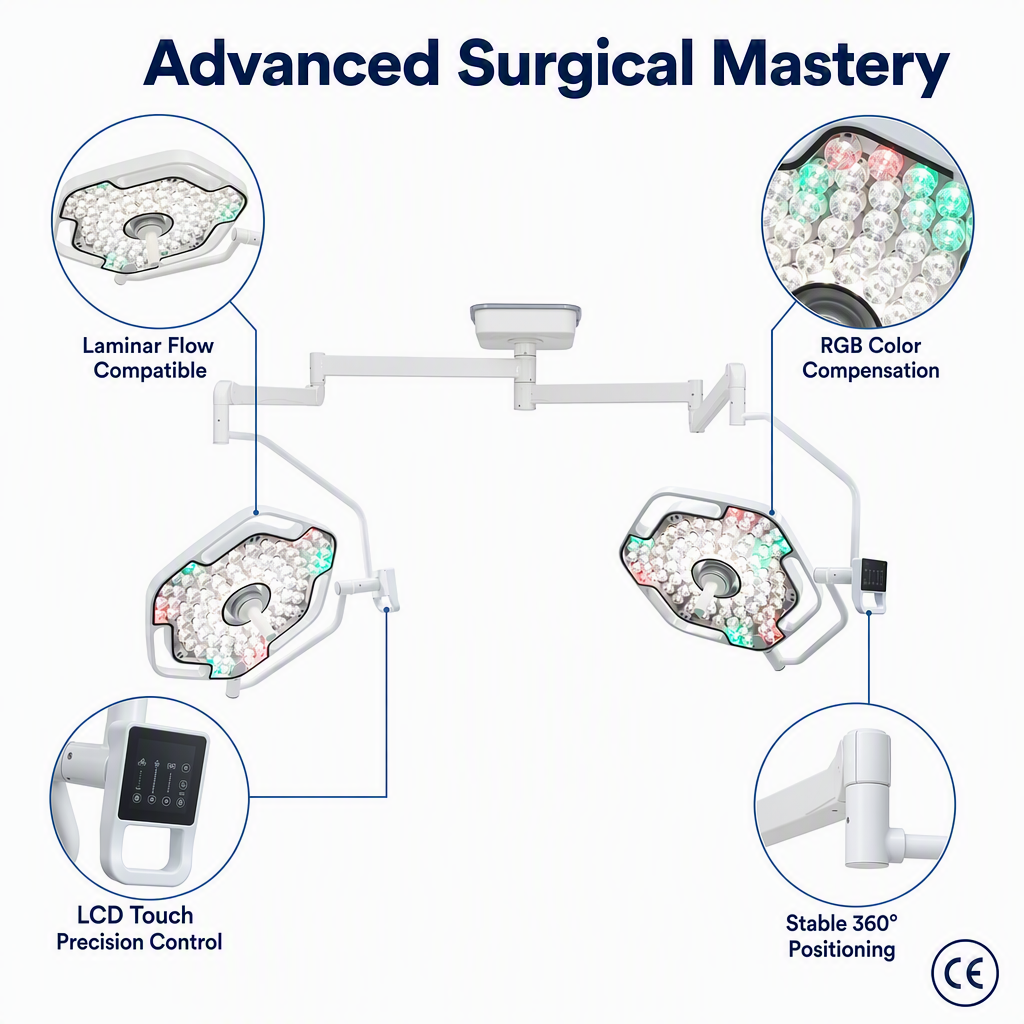

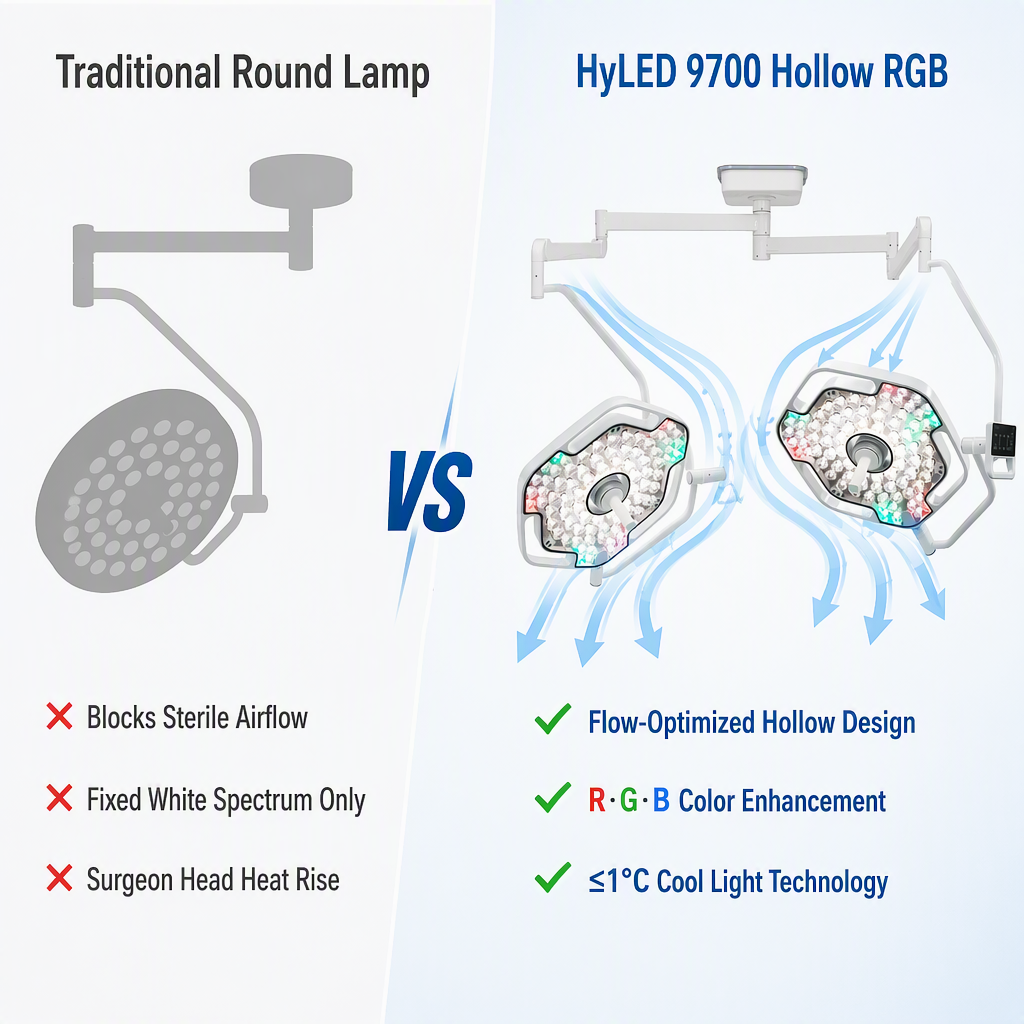

- Shadow-Free Laminar Flow Design: The multi-lens optical system forms overlapping light columns, effectively eliminating shadows cast by the surgeon’s head or instruments. The streamlined lamp head design minimizes turbulence under the laminar flow hood.
- True Color Tissue Recognition: A high color rendering index (Ra≥96) enables surgeons to accurately distinguish fine tissue structures and subtle differences in blood vessels under cool, glare-free conditions.
- Cool Light Output and Low Heat Generation: Ultra-low infrared radiation prevents tissue dehydration during prolonged surgeries and maintains a comfortable temperature in the surgical area. Flexible and Ergonomic Positioning: The German-designed balance arm allows for easy positioning, precise and drift-free stability, and 360-degree rotation.
Factory Advantages & Supply Chain Guarantee
-
Certified Quality Standards: Manufactured under strict ISO 13485 quality management systems; fully certified with CE and FDA for global regulatory compliance.
-
Direct Factory Export & OEM/ODM Support: Full customization available for logo branding, control interface, HD camera integration, and wall/ceiling mounting configurations.
-
Global Logistics & After-Sales: Standardized export packaging in reinforced wooden crates suitable for sea container loading. Backup modules and technical support provided.
💼 Why Partner with Us? (Serving Global B2B Distributors & Tender Projects)
As a robust, direct-selling medical device manufacturer, we provide tailored services for major international distributors, procurement networks, and hospital tender projects:
Factory-Direct Pricing: Eliminate intermediary markups to maximize your price competitiveness in tenders.
Global Supply Chain & Logistics: Flexible trade terms (FOB, CFR, CIF, DDP, etc.) to meet your specific logistical needs.
Comprehensive Certification Support: Every shipment includes full quality inspection documentation, warranty cards, and detailed operation manuals.
✉️ Get a Factory-Direct Wholesale Quote Today
Are you seeking highly competitive products for upcoming medical tenders or your distribution business? Contact our International Trade Department now to receive the latest wholesale quotes and customized configuration options!
