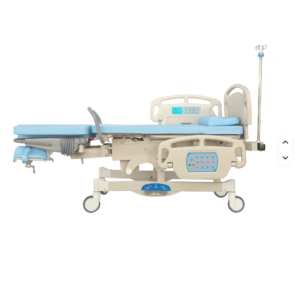

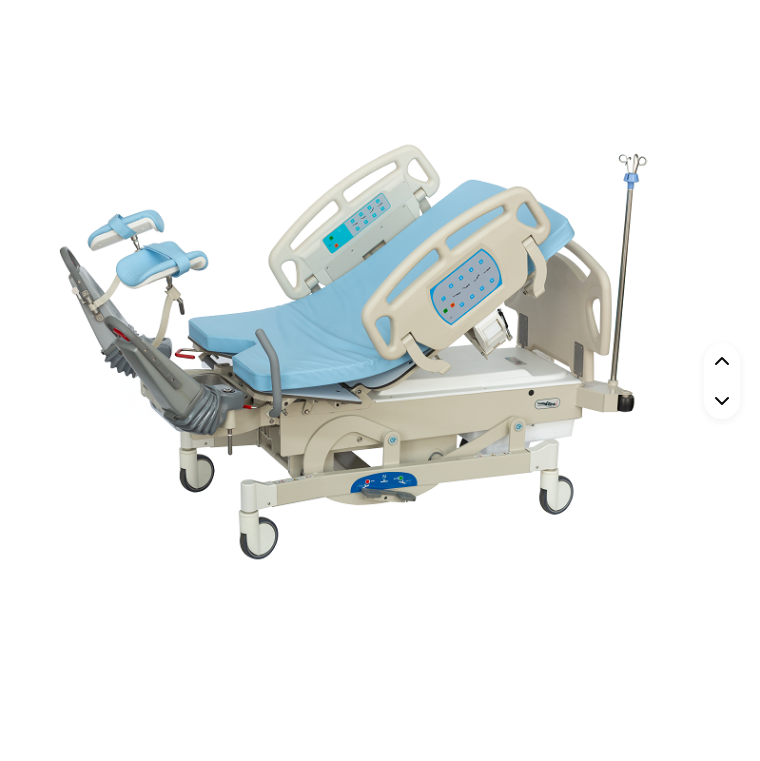

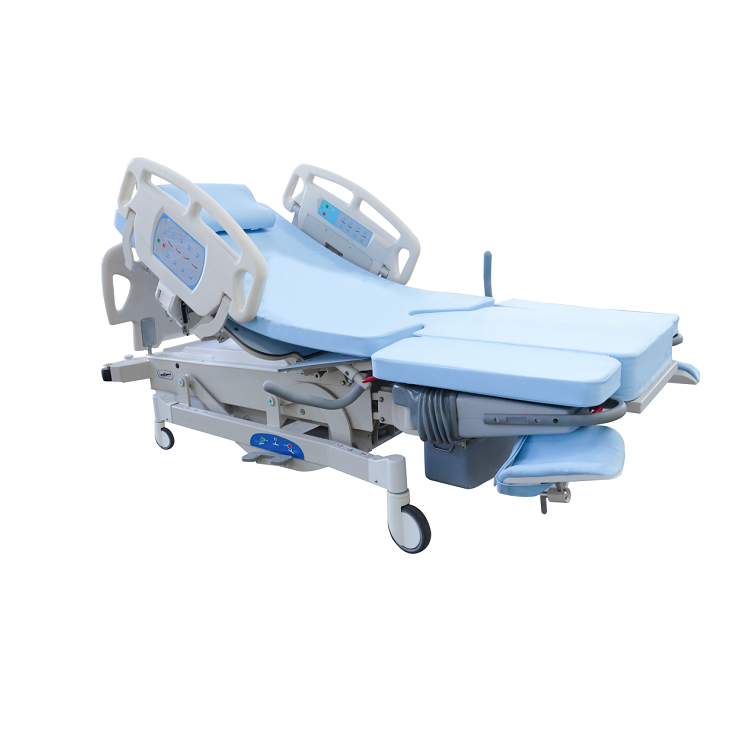

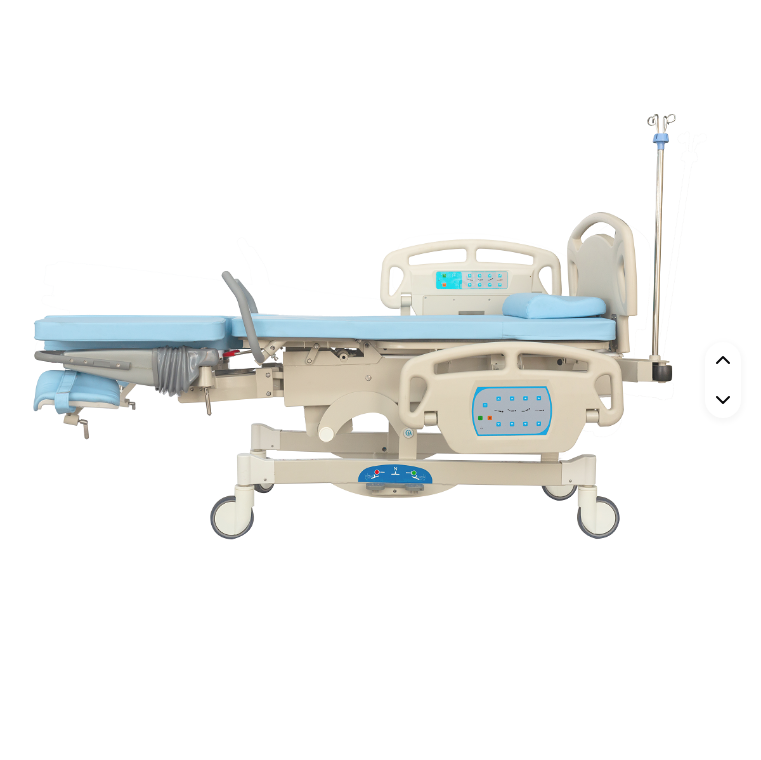

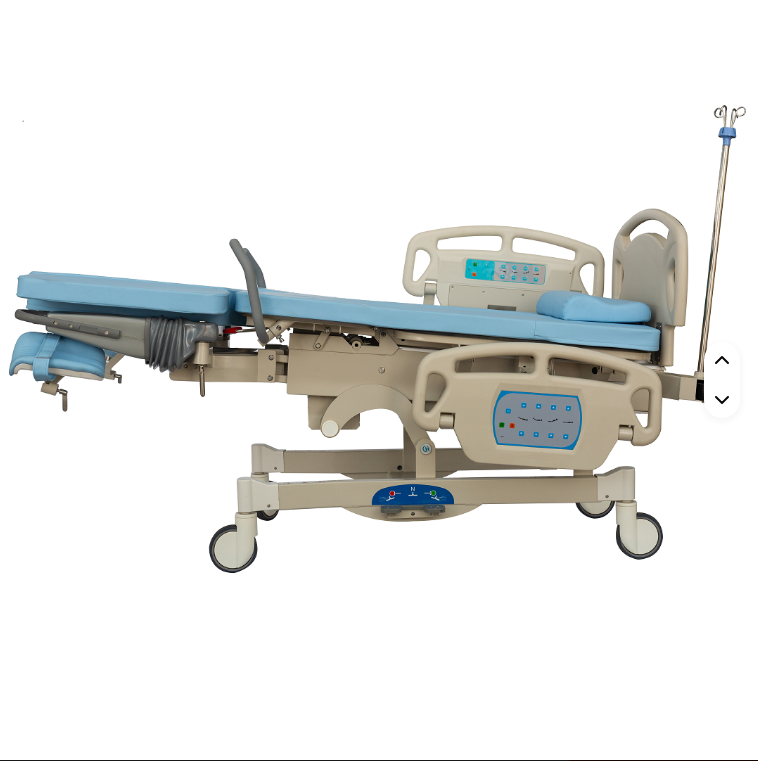

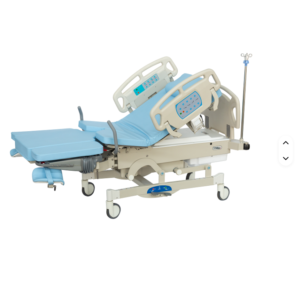

CH-T600 Integrated LDR Maternity Hospital Bed with LINAK 24V Electric Motor, Dual Side Control ABS Guardrail Emergency Backup Battery ISO CE Certified

Product Overview

Core Performance Advantages

1. Denmark LINAK Medical Linear Actuator

   Adopts original Denmark LINAK medical motor with safe DC24V low voltage design, no extra voltage stabilizer required. It delivers ultra-smooth, quiet and stable electric adjustment during all operations.

2. Full Electric Multi-Position Adjustment System

   Electric motor drives backrest, knee rest, overall bed lifting and Trendelenburg tilt. Control buttons are installed on both inner and outer sides of guardrails, also compatible with central nurse station unified control.

3. Split Lifting ABS Guardrails with Dual Control Buttons

   One-piece molded ABS guardrails with embedded control panels for both nurses and lying-in women to adjust bed posture conveniently. Built-in buffer structure ensures slow and steady descending. The top of guardrail is ergonomically curved as labor hand grips without needing storage under bed surface.

4. Detachable Blow-Molded ABS Headboard

   Removable blow molding plastic headboard with optional decorative stickers to create warm home-style ward atmosphere. Die-cast aluminum anti-collision corners are equipped with anti-shock wheels and IV stand jacks, replaceable individually.

5. Robust Composite Bed Frame Structure

   Base, frame and bed surface combine sprayed steel and high-quality polymer plastic accessories. Max safe static load reaches ≥225KG with solid stable structure.

6. Hidden Retractable Delivery Auxiliary Platform

   Hip section supports V-shaped or straight-edge mattress matching. One-step hidden retractable auxiliary tray with mechanical lock and large-capacity splash-proof waste basin for convenient delivery operation.

7. Adjustable Calf Supports & Footrests

   Independent control buttons for leg board lifting to adjust foot height with single hand. Left and right foot pedals can separately shift up, down, expand outward to fit various childbirth postures.

8. Antibacterial Seamless Memory Foam Mattress

   Double-layer leather mattress with antibacterial coating and seamless waterproof bonding. Filled with hollow memory cotton, soft, breathable, corrosion-resistant, odor-free and easy to wipe and disinfect.

9. Central Lock 150mm Double-Sided Silent Casters

   Hollow central braking design with four 150mm interlocked casters. Foot brake pedal locks the whole bed firmly at center position, flexible to move freely when unlocked.

10. 5-Level Dimmable Auto LED Night Light

    Built-in LED soft night lighting system with five brightness gears to satisfy low-light nursing demands at midnight without disturbing rest.

11. Emergency Backup Power Storage System

    High-performance rechargeable battery with multi-color power indicator, automatically switches power to maintain continuous bed functions during power outage.


Functional Technical Parameters

• Overall Dimension (with guardrails): L2250mm × W1030mm
• Bed Surface Length: 2030mm; Bed Surface Width: 870mm
• Bed Height Range (without mattress): Min 510±10mm – Max 910±10mm
• Backrest Upward Tilt: 0–65°±5°
• Seat Plate Upward Tilt: 0–16°±2°
• Overall Bed Trendelenburg Tilt: ≥8°±1°
• Footrest Lifting Stroke: 170±10mm
• Footrest Upward Folding Angle: ≥90°±5°
• Footrest Outward Swing Angle: ≥90°
• Guardrail Lifting Stroke: 390mm

Standard Configuration List (Single Set)

1. Complete bed main body ×1 set
2. ABS headboard ×1 pc
3. Dual side ABS guardrail set ×1 pair
4. Hidden leg supports & foot pedals ×1 pair
5. High-density memory foam mattress ×1 pc
6. Hidden labor assist hand grips ×1 pair
7. Rechargeable backup battery set ×1 set
8. Splash-proof waste basin ×1 pc
9. Retractable delivery auxiliary tray ×1 pc
10. Telescopic IV stand ×1 pc
11. Power supply cord ×1 pc
12. Central lock silent casters ×4 pcs

Optional Accessory

1. Built-in music playback system ×1 set
