Product Overview
Core Performance Advantages
- All-in-One Maternity Clinical Solution
Integrates functions of routine gynecological inspection, prenatal diagnosis, labor delivery and emergency cesarean surgery, an all-purpose obstetric table for comprehensive women’s medical treatment.
- Dual Optional Control Modes, Stable Low-Noise Operation
Supports optional hand controller or foot pedal controller for all electric movements. The whole machine runs with low noise and stable performance, bringing flexible and effortless operation for medical staff.

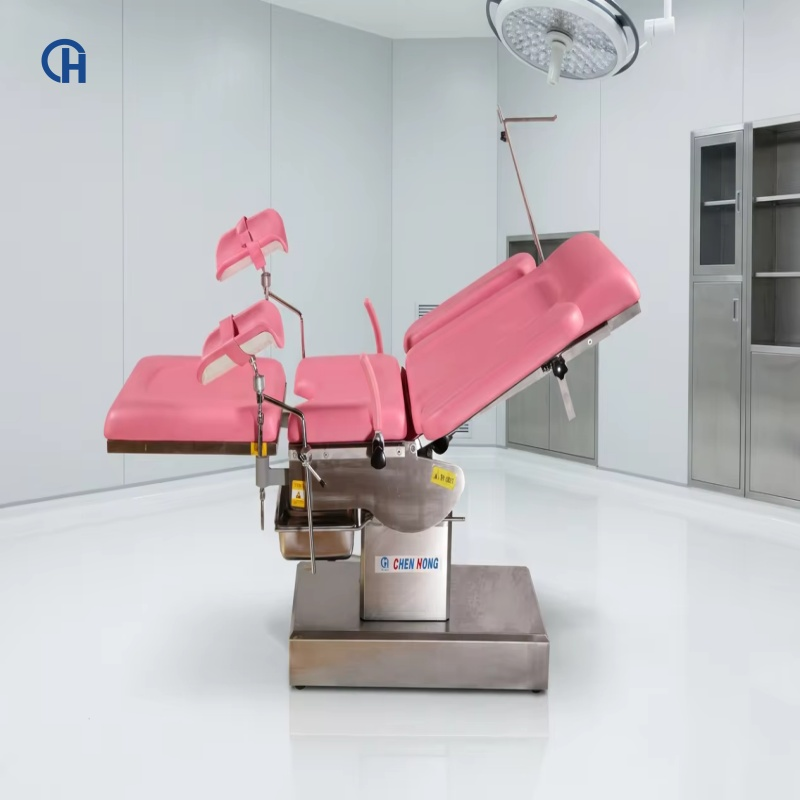

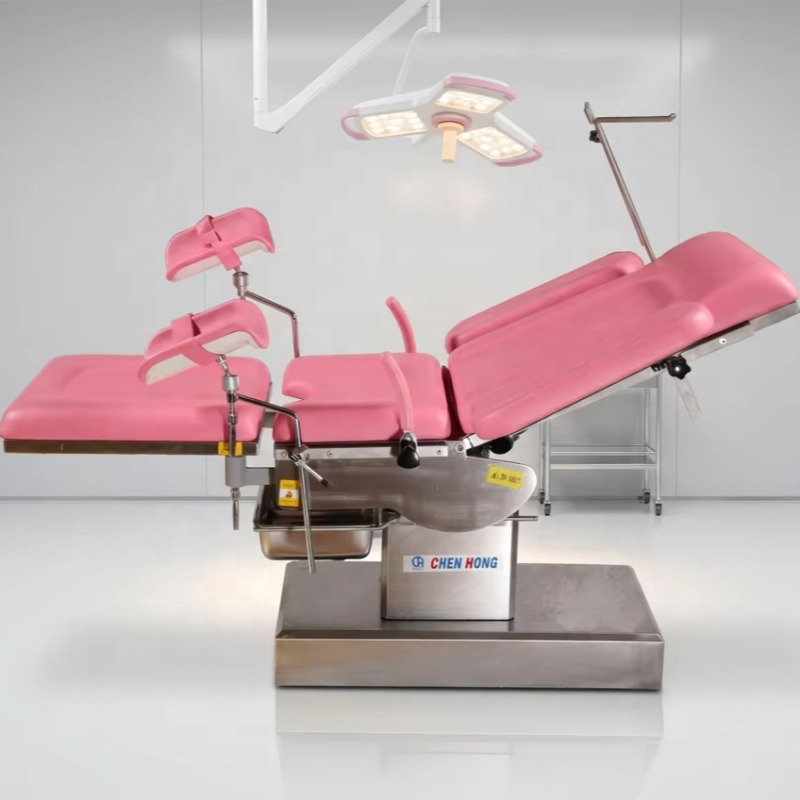

- Full Electric Multi-Angle Adjustment
Electric push rods drive the table’s lifting, forward/backward tilting and backrest folding. All angles can be adjusted freely with smooth, safe and reliable movement.

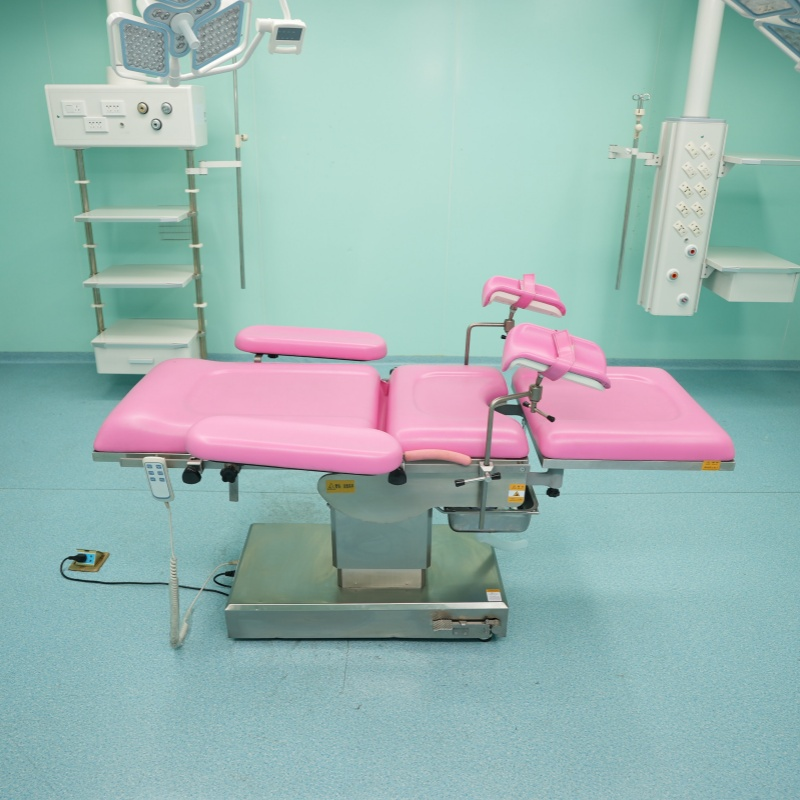

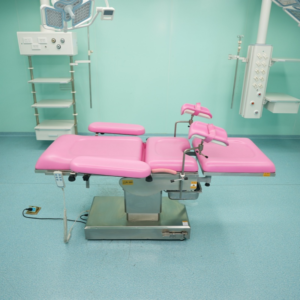

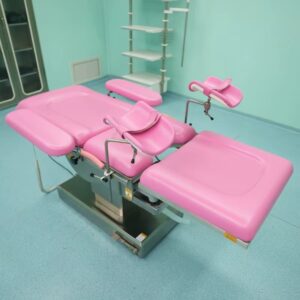

- Rotatable & Detachable Side-Expand Leg Supports
Main body made of premium stainless steel, beautiful and easy to clean & disinfect. The leg auxiliary platform adopts shaft rotation design that can expand 90° outwards and be fully disassembled for space-saving storage. Equipped with retractable stainless steel waste basin to prevent amniotic fluid splashing during delivery.
- 304 Stainless Steel Disinfection-Resistant Base
The whole base is constructed from medical grade 304 stainless steel, resistant to various disinfectants and easy to wipe clean, fully satisfying strict operating room post-surgery disinfection standards.
- Antibacterial Anti-Static Pressure-Relief Mattress
High-density sponge mattress evenly disperses patient body pressure to avoid postoperative pressure sores. Anti-static and antibacterial surface material complies with medical safety standards, resistant to repeated clinical disinfection and long service life.
- Ergonomic Streamlined Tabletop
Humanized curved table surface designed based on body engineering principle, novel appearance and superior patient comfort during long-time examination and labor.
- Mechanical Lock Brake Casters
Equipped with reliable mechanical brake system. The table can be moved freely and locked firmly at any position to guarantee safety during surgery and delivery.
Technical Parameters
- Model: CH-T600 Electric Side-Expand Gynecology Operating Table
- Tabletop Length: 1850±20mm
- Tabletop Width: 595±20mm
- Auxiliary Platform Size: 600*600mm
- Electric Height Range: Min 710±20mm ~ Max 930±20mm
- Forward Tilt (Electric): ≥20°
- Backward Tilt (Electric): ≥20°
- Backrest Upward Tilt (Electric): 75°
- Backrest Downward Tilt (Electric): 10°
- Leg Board Expansion: 90° outward rotatable & detachable
- Power Supply: AC 220V 50Hz
- Rated Load Capacity: 180KG
Standard Configuration List (Single Unit)
- Operating Table Main Body ×1 set
- Sponge Mattress ×1 set
- Electric Push Rods ×3 sets
- Arm Rest Boards ×2 pcs
- Leg Support Frames ×2 pcs
- Retractable Stainless Waste Basin ×1 pc
- Handheld Controller ×1 pc
- Power Cord ×1 pc
- Anesthesia Screen Frame ×1 set
- Delivery Hand Grips ×2 pcs
- Product Qualification Certificate & Warranty Card ×1 set
- User Operation Manual ×1 set
