CH-T500 Electric Ophthalmic Operating Table (Eye Surgery Specific)
-
Ultra-Low Elevation: Minimum height of 560mm for optimal seated position during eye surgery.
-
Surgeon Comfort: Ergonomic surgeon armrests reduce wrist fatigue in lengthy operations.
-
Durable Construction: Premium 304 stainless steel base cover, column, and outer casing.
-

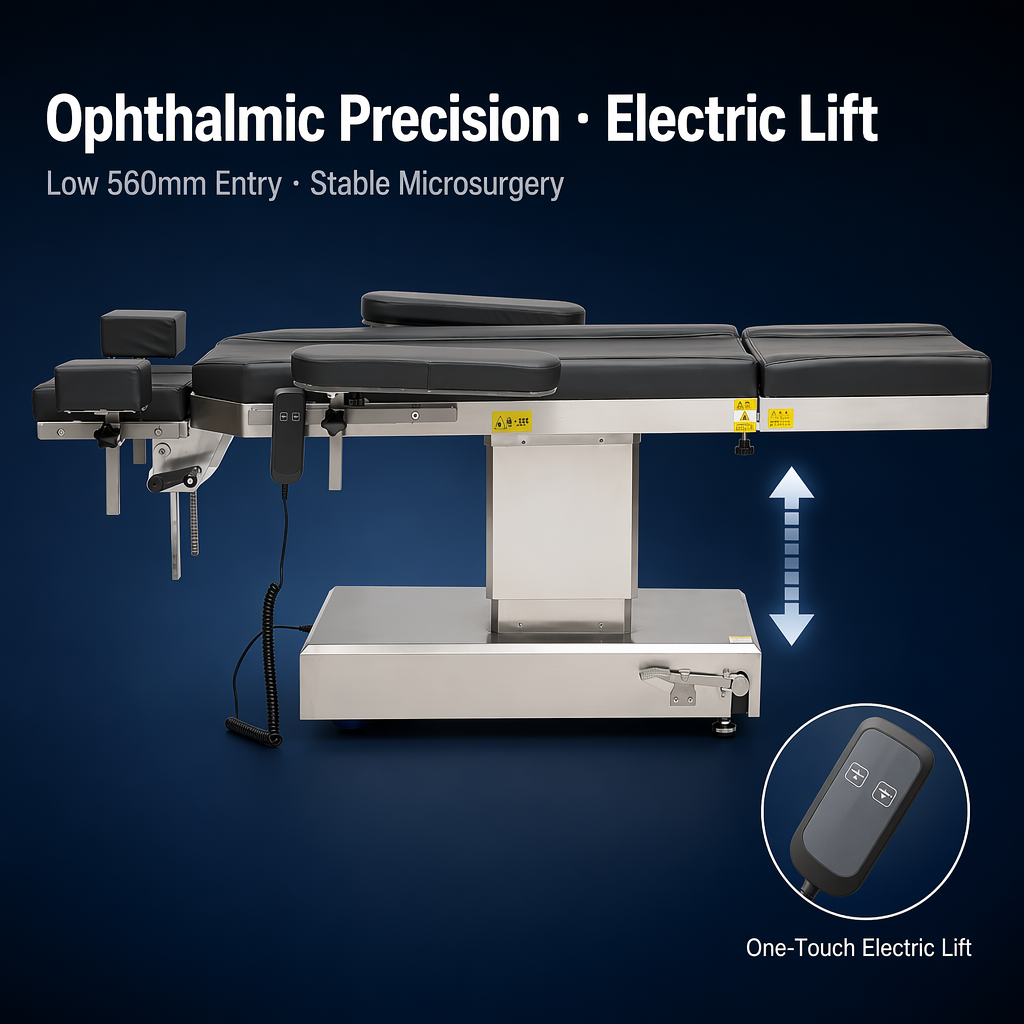

Smooth Control: Electric motorized height adjustment via silent handheld controller.
-
Uninterrupted Power: Optional backup battery ensures continuous operation during power outages.
-
Global Supply: CE/ISO certified, manufactured by Chenhong Medical (OEM/ODM direct).

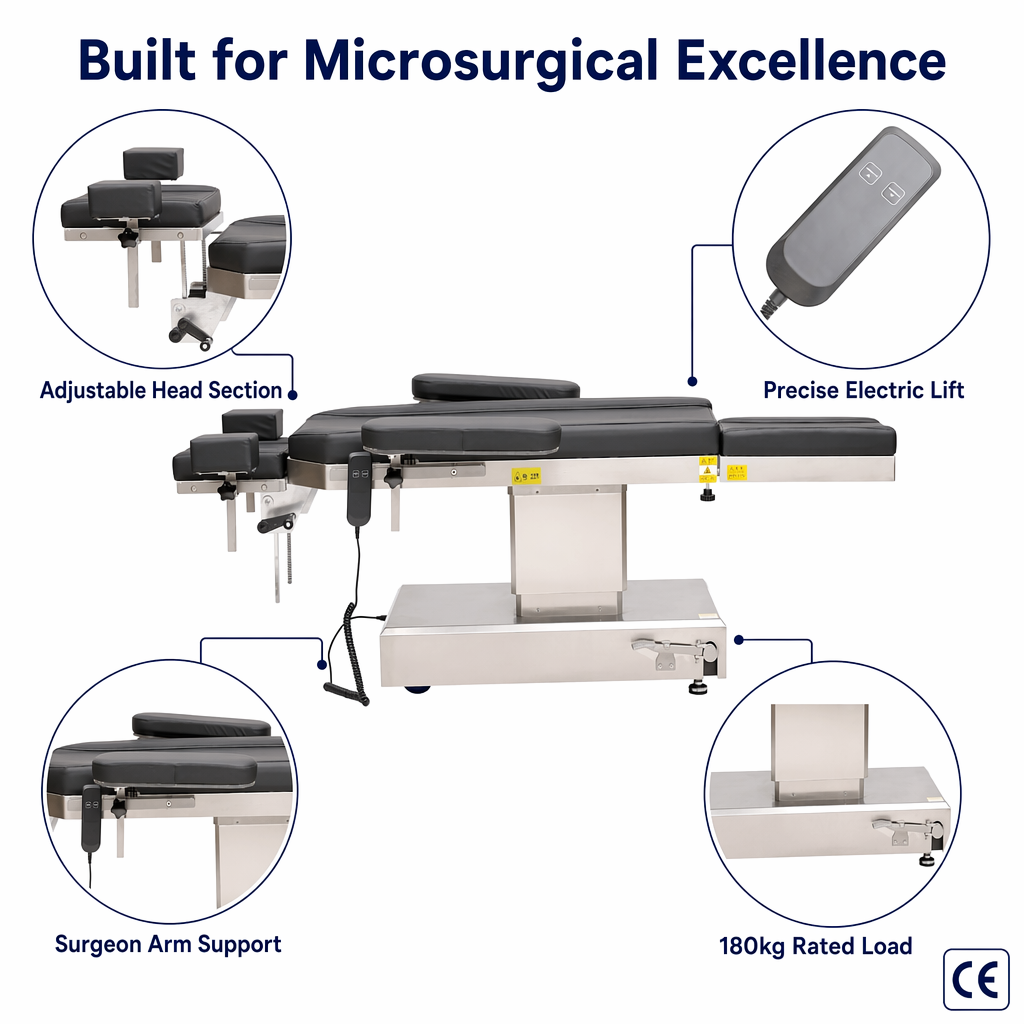

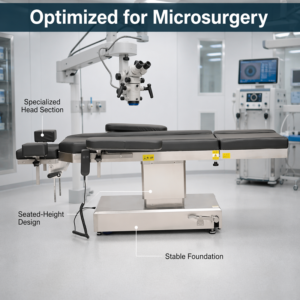

1. Ultra-Low Position & Ergonomic Doctor Armrest
Specially engineered for ophthalmology requirements, the CH-T500 offers an ultra-low minimum height of 560mm. This allows surgeons to operate comfortably from a seated position. Adjustable doctor armrests provide vital arm support, minimizing physical fatigue during delicate and prolonged micro-surgeries.

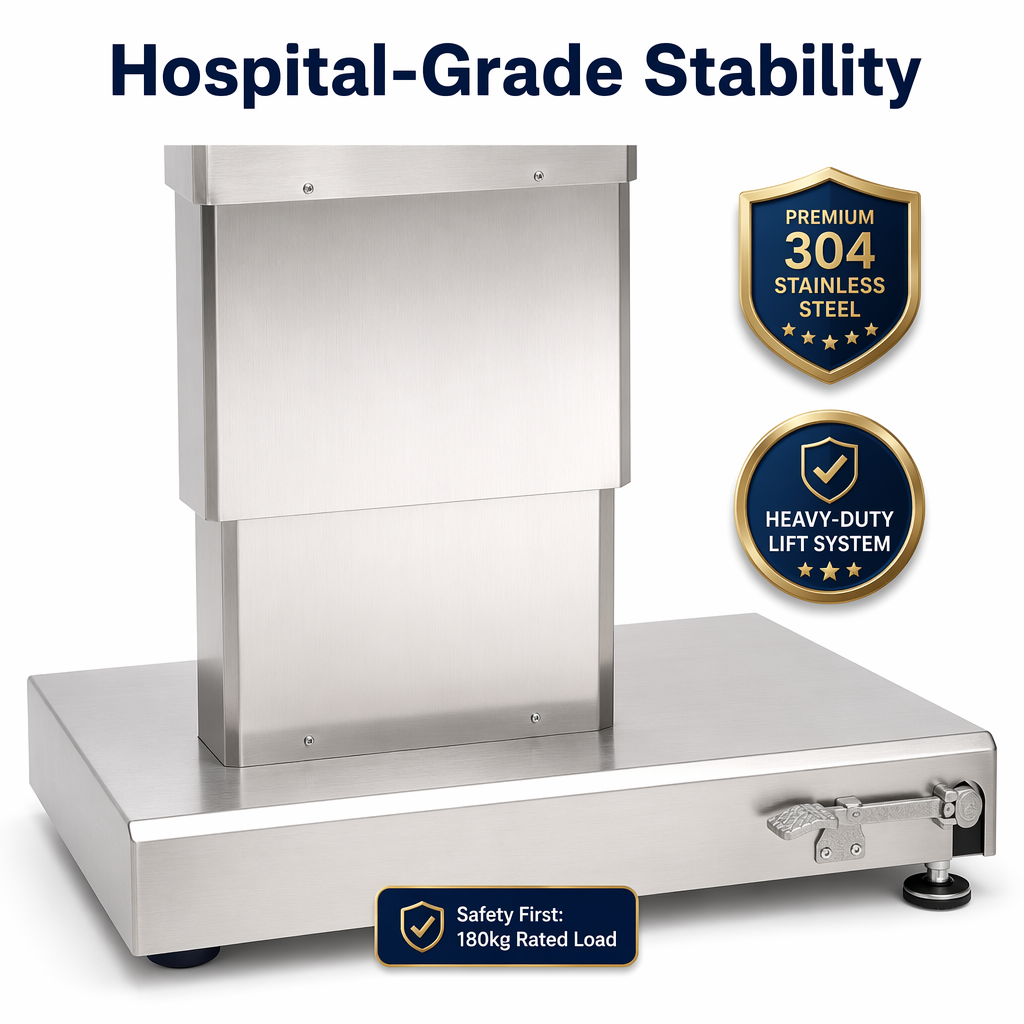

2. Robust 304 Stainless Steel Frame & Anti-Static Mattress
The table structure combines a high-strength carbon steel frame with 304 stainless steel outer covers, lifting columns, and base. It features a seamless, anti-static foam mattress designed for easy disinfection and even patient weight distribution to prevent pressure sores.
3. Dual Base Operations: Flexible Mobility & Absolute Stability
Equipped with smooth-rolling castors and a foot-operated brake/release mechanism, the base smoothly transitions between stationary locking and effortless repositioning. The detachable leg section adds further flexibility for various surgical setups.

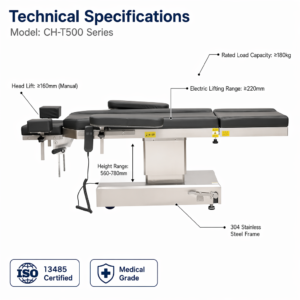

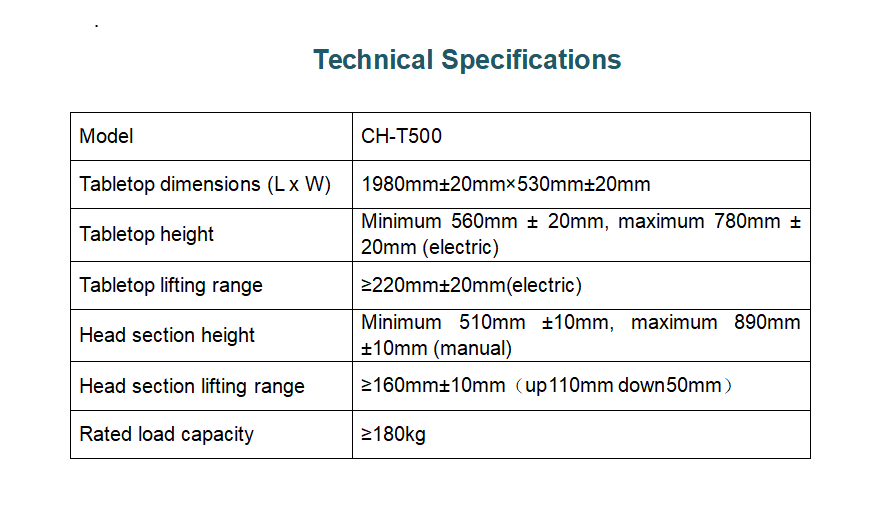

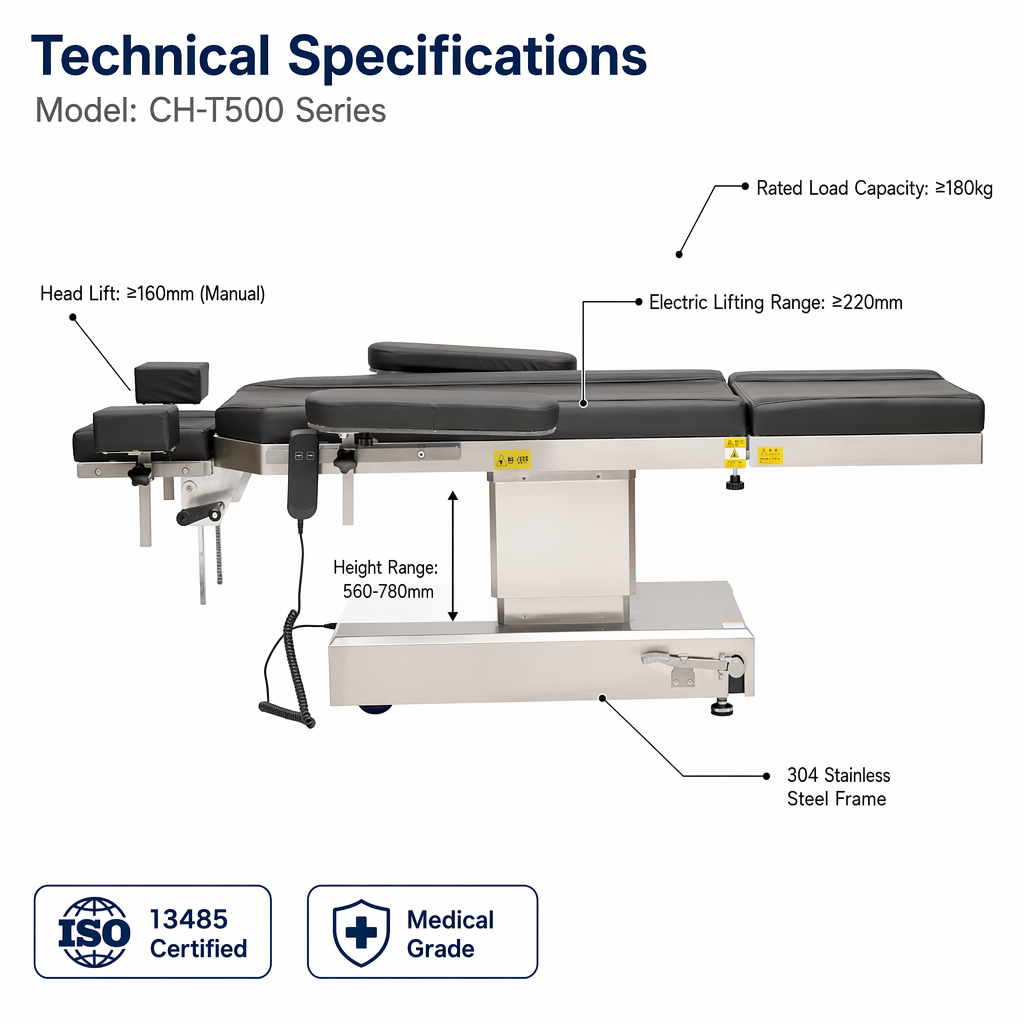

| Model | CH-T500 |
| Tabletop dimensions (L x W) | 1980mm±20mm×530mm±20mm |
| Tabletop height | Minimum 560mm ± 20mm, maximum 780mm ± 20mm (electric) |
| Tabletop lifting range | ≥220mm±20mm(electric) |
| Head section height | Minimum 510mm ±10mm, maximum 890mm ±10mm (manual) |
| Head section lifting range | ≥160mm±10mm（up110mm down50mm） |
| Rated load capacity | ≥180kg |
FAQ

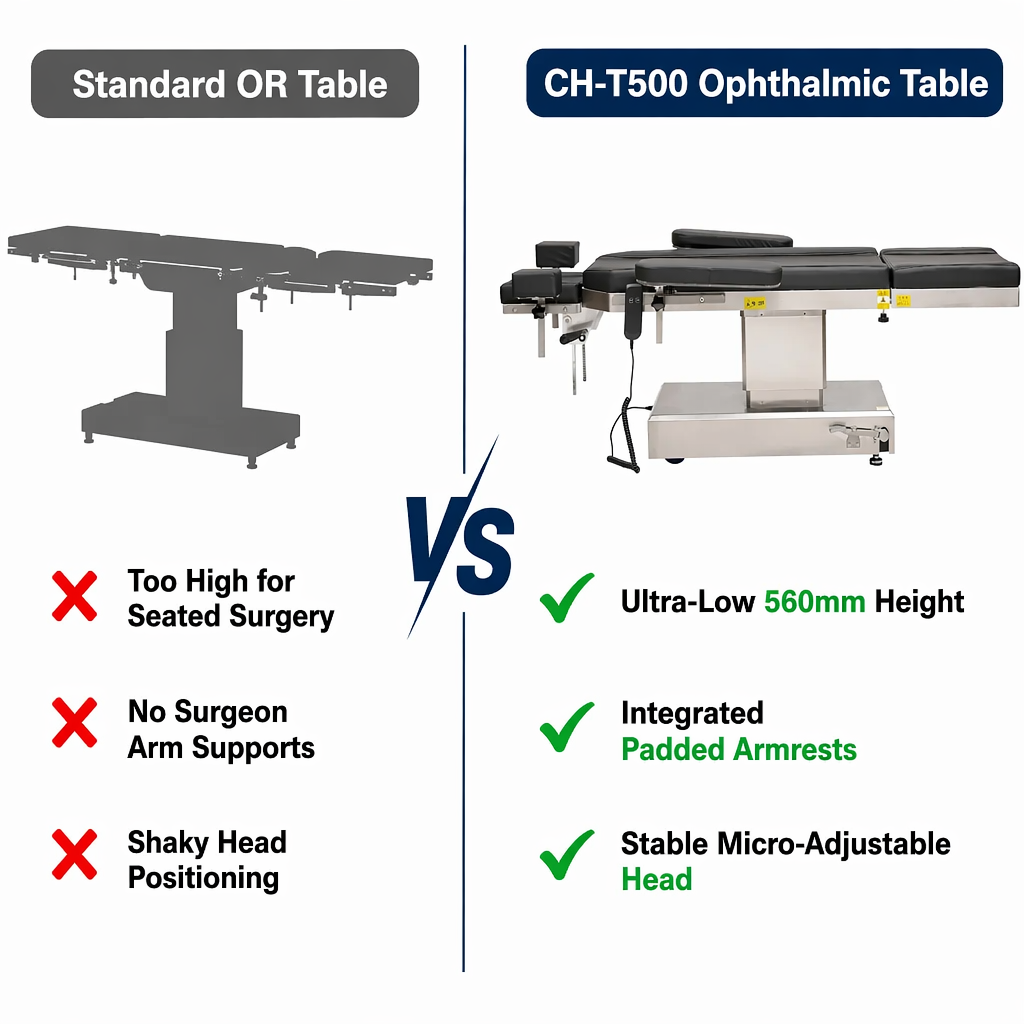

Q1: Why is the 560mm ultra-low height important for an ophthalmic operating table?
A: Ophthalmic surgery requires extreme precision, often performed while the surgeon is seated. A minimum height of 560mm allows the doctor to adjust their seating position comfortably, reducing strain and improving hand stability under the surgical microscope.
Q2: What materials are used in the construction of the CH-T500 operating table?
A: The main load-bearing frame is made of heavy-duty carbon steel, while the outer casing, lifting column, and base cover are built from high-grade 304 stainless steel. This guarantees corrosion resistance, easy sterilization, and long-term durability.
Q3: Can Chenhong Medical accommodate OEM/ODM orders for hospital distributors?
A: Yes, as an original medical equipment manufacturer, Chenhong Medical offers full OEM/ODM customization, including custom branding, tailored accessories, and private label packaging for international distributors and hospital tenders.
