CH-T500 Electric Ophthalmic Operating Table with Motorized Backrest, Low Minimum Height 560mm Eye Surgery Table ISO & CE Certified for Ophthalmology Clinics

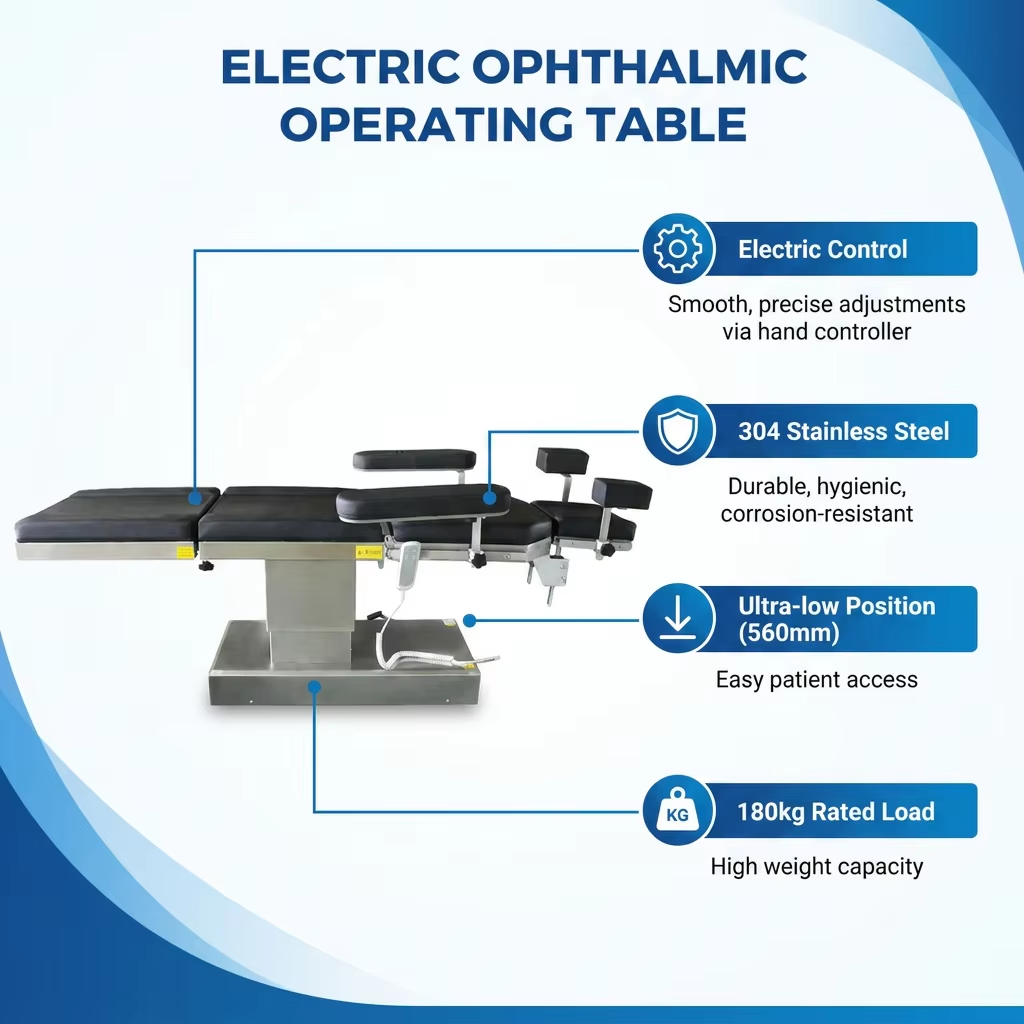

Product Overview

Core Performance Advantages

1. Ultra-Low Minimum Height for Seated Ophthalmic Surgery

   The table can be lowered to a minimum height of 560mm, perfectly matching doctors’ seated operation posture. Equipped with dedicated hand supports to ease arm fatigue during long eye procedures.

2. Low-Noise Electric Lifting & Backrest Adjustment

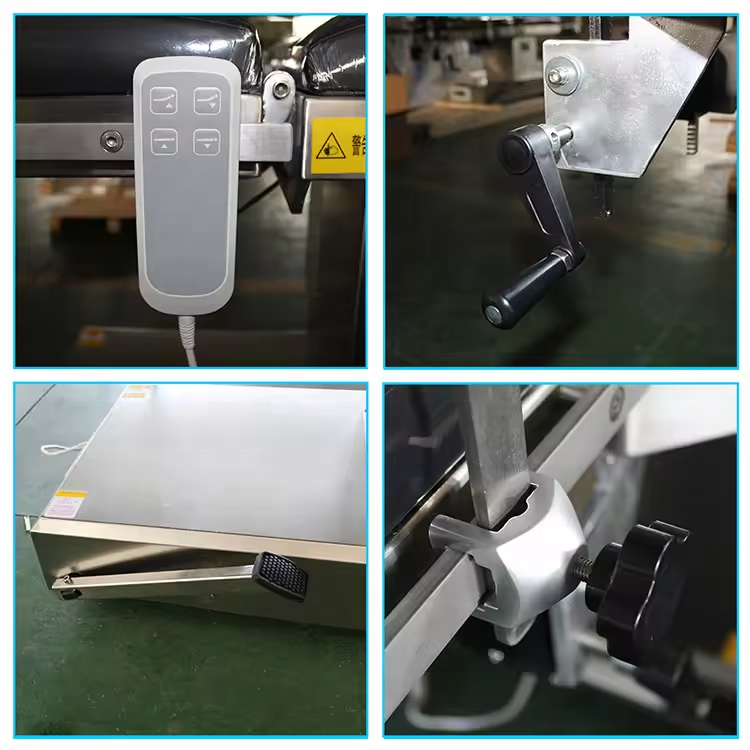

   Table height adjustment and backboard folding are driven by electric push rods, featuring stable operation, low noise, high reliability and simple one-hand control via handheld controller.

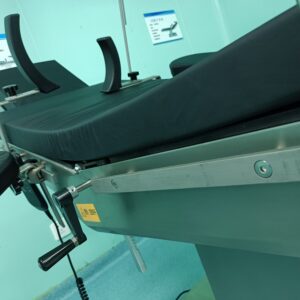

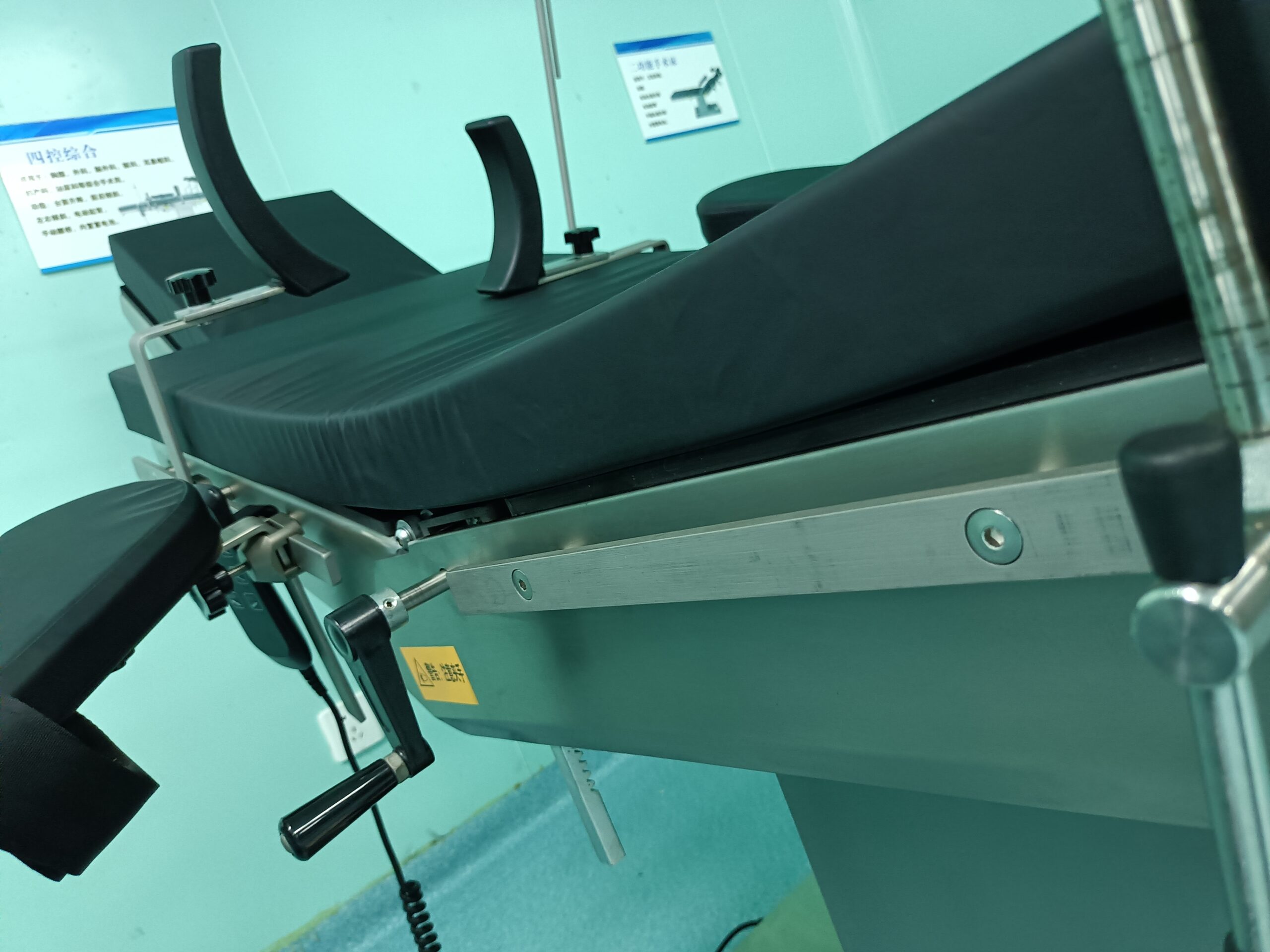

3. Manually Adjustable Head Board & Detachable Leg Board

   The head board supports manual lifting and lowering for flexible patient head positioning; leg boards are fully detachable to expand operating space for ophthalmic treatment.

4. Carbon Steel Frame with 304 Stainless Steel Outer Covers

   Main frame adopts high-quality carbon steel for solid load-bearing capacity. Outer protective covers and lifting housings are made of medical 304 stainless steel, corrosion-resistant, easy to wipe and disinfect for long-term use.

5. Smooth & Stable Lifting Mechanism

   Scientific mechanical structure delivers steady lifting movement, strong load capacity and ultra-low running noise without shaking during surgery.

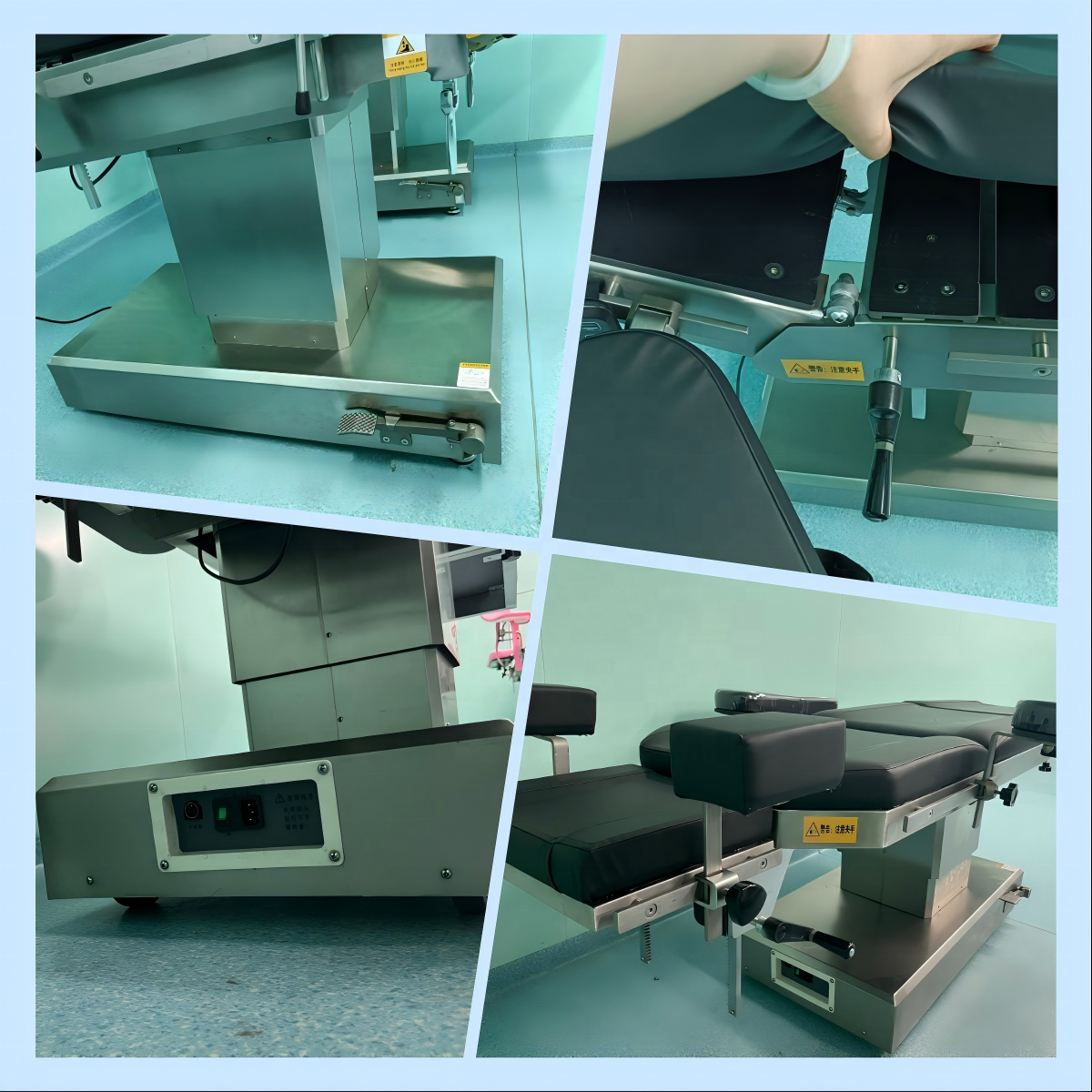

6. Stable Base with Mobile Casters

   Optimized wide chassis design guarantees excellent overall stability. Silent casters fitted at the bottom support flexible moving and fixed placement as required.

7. Antibacterial Anti-Static Pressure-Relief Mattress

   High-density sponge mattress disperses body pressure evenly to prevent postoperative pressure sores. Anti-static, antibacterial and easy-to-clean surface meets strict operating room disinfection standards, durable for repeated clinical sterilization.

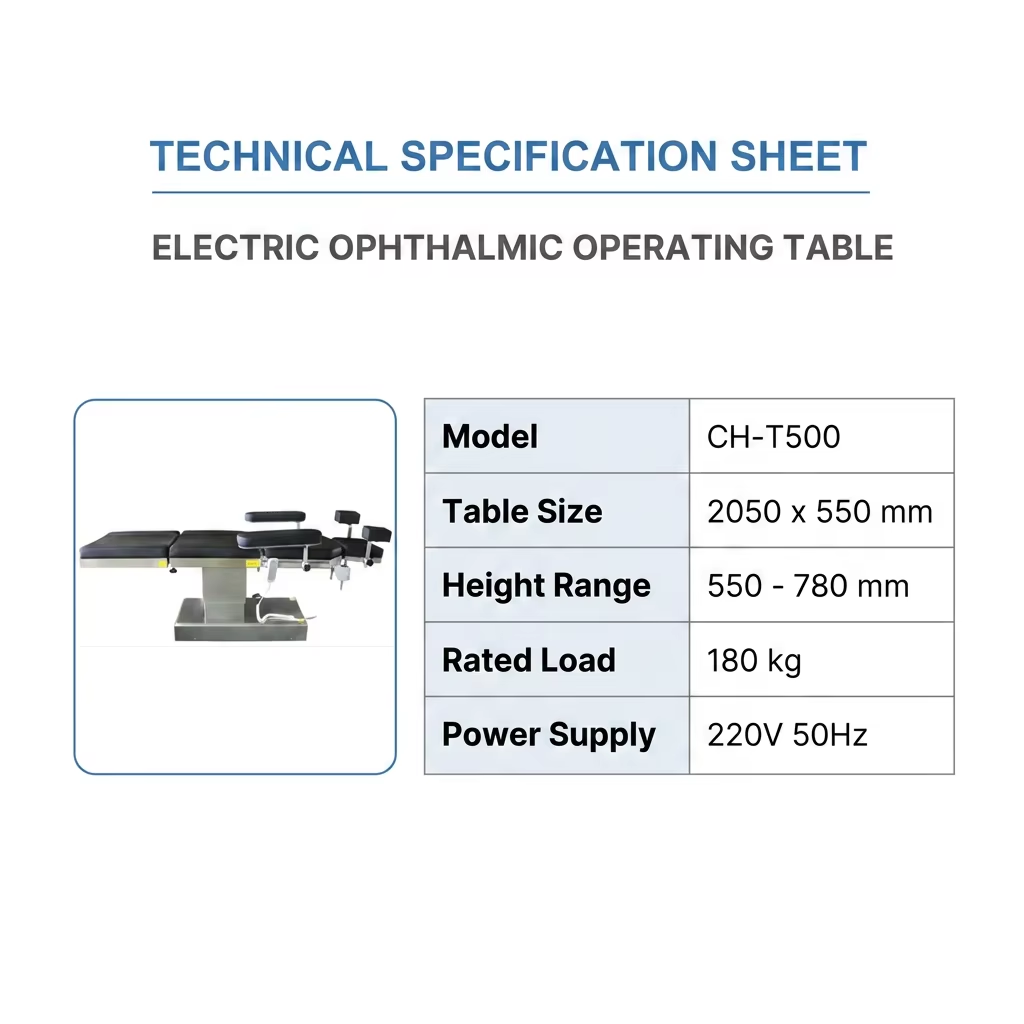

Technical Parameters

• Model: CH-T500 Electric Ophthalmic Operating Table (Motorized Backrest)

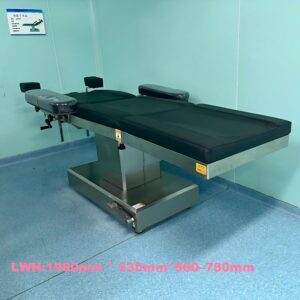

• Tabletop Dimension: 2050(±20)mm × 550(±20)mm
• Electric Height Range: Min 560(±20)mm – Max 780(±20)mm
• Electric Backrest Angle: Upward tilt ≥75°, Downward tilt ≥10°
• Manual Head Board Stroke: Rise 110(±10)mm, Drop 50(±10)mm
• Power Supply: AC 220V 50Hz
• Rated Load Capacity: 180kg


Standard Configuration List (Single Unit)

1. Operating Table Main Body ×1 set, Brand: Chenhong
2. Antibacterial Sponge Mattress ×1 set, Brand: Chenhong
3. Electric Push Rod ×1 set, Domestic Brand
4. Manual Crank ×1 pc, Brand: Chenhong
5. Handheld Controller ×1 pc, Brand: Chenhong
6. Doctor’s Hand Rest & Head Support Assembly ×1 set, Brand: Chenhong
7. Patient Arm Support Frame ×1 set, Brand: Chenhong
8. Power Cord ×1 pc, Domestic Brand
9. Product Qualification Certificate & Warranty Card ×1 set, Brand: Chenhong
10. User Operation Manual ×1 set, Brand: Chenhong

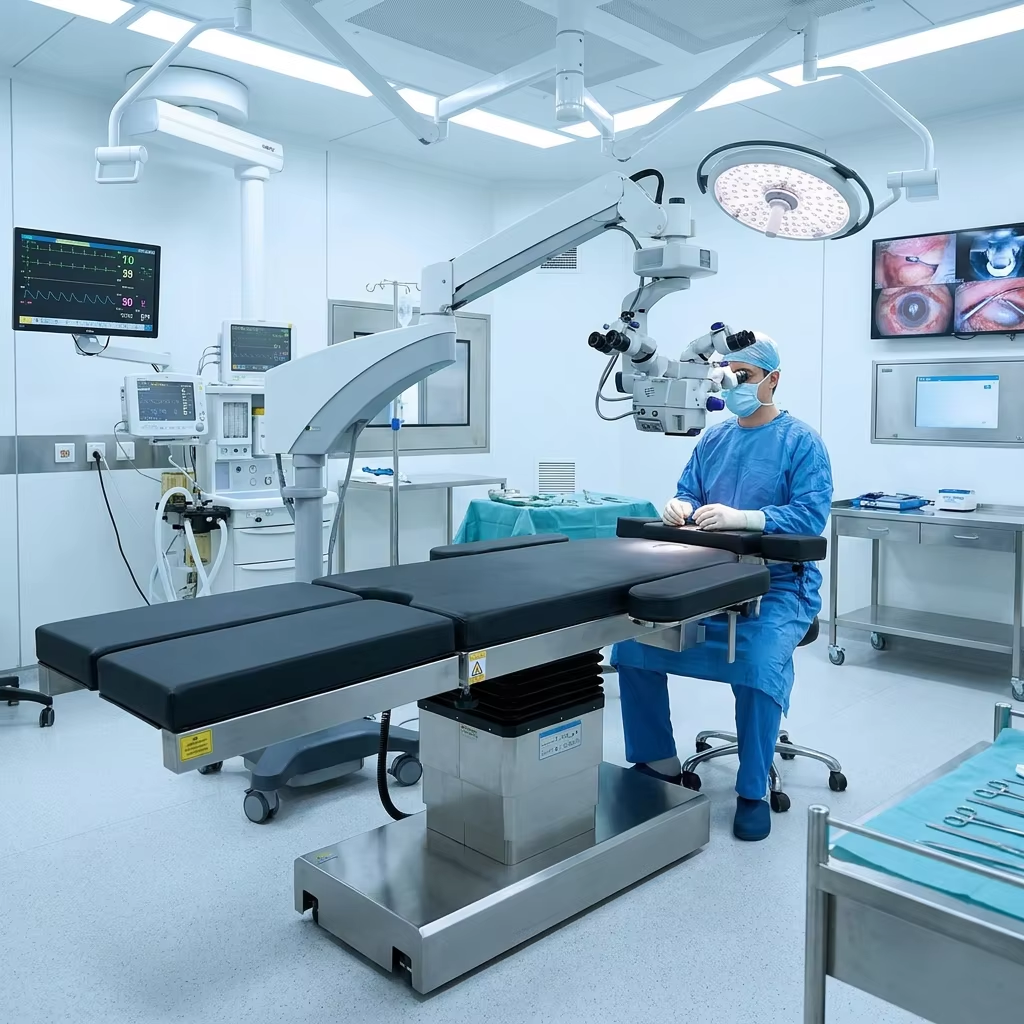

Application Scenarios
