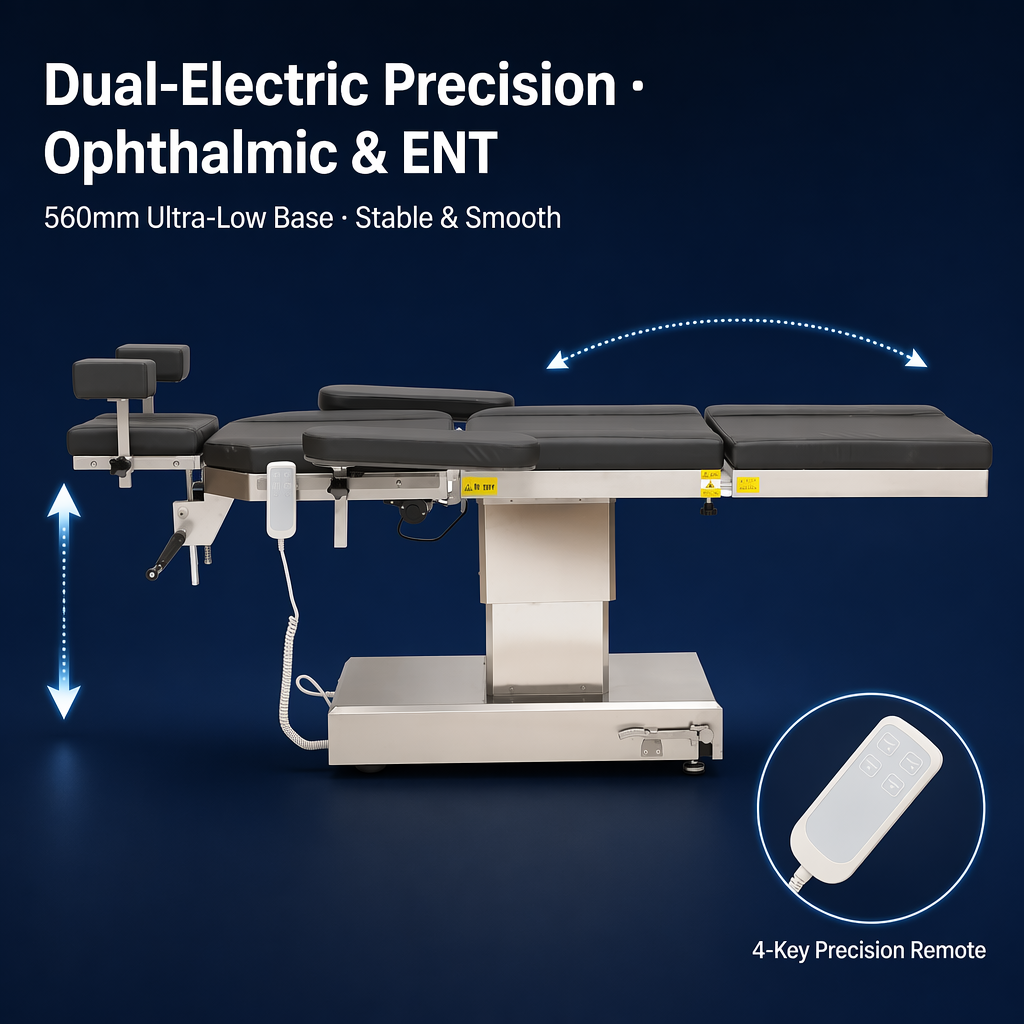

CH-T500 Dual Function Electric Operating Table (Multi-Purpose / Ophthalmology)
-
Dual Motorized Precision: Powered height adjustment (560-780mm) and electric backrest tilting (up ≥75°, down≥ 10°).
-
Ultra-Low Position: Minimum height of 560mm supports seated microscopic surgeries.
-
Surgeon Support: Ergonomic armrests effectively relieve arm fatigue during extended procedures.
-
Heavy-Duty Construction: High-strength carbon steel frame enclosed in durable 304 stainless steel covers and column.
-
Patient Safety & Comfort: Anti-static, pressure-relieving foam mattress designed for easy sterilization.
-
Emergency Backup: Optional built-in rechargeable battery maintains functionality during power outages.

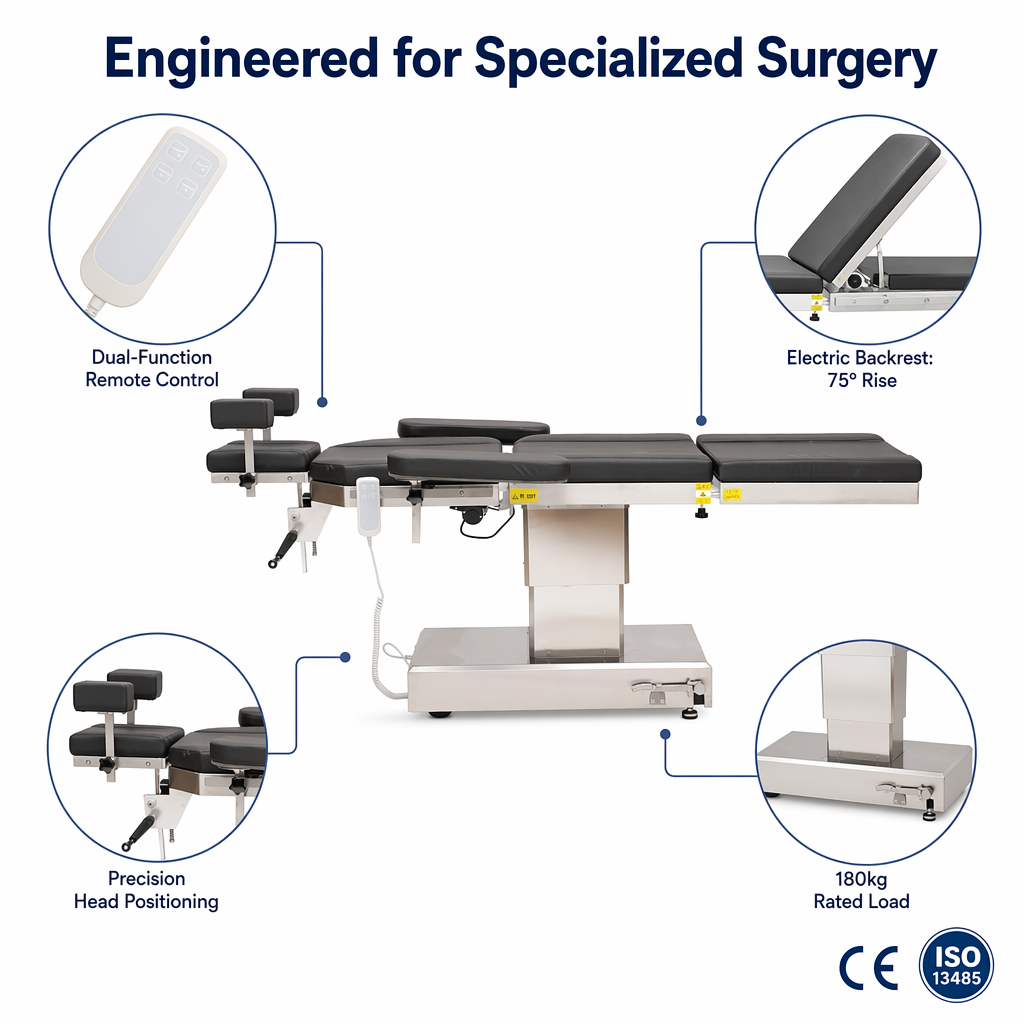

1. Dual Function Motor System for Effortless Adjustments
Equipped with a dual-motor mechanism, the CH-T500 allows surgeons and OT nurses to smoothly control both table elevation and backrest angles via an intuitive handheld controller. The back panel tilts upward ≥ 75° and downward ≥ 10°, accommodating various patient positioning requirements with maximum precision.

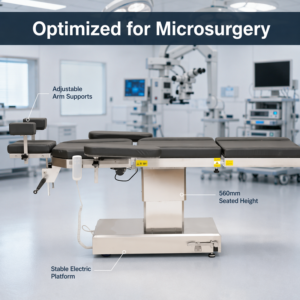

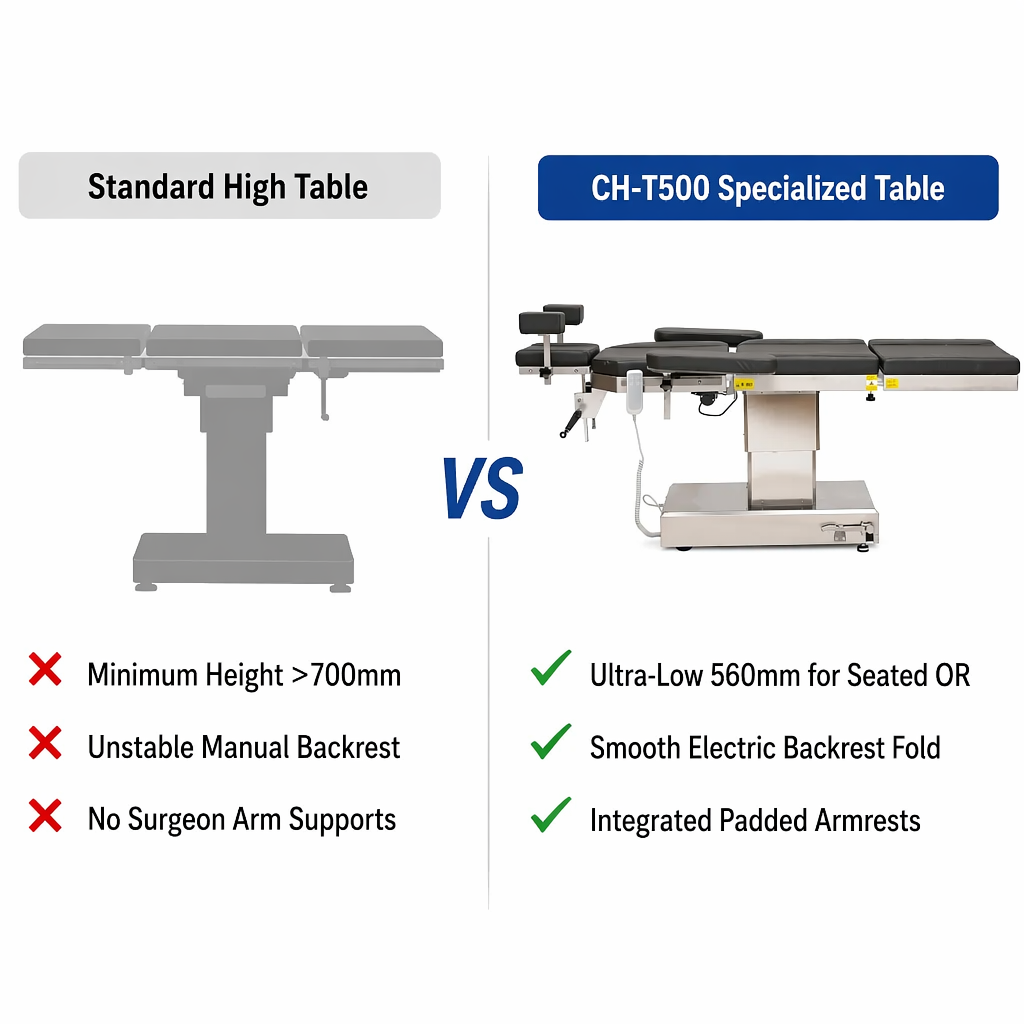

2. Ultra-Low Height & Comfortable Ergonomic Armrests
Designed to fulfill strict ophthalmic and microsurgery standards, the table lowers to 560mm, providing an ideal comfortable posture for surgeons who operate seated. The padded doctor armrests prevent hand tremors and fatigue during delicate operations.

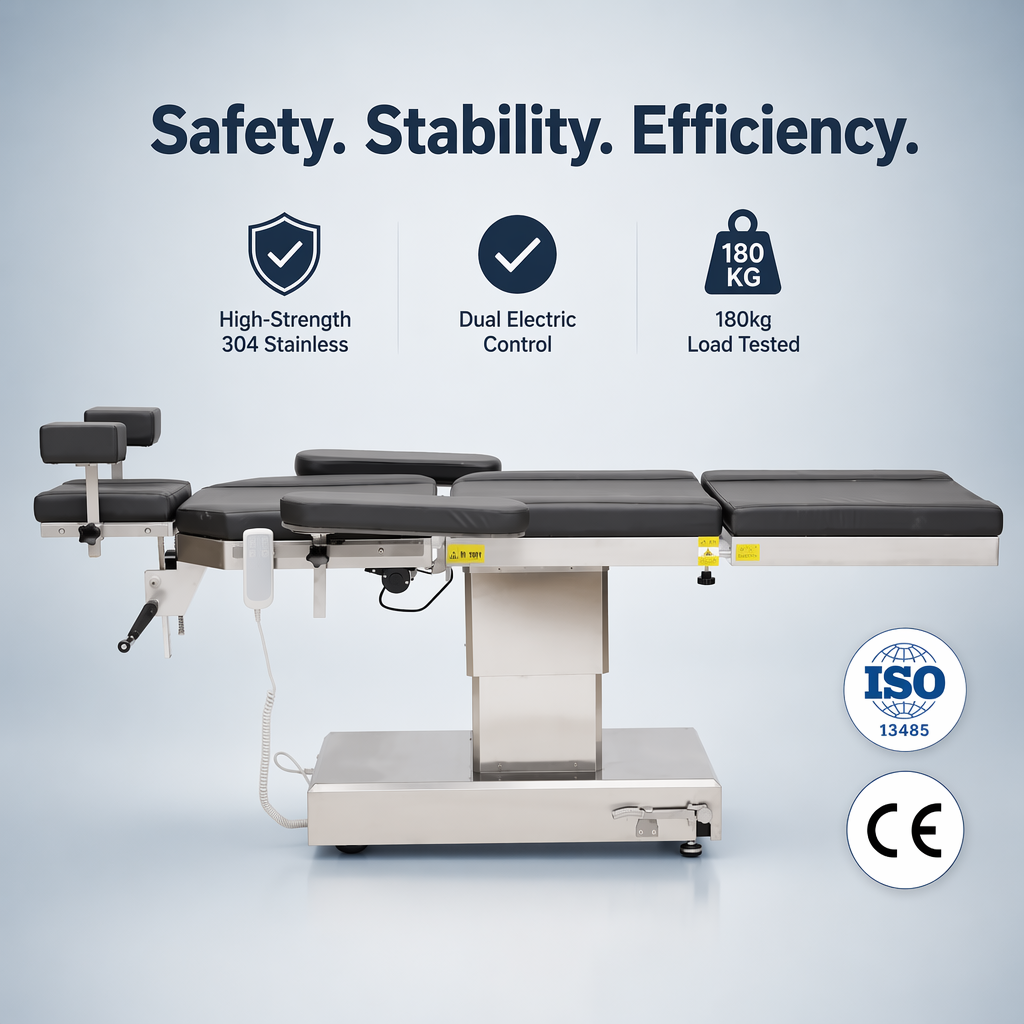

3. Premium 304 Stainless Steel & Anti-Static Hygiene
Built for rigorous hospital environments, the outer casing, lifting column, and base guard are constructed from high-grade 304 stainless steel for superior corrosion resistance and effortless cleaning. The anti-static foam mattress distributes body weight evenly to prevent postoperative pressure ulcers.

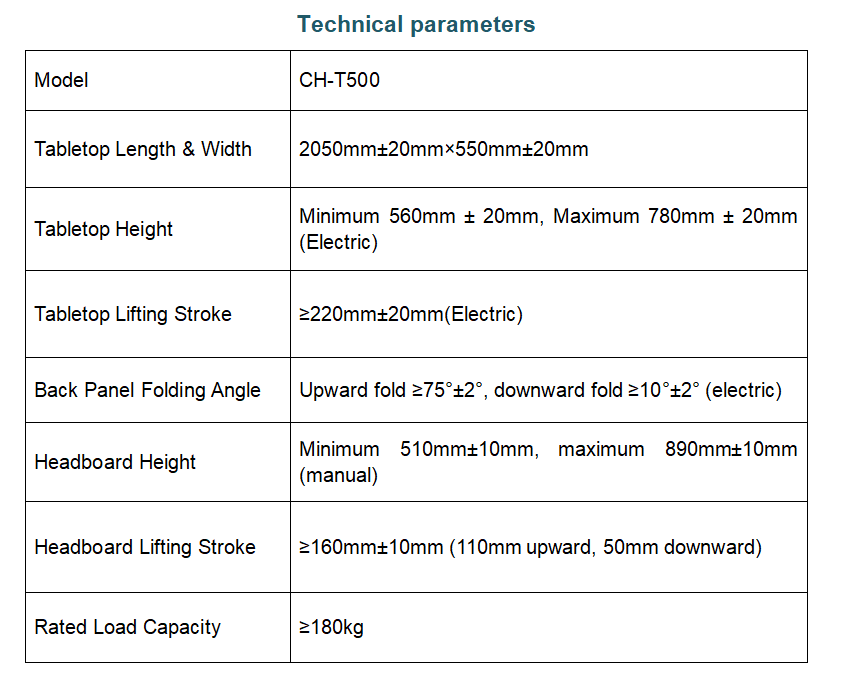

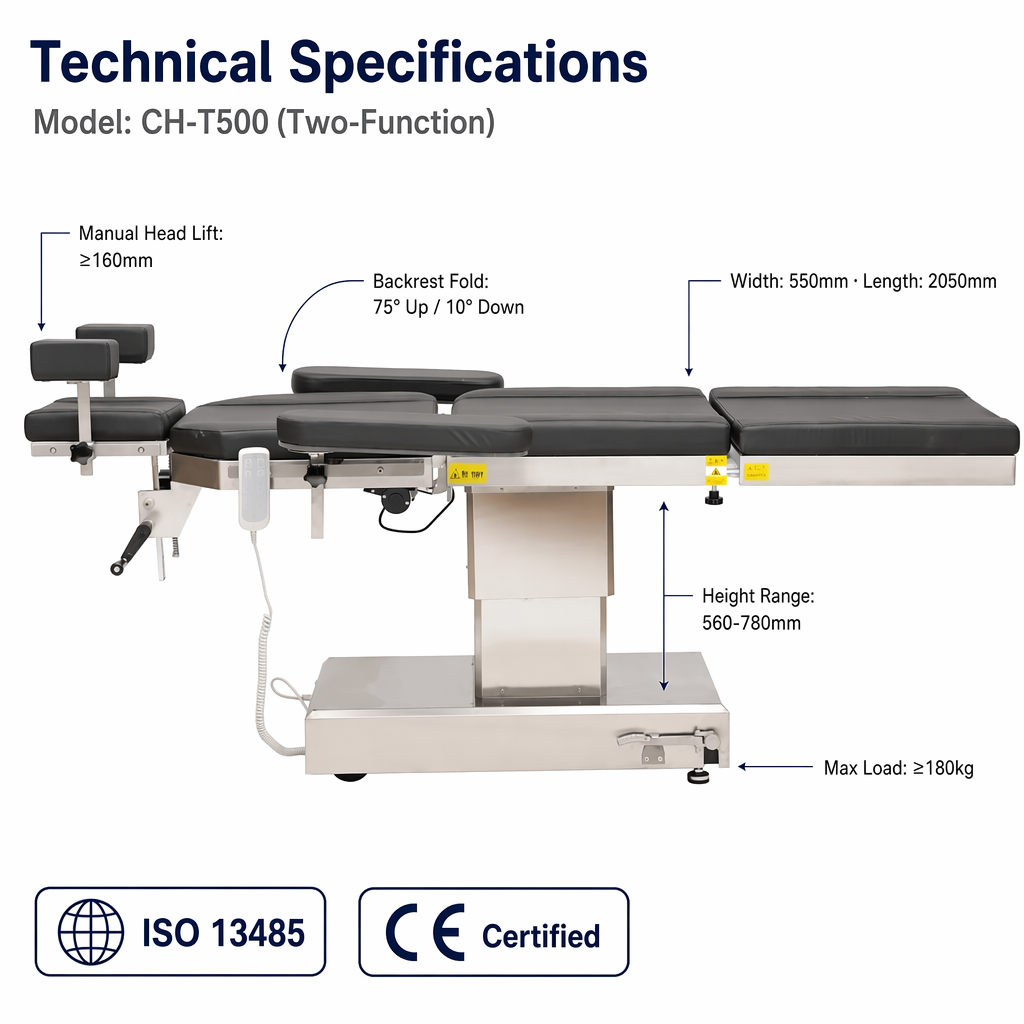

| Model | CH-T500 |
| Tabletop Length & Width | 2050mm±20mm×550mm±20mm |
| Tabletop Height | Minimum 560mm ± 20mm, Maximum 780mm ± 20mm (Electric) |
| Tabletop Lifting Stroke | ≥220mm±20mm(Electric) |
| Back Panel Folding Angle | Upward fold ≥75°±2°, downward fold ≥10°±2° (electric) |
| Headboard Height | Minimum 510mm±10mm, maximum 890mm±10mm (manual) |
| Headboard Lifting Stroke | ≥160mm±10mm (110mm upward, 50mm downward) |
| Rated Load Capacity | ≥180kg |
FAQ
Q1: What is the difference between single-function and dual-function electric operating tables?
A: A single-function table typically features electric height adjustment only. The dual-function CH-T500 features two electric motors that power both tabletop height adjustment (560-780mm) and backrest folding (up ≥ 75°, down ≥10°) via a remote control.
Q2: Is the CH-T500 suitable for specialized microsurgeries like ophthalmology?
A: Yes. Its 560mm ultra-low height paired with dedicated surgeon armrests makes it ideal for seated microsurgeries, including ophthalmology and ENT procedures.
Q3: Does Chenhong Medical support OEM customization for distributors?
A: Absolutely. As a direct manufacturer, Chenhong Medical provides full OEM/ODM services, including custom branding, tailored dimensions, optional battery backup systems, and localized user documentation.
💼 Why Partner with Us? (Serving Global B2B Distributors & Tender Projects)
As a robust, direct-selling medical device manufacturer, we provide tailored services for major international distributors, procurement networks, and hospital tender projects:
Factory-Direct Pricing: Eliminate intermediary markups to maximize your price competitiveness in tenders.
Global Supply Chain & Logistics: Flexible trade terms (FOB, CFR, CIF, DDP, etc.) to meet your specific logistical needs.
Comprehensive Certification Support: Every shipment includes full quality inspection documentation, warranty cards, and detailed operation manuals.
