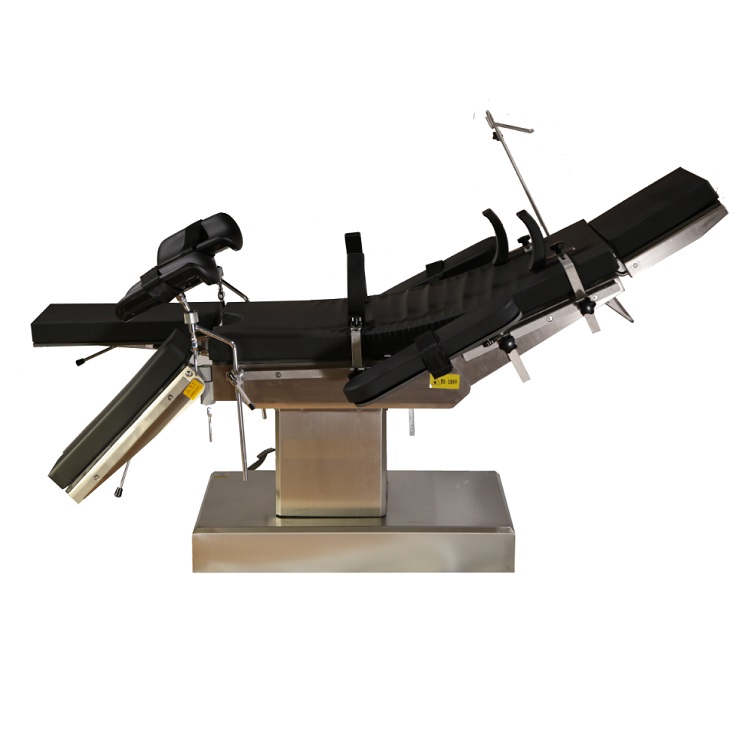

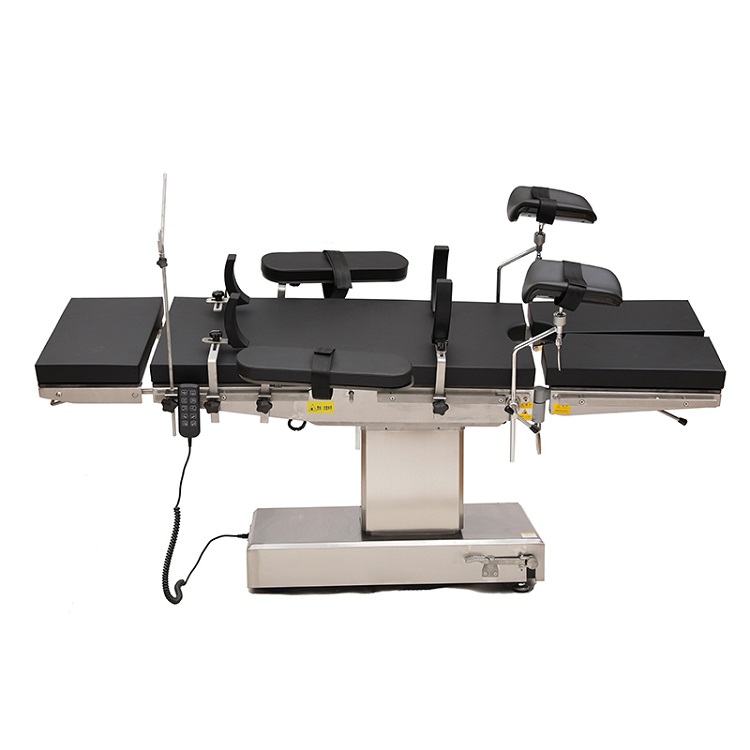

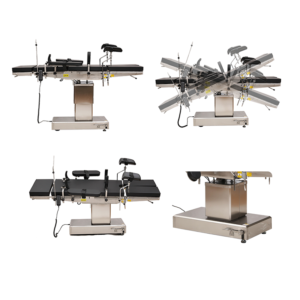

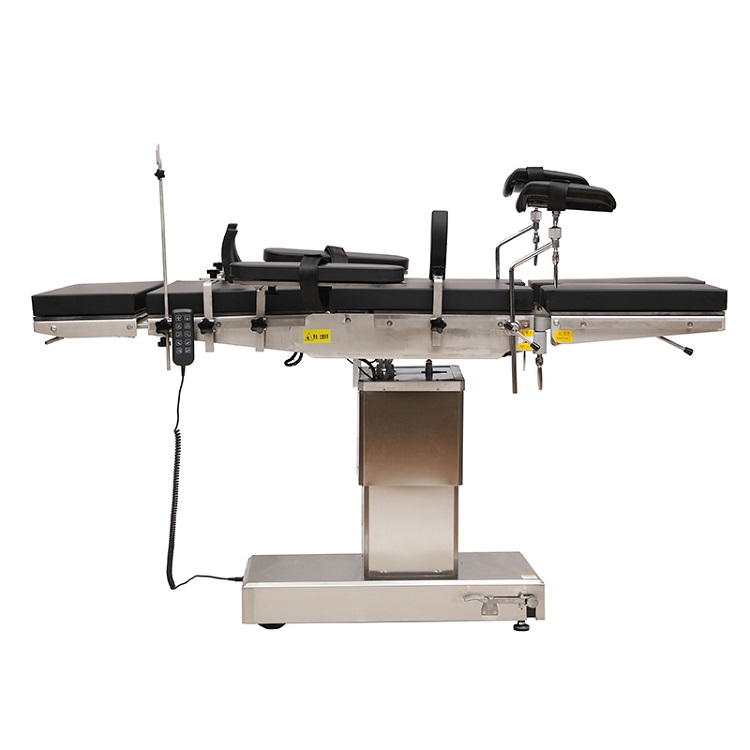

CH-T200 Electric Operating Table with 5 Electric Controls & Longitudinal Translation, X-ray Transparent Surgical Table CE ISO Certified for Multi-Department Surgery

Core Performance Advantages

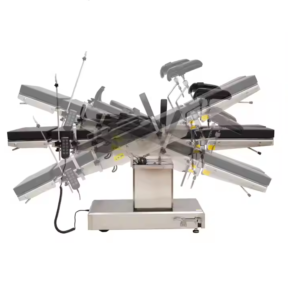

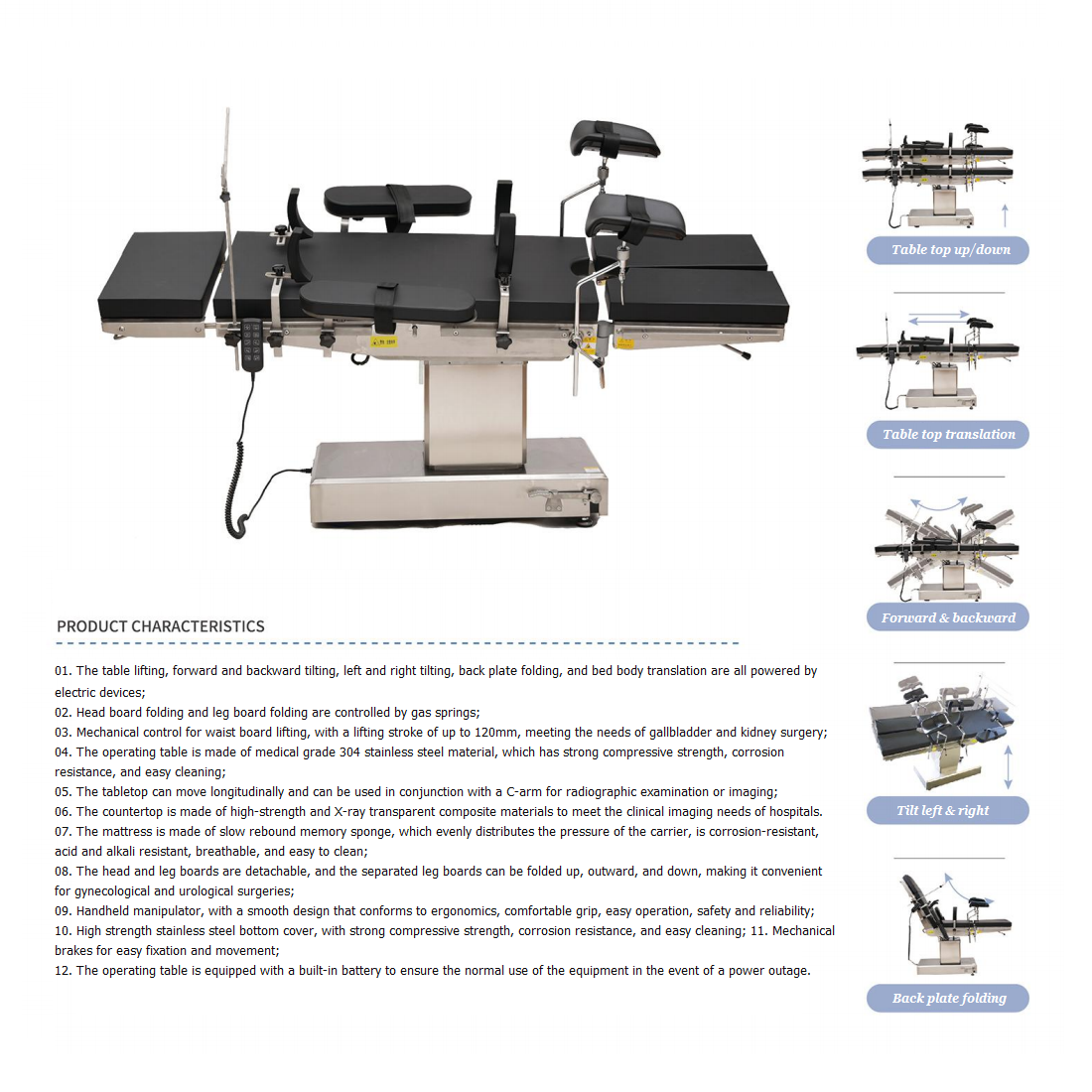

1. Five Motorized Control Functions

   Five core movements are electrically driven: table lifting, forward/backward tilt, left/right tilt, backrest folding and longitudinal table translation, controlled by hand controller and electric push rods. Head board and leg board are adjusted by gas springs; lumbar bridge is manually controlled for gallbladder and kidney surgeries.

2. Electric Longitudinal Translation Compatible with C-Arm

   The whole tabletop supports 300mm electric longitudinal movement. Doctors can complete X-ray examination and filming without moving patients, greatly improving intraoperative imaging efficiency.

3. Low-Refraction X-Ray Permeable Tabletop

   High-strength composite tabletop with low refractive index, excellent X-ray penetration effect, specially optimized for orthopedic radiography to meet all hospital clinical imaging requirements.

4. Pressure-Relief Slow Rebound Sponge Mattress

   Slow rebound sponge mattress evenly disperses body pressure, fits human body temperature automatically to avoid pressure sores. It is corrosion-resistant, acid & alkali resistant, breathable and easy to clean for long-term clinical use.

5. Detachable Multi-Angle Adjustable Head & Leg Boards

   Head and leg boards can be fully disassembled. Leg boards support manual outward rotation and downward folding to expand operating space and realize various complex surgical body positions


6. Medical Grade 304 Stainless Steel Body

   The whole table adopts medical 304 stainless steel with matte anti-glare surface, resistant to disinfectant corrosion, easy to wipe and sanitize every day.

7. Reinforced Stainless Steel Base Cover

   Thickened stainless steel base shell features strong compression resistance, anti-rust and stain-resistant properties, convenient for daily disinfection maintenance.

8. Mobile Lockable Base with Casters

   Equipped with silent rolling casters, the base can be moved flexibly and locked tightly to keep the table stable during all surgical operations.

9. Built-In Adjustable Lumbar Bridge

   Independent lumbar lifting structure with 115mm stroke, provides proper body arching for abdominal, biliary and renal surgeries.

10. Safe 24V Low-Voltage Electric Control System

    External 220V AC power is converted into safe 24V DC to drive all motors. The control system consists of power supply and control box, stable and safe for long-time continuous operation.


    Technical Parameters

    • Model: CH-T200 Electric Operating Table (5-Control Translation Version)
    • Tabletop Length: 2010(±20)mm
    • Tabletop Width: 495(±20)mm (without side rails)
    • Electric Height Range: Min 740(±20)mm ~ Max 1040(±20)mm
    • Electric Longitudinal Translation: 300±20mm
    • Forward/Backward Tilt (Electric): Forward ≥17°, Backward ≥16°
    • Left/Right Lateral Tilt (Electric): Left ≥20°, Right ≥19°
    • Head Board Angle (Manual): Upward ≥30°, Downward ≥90°
    • Backrest Angle (Electric): Upward ≥73°, Downward ≥21°
    • Leg Board Angle (Manual): Upward ≥15°, Downward ≥90°, 180° expandable & detachable
    • Rated Load Capacity: 180kg
    • Lumbar Bridge Lifting Stroke: 115(±10)mm

    Standard Configuration List (Single Set)

    1. Operating Table Main Body ×1 set, Brand: Chenhong
    2. Slow Rebound Sponge Mattress ×1 set, Brand: Chenhong
    3. Electric Motors ×6 sets, Domestic Brand
    4. Anesthesia Screen Frame ×1 pc, Brand: Chenhong
    5. Arm Supports ×2 pcs, Brand: Chenhong
    6. Leg Supports ×2 pcs, Brand: Chenhong
    7. Shoulder Supports ×2 pcs, Brand: Chenhong
    8. Lumbar Supports ×2 pcs, Brand: Chenhong
    9. Manual Crank ×1 set, Brand: Chenhong

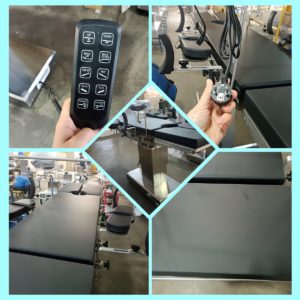

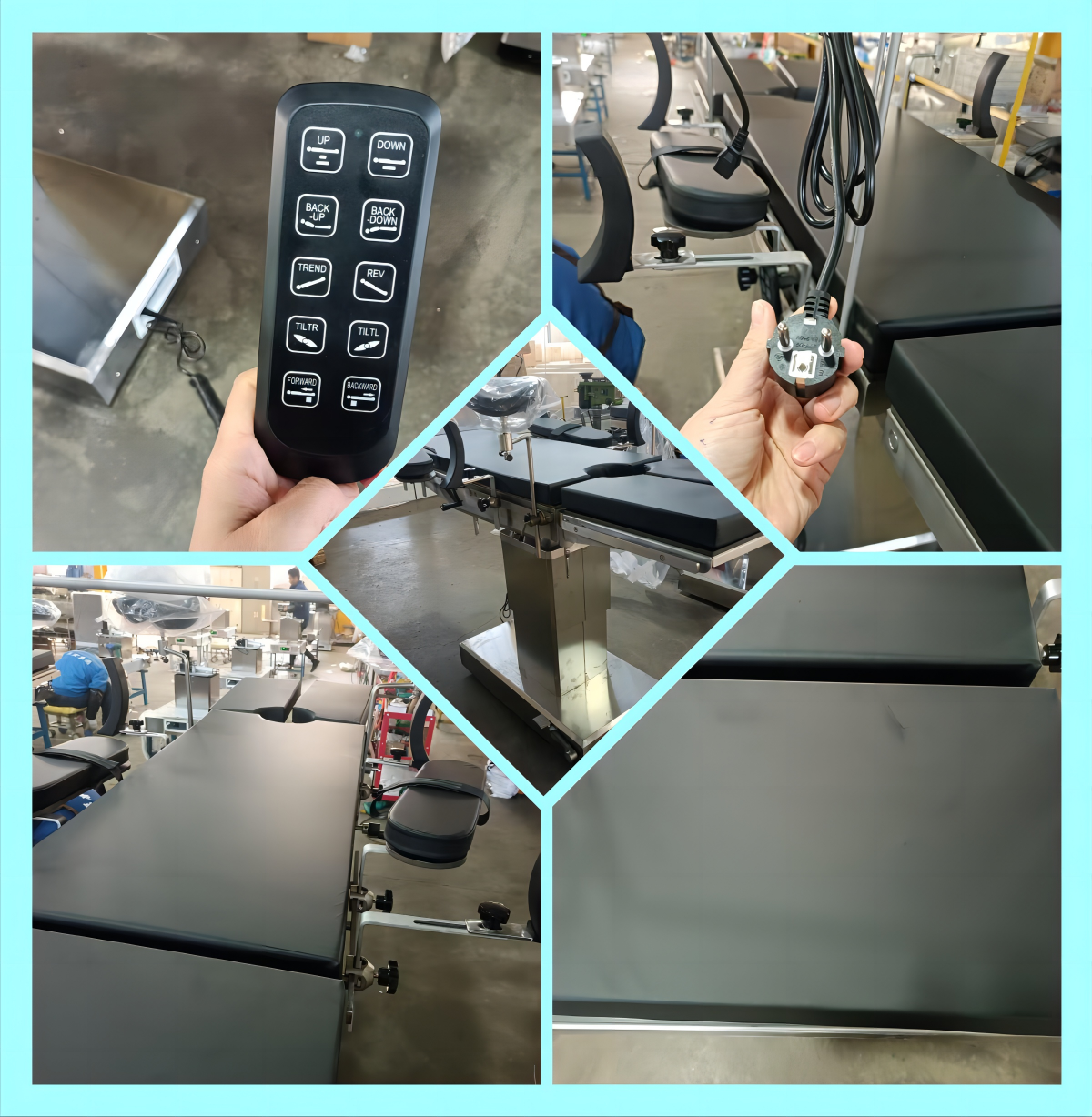

    10. Hand Controller ×1 pc, Brand: Chenhong
    11. Power Cord ×1 pc, Domestic Brand
    12. Product Certificate & Warranty Card ×1 set, Brand: Chenhong
    13. User Operation Manual ×1 set, Brand: Chenhong

    Application Scenarios

    Suitable for general surgery, cardiothoracic surgery, neurosurgery, ophthalmology, ENT, gynecology, urology and orthopedic operating rooms. Matches C-arm fluoroscopy equipment for routine surgery, minimally invasive surgery and orthopedic imaging operations.
