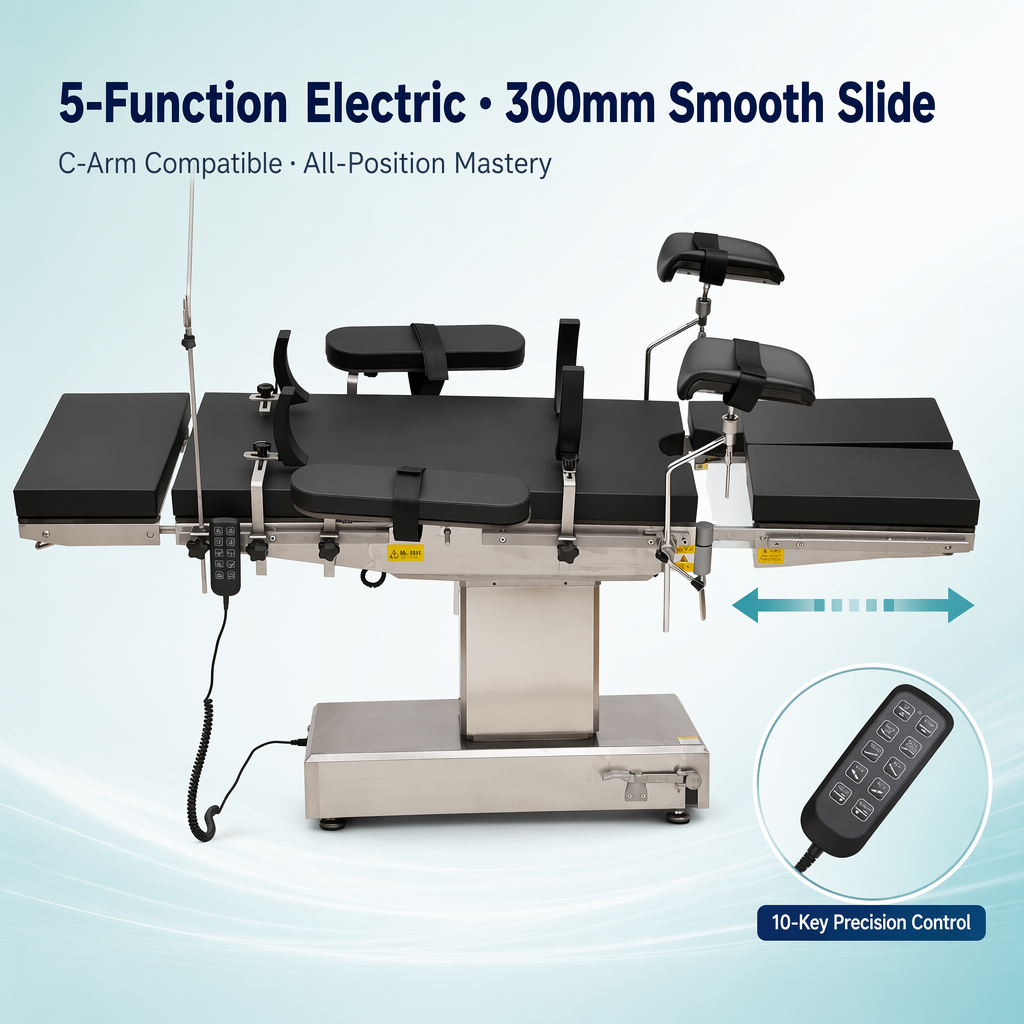

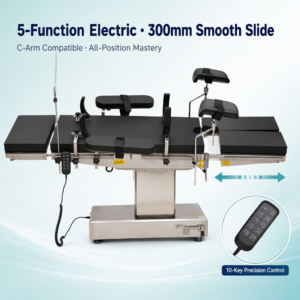

CH-T200 5-Function Electric Operating Table (Longitudinal Shift & C-Arm Compatible)
-
5 Motorized Precision Controls: Fully electric adjustment of height (740-1040mm), Trendelenburg/Reverse (≥ 20°), lateral tilt (≥ 20°), backrest articulation (≥ 75°), and longitudinal shift (≥300mm).
-
300mm Longitudinal Shift for C-Arm: Motorized sliding mechanism combined with X-ray transparent composite tabletop allows seamless full-body C-arm radiographic imaging.
-
Integrated Kidney/Waist Bridge: Manual elevation (≥ 120mm) facilitates optimal patient positioning for gallbladder, renal, and urological surgeries.
-
Ergonomic Pressure-Relieving Mattress: Anti-microbial, acid/alkali-resistant, slow-rebound foam naturally contours to body temperature to effectively prevent bedsores.
-
Medical-Grade 304 Stainless Steel Construction: Matte-finished stainless steel column cover and base shield offer high impact resistance and simple post-op disinfection.
-
Quick-Release Modular Plates: Detachable head and split leg boards with quick-connect joints; leg plates rotate outward and fold downward 90°
Key Features & Clinical Advantages

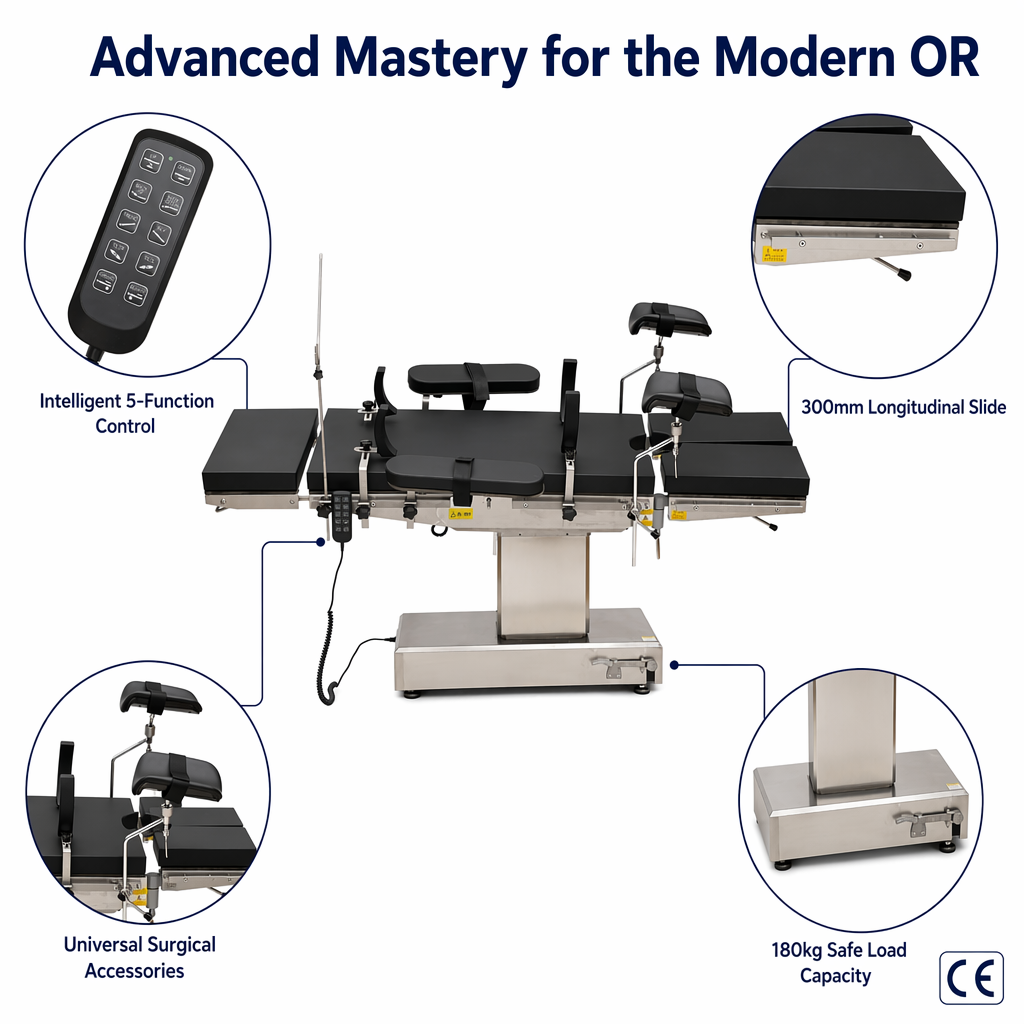

1. 5-Motor Electric Drive System with 300mm Longitudinal Shift
Driven by five high-precision electric push rod motors, the CH-T200 offers effortless position adjustments via a handheld remote controller. The standout ≥ 300mm longitudinal sliding functionality allows surgeons to reposition the patient without physical movement, ensuring complete field coverage when paired with C-arm imaging systems during orthopedic and cardiovascular operations.

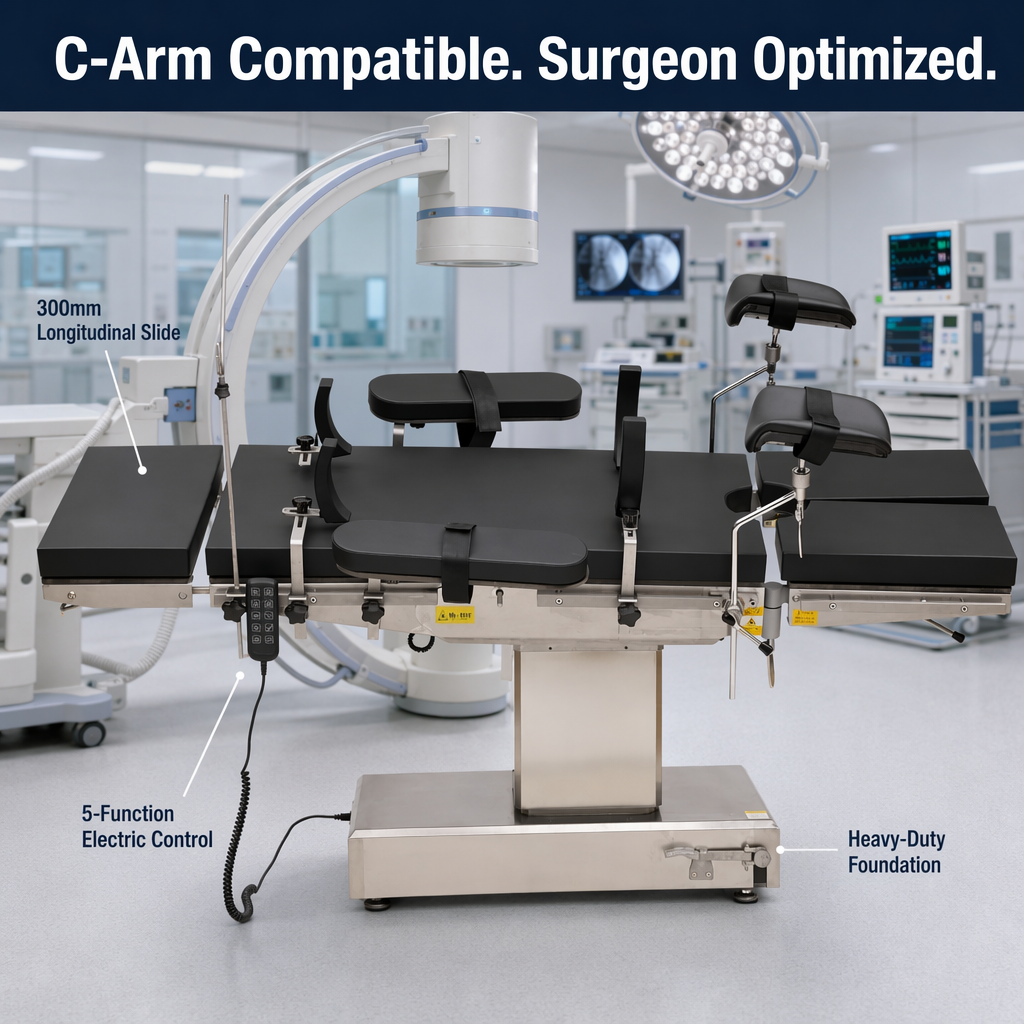

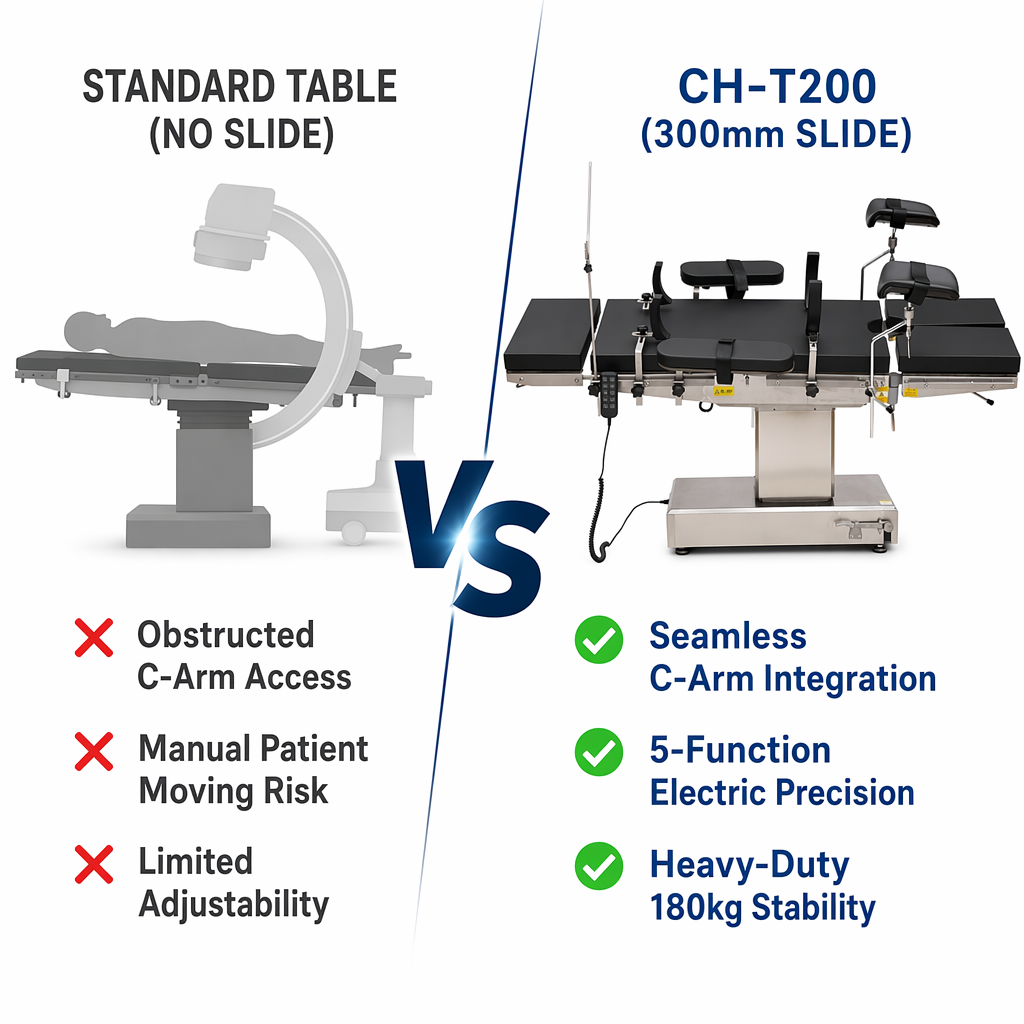

2. X-Ray Transparent Tabletop & C-Arm Compatibility
The high-strength composite tabletop delivers exceptional radiolucency for intraoperative X-ray examinations and fluoroscopy. Combined with the table’s motorized longitudinal shift, medical staff can perform clear imaging procedures across the entire surgical area without repositioning the patient.
3. Built-In Kidney Bridge & Anti-Bedsore Slow-Rebound Mattress
Designed for specialized surgical needs, the integrated mechanical waist bridge provides up to 120mm of vertical lift for renal and biliary procedures. The accompanying slow-rebound foam mattress distributes patient pressure evenly, resists fluid corrosion, and simplifies daily cleaning and sterilization.

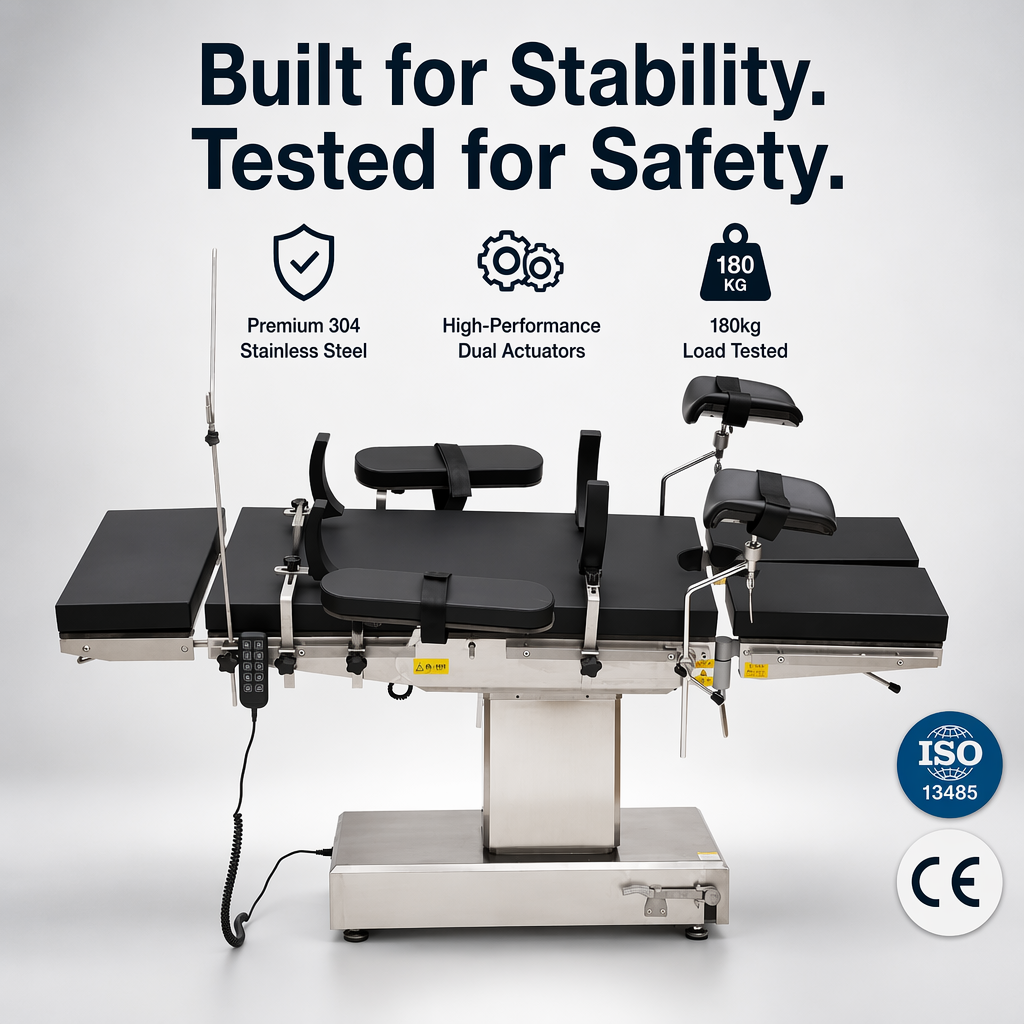

4. Heavy-Duty 304 Stainless Steel & Emergency Battery Backup
Built to withstand rigorous hospital environments, the column and base shields are crafted from matte-finish 304 medical-grade stainless steel to resist wear and harsh chemical disinfectants. An integrated backup battery system guarantees uninterrupted operation in the event of an emergency power outage.

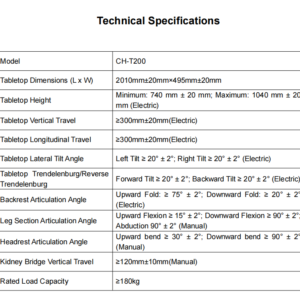

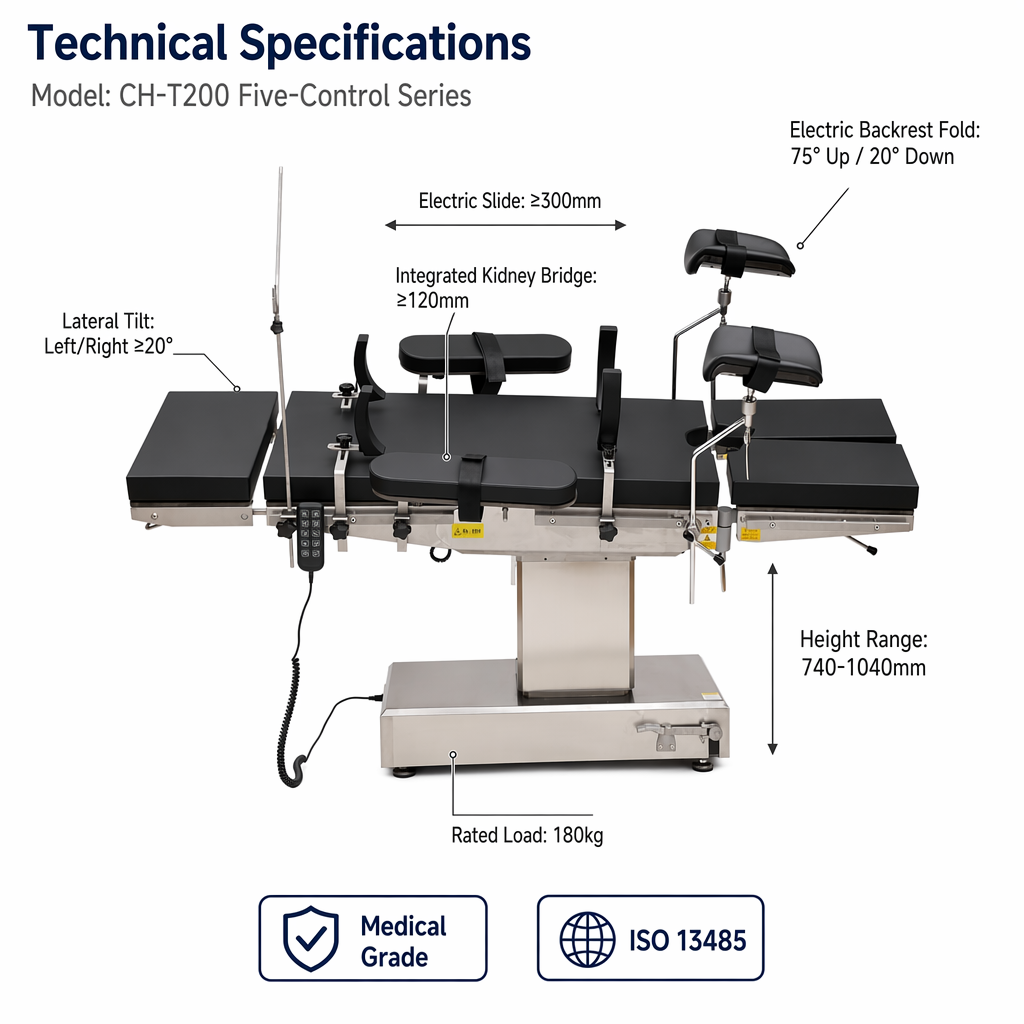

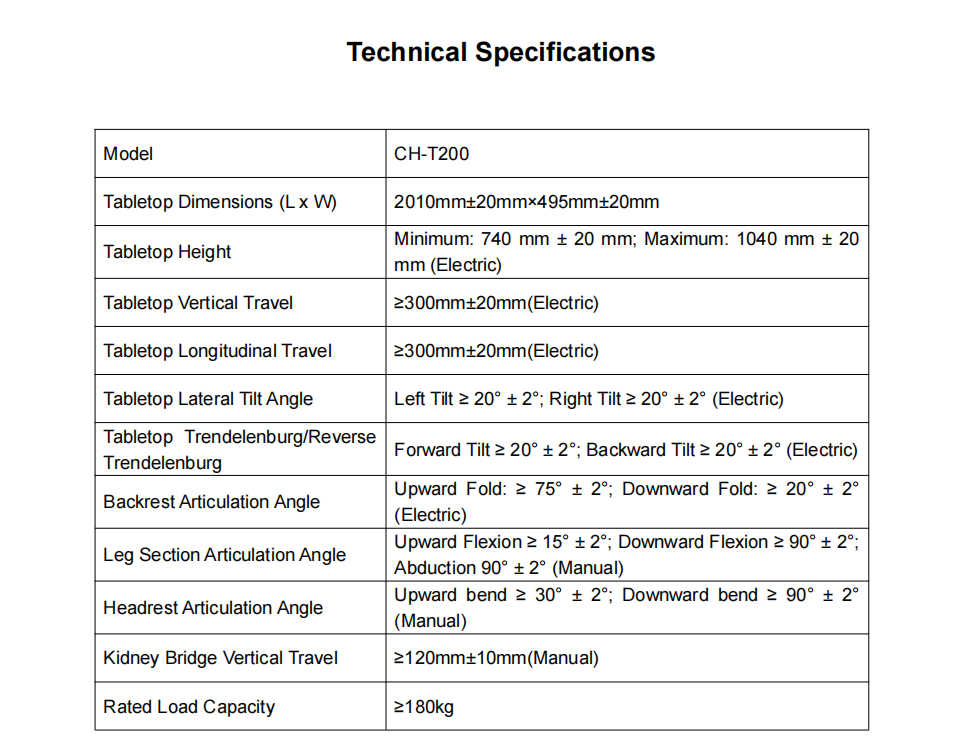

| Model | CH-T200 |
| Countertop length and width | 2010mm±20mm×495mm±20mm |
| Countertop height | Minimum 740mm±20mm Maximum 1040mm±20mm (electric) |
| Table lifting stroke | ≥300mm±20mm(electric) |
| Table translation distance | ≥300mm±20mm(electric) |
| Table left and right tilt angle | Left tilt ≥20°±2° Right tilt ≥20°±2° (electric) |
| Table front and back tilt angle | Forward tilt ≥20°±2° Back tilt ≥20°±2° (electric) |
| Back plate folding angle | Fold up ≥75°±2° Fold down ≥20°±2° (electric) |
| Leg plate turning angle | Fold up ≥15°±2° Fold down ≥90°±2° Extension 90°±2° (manual) |
| Head plate turning angle | Fold up ≥30°±2° Fold down ≥90°±2° (manual) |
| Lumbar bridge lifting stroke | ≥120mm±10mm(manual) |
| Rated load-bearing | ≥180kg |
FAQ
Q1: What 5 functions are electrically controlled on the CH-T200 operating table?
A: The CH-T200 features 5 motorized electric functions via hand controller: height adjustment (740-1040mm), longitudinal shift (≥ 300mm), forward/backward Trendelenburg tilt (≥20°), left/right lateral tilt (≥ 20°), and backrest folding (≥ 75°).
Q2: Is the CH-T200 suitable for C-arm fluoroscopy and X-ray imaging?
A: Yes. The tabletop is made of high-strength X-ray transparent composite material and features a 300mm motorized longitudinal shift, allowing complete upper-body and lower-body C-arm imaging without moving the patient.
Q3: What accessories are included in the CH-T200 basic standard configuration?
A: Each unit comes with a full set of surgical accessories: 1 anesthesia screen frame, 2 arm supports, 2 leg supports, 2 shoulder supports, 2 waist supports, built-in kidney bridge, handheld remote, power cord, and backup battery.
