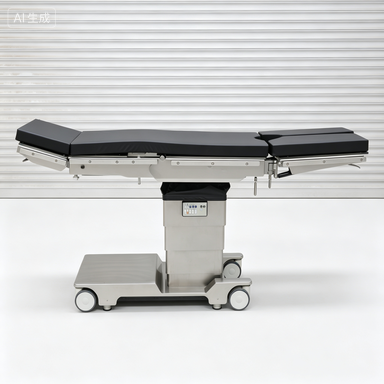

CH-DY8300 Multifunctional Electric Hydraulic Surgical Operating Table, 304 Stainless Steel X-Ray Translatable Operating Bed with Dual Controllers for Hospital Operation Room

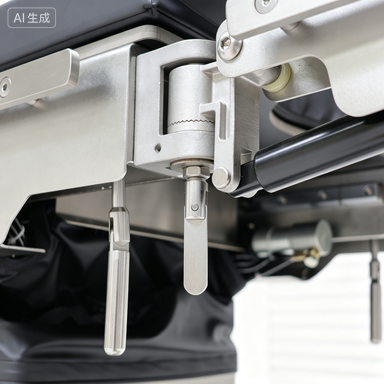

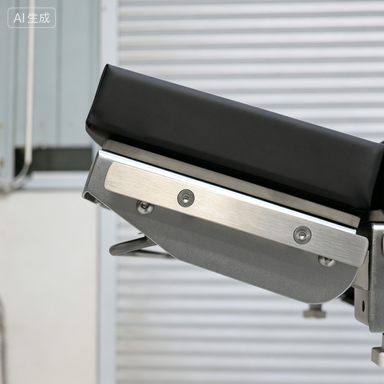

This table features a modular split design. Detachable head and leg plates support head-leg interchange with quick plug-in connectors to improve operation safety and accuracy for various surgical positions. The leg plates can be manually rotated outward and folded down, offering flexible operation space for medical staff. Optional one-click plug-and-lock structure is available for head plates and leg supports.

It owns ultra-low minimum height and long lifting stroke of 480mm. The wide height range meets seated neurosurgery and standing orthopedic surgery demands, covering clinical needs of all hospital departments.

The tabletop is made of high-strength X-ray transparent composite material, compatible with C-arm fluoroscopy and intraoperative radiography examination via longitudinal sliding function.

The mattress is molded with slow-rebound sponge. It is comfortable, corrosion-resistant, acid-base resistant, breathable and easy to clean. The sponge fits patients’ body temperature to evenly disperse body pressure and effectively prevent pressure sores.

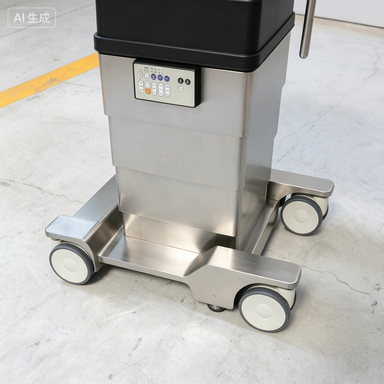

The table column and base cover are made of medical-grade 304 stainless steel with matte anti-corrosion finish. The material is impact-resistant, wear-resistant and easy to disinfect after surgical procedures.

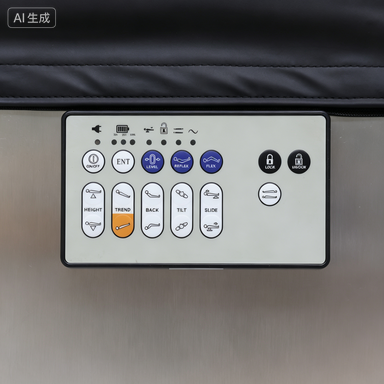

Dual independent control systems are equipped, including a handheld controller and a column-mounted panel controller, both fitted with lock switches to avoid misoperation. Two separate microcomputer processors guarantee stable performance; if one system fails, the other can work normally.

One-click reset function supports fast emergency treatment and quick post-operation cleaning & disinfection to boost hospital work efficiency. A built-in lumbar bridge provides stable body support for gallbladder, kidney and abdominal surgeries.

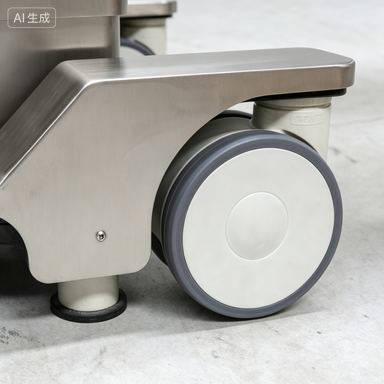

The base adopts concave design with four 125mm silent universal casters. The 4-point electric hydraulic brake system ensures flexible movement and reliable fixed positioning.

One-click flexion and reverse flexion modes are available to quickly form V-type and reverse V-type body positions, ideal for spinal surgery, orthopedics, neurosurgery and plastic surgery. A built-in rechargeable backup battery enables full function operation during power outages.

Model: CH-DY8300

Tabletop Size: 2080mm±20mm × 525mm±20mm

Table Height Adjustment: Min 540mm±20mm, Max 1020mm±20mm (Electric Control)

Table Lifting Stroke: ≥480mm±20mm (Electric Control)

Longitudinal Translation Distance: ≥320mm±20mm (Electric Control)

Left-Right Table Tilt: Left ≥20°±2°, Right ≥20°±2° (Electric Control)

Trendelenburg Tilt: Forward ≥30°±2°, Backward ≥30°±2° (Electric Control)

Backrest Folding Angle: Upward ≥75°±2°, Downward ≥35°±2° (Electric Control)

Leg Plate Angle: Upward ≥35°±2°, Downward ≥90°±2°, Abduction 90°±2° (Manual Control)

Head Plate Angle: Upward ≥35°±2°, Downward ≥90°±2° (Manual Control)

One-Click Flexion V Position: ≥100°

One-Click Reverse Flexion Reverse V Position: ≥220°

Lumbar Bridge Lifting Stroke: ≥120mm±10mm (Manual Control)

Rated Load Capacity: ≥225kg
