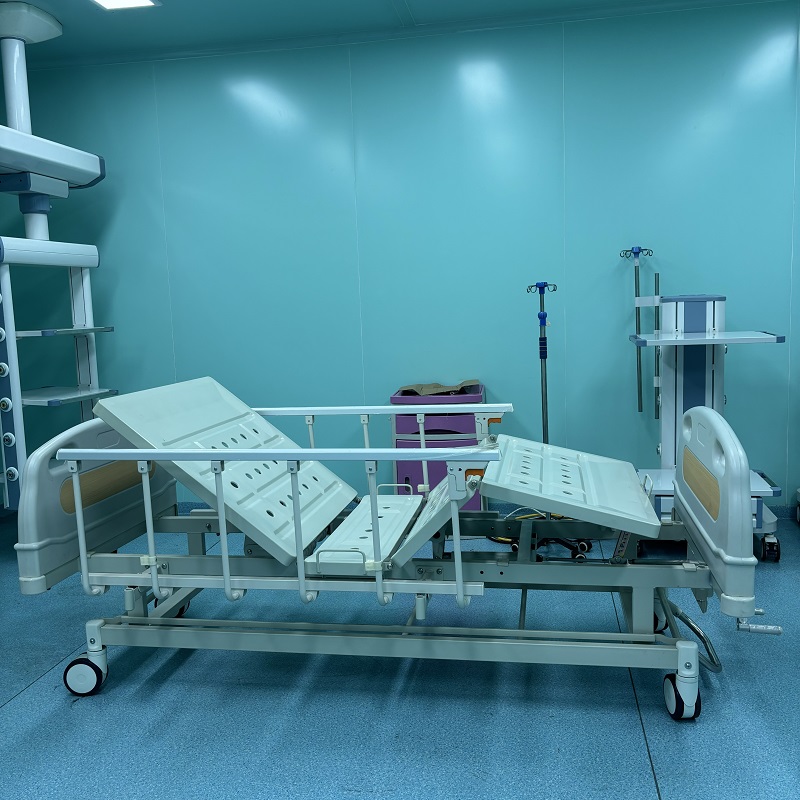

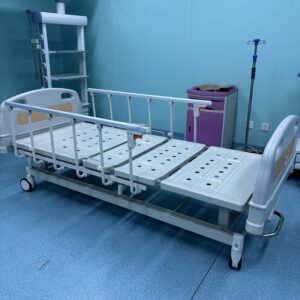

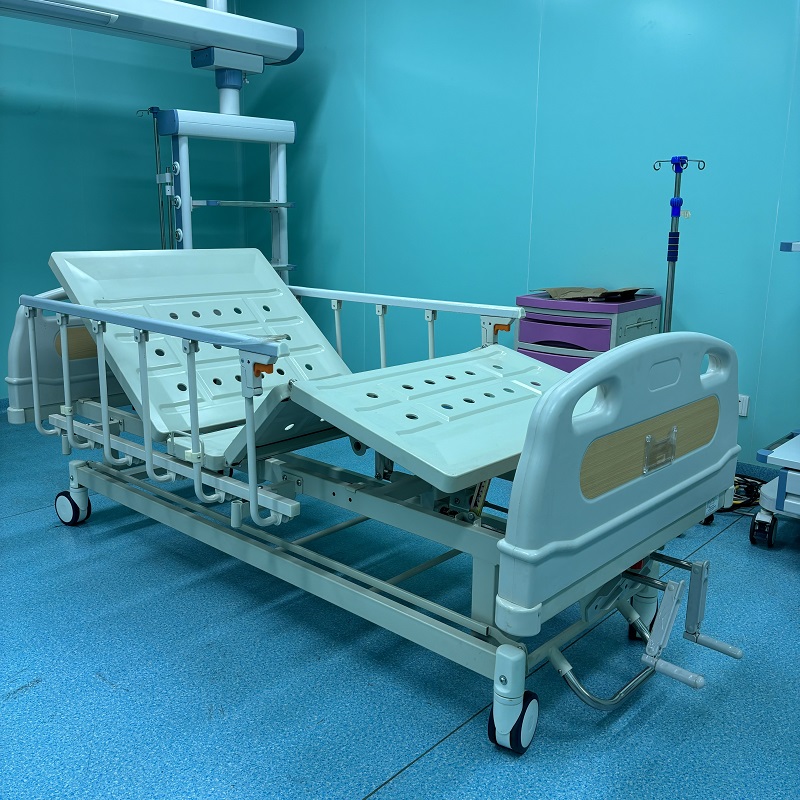

CH-B8 Double Crank Manual Hospital Bed, 2-Function Adjustable Patient Nursing Bed with Central Lock 5-Inch Casters & Aluminum Guardrails for Ward Care

Product Overview

Technical Specifications

1. Overall Bed Dimension: 2130(±20mm) × 980(±20mm) × 500(±20mm)
2. Bed Deck Size: 1950 × 830(±20mm)
3. Guardrail Height from Bed Surface: 360(±20mm)
4. Backrest Adjustment Angle: 75°±5°
5. Leg Rest Adjustment Angle: 45°±5°
6. Max Static Load Capacity: 250kg


Core Functional Features

Frame & Structural Advantages

Key Component Performance

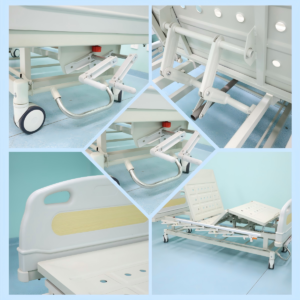

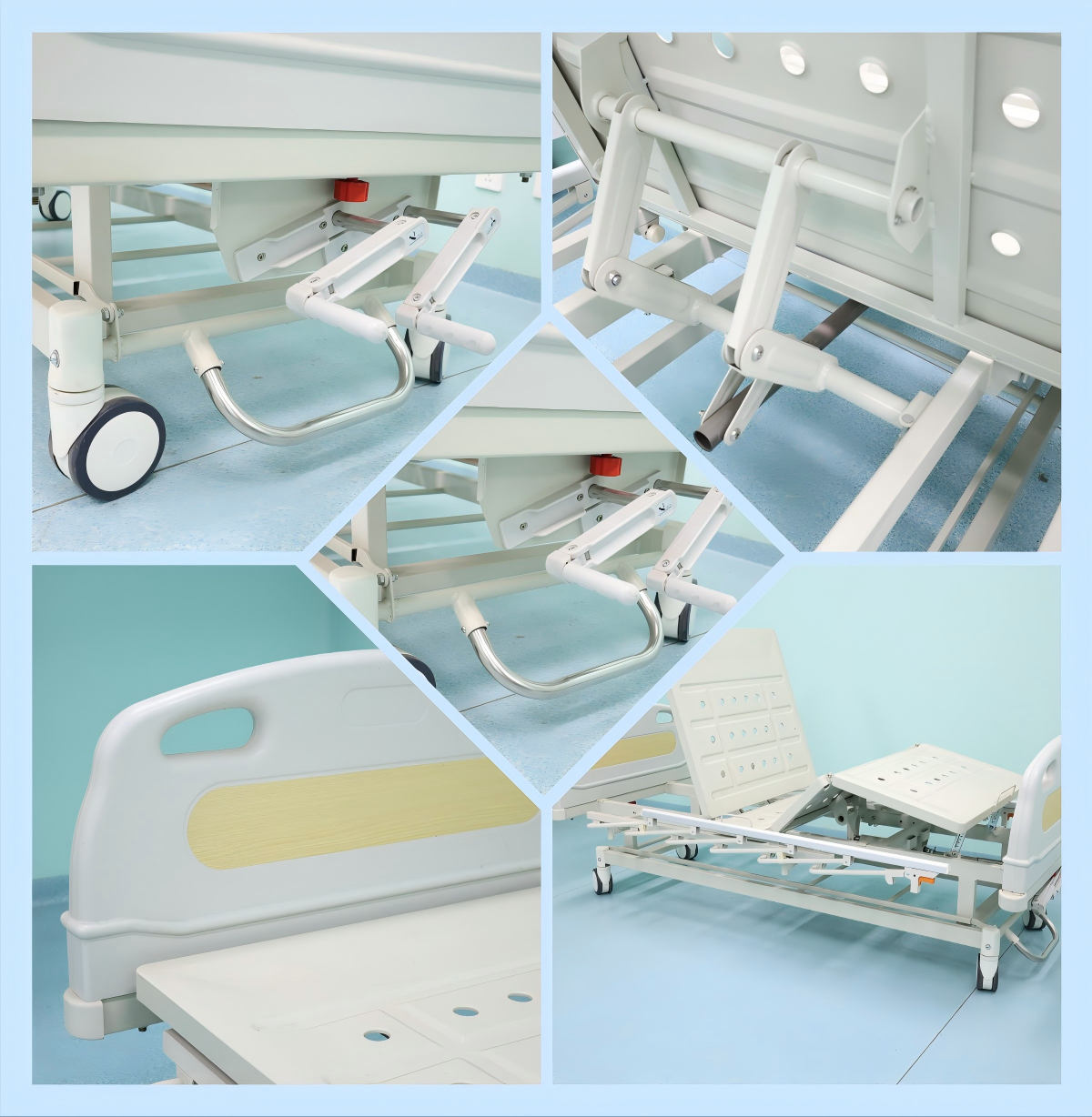

1. Bidirectional Limit Protection Screw Tube

   Silent wear-resistant screw rod with full bidirectional overtravel limit protection. Labor-saving operation effectively reduces wear and prolongs service life.

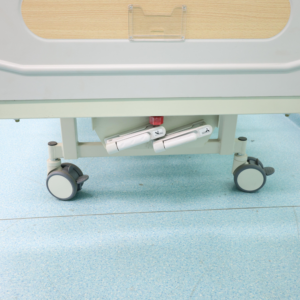

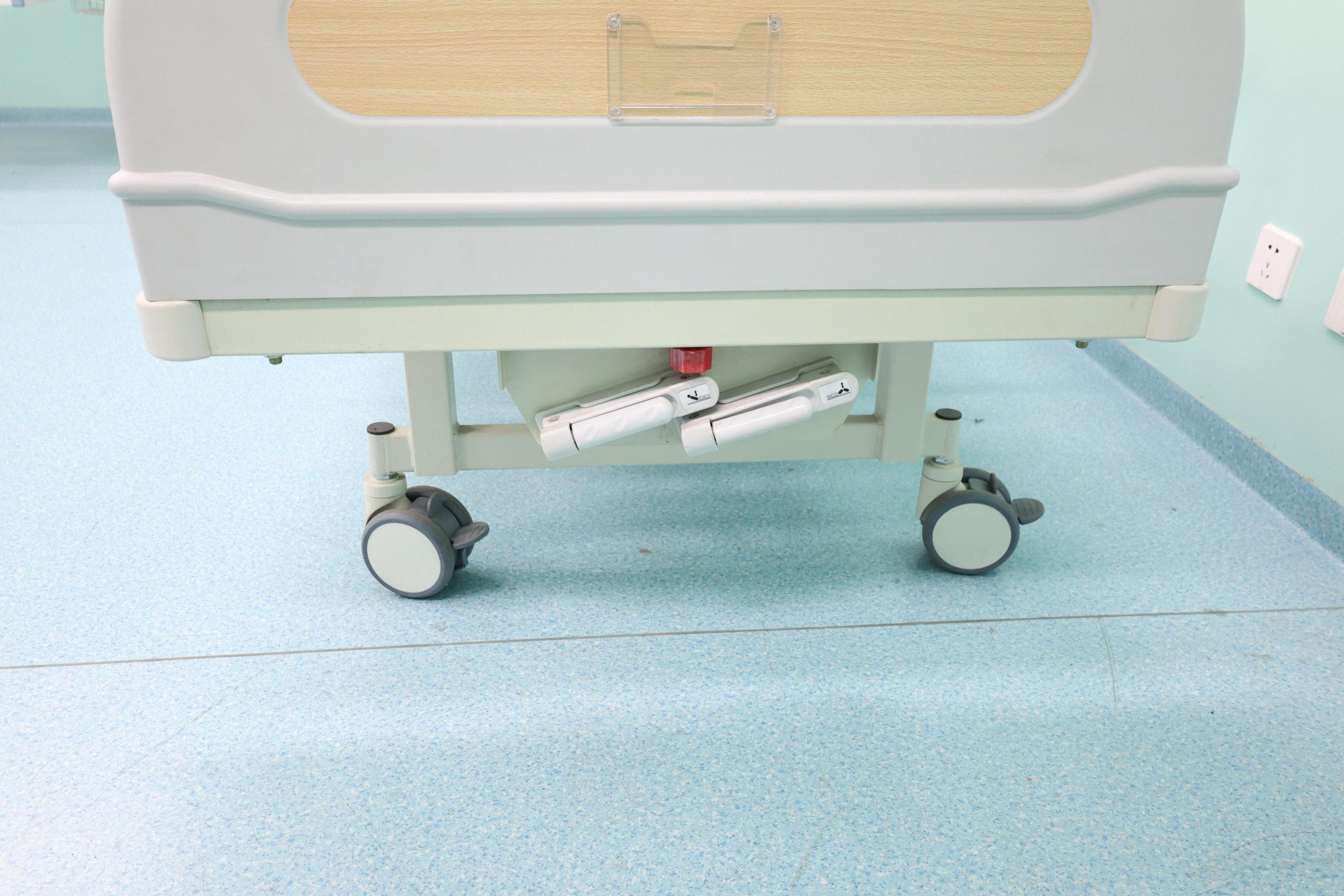

2. Reinforced ABS Manual Cranks

   Integral injection molded ABS crank handles with thickened enlarged structure, comfortable grip, high toughness and fracture resistance. Hidden lock design for neat storage.

3. Detachable ABS Headboard & Footboard

   Made of high-purity engineering plastic with built-in steel pipe reinforcement for high hardness and structural stability. Concealed locking latch enables quick disassembly and easy daily cleaning.

4. Curved Aluminum Guardrails

   6-piece bent aluminum support pillars with hidden inverted base structure, high tensile strength without deformation. Smooth streamline design prevents patient falling and improves clinical safety.

5. 5-Inch Double-Sided Linked Central Lock Casters

   Lightweight high-hardness wheel body with one-step central brake for dual-side ground contact and stable fixation. Fully enclosed self-lubricating bearings are waterproof and anti-winding without rusting. TPR wear-resistant wheel surface ensures silent rolling.

6. Integrated Stamped Steel Bed Deck

   1.2mm thick Wuhan Iron & Steel cold-rolled steel integrally molded with smooth rounded corners, eliminating gaps from spliced welding that accumulate dirt. “Japanese-shaped” steel reinforcing ribs on the back, with molded grooves and ventilation holes for strong compression resistance and good air permeability.

7. Anti-Slip Mattress Retainers

   3 built-in ribs on bed surface to fix mattress and avoid sliding during patient turning. Four integrated IV stand jacks around the bed frame for convenient infusion treatment.


Standard Configuration

1. One pair ABS headboard & footboard
2. Two sets hidden ABS crank screw systems
3. One set high-grade L-shaped aluminum guardrails
4. Four luxury central lock silent casters
5. One set mattress anti-slip retainers
6. Four integrated IV stand jacks

Optional Matching Accessories

1. Half brown cotton waterproof medical mattress
2. Overbed dining table
3. Accompanying chair
4. Drainage hanging hooks
5. Telescopic stainless steel IV stand
6. Under-bed storage rack
