CH-3 Three-Function Electric Hospital Bed, 3 Motors Patient Nursing Bed with ABS Side Rails & Central Lock Casters for Hospital Ward & Home Care

Core Performance Advantages

1. Detachable ABS Blow-Molded Head & Foot Boards

   Headboard and footboard are manufactured with high-grade ABS engineering plastic via blow molding. Plug-in design enables quick disassembly and assembly. Anti-collision wheels are installed on both sides to resist impact, high temperature, low temperature and chemical corrosion with excellent electrical insulation performance.

2. Ventilated Stamped Steel Bed Deck

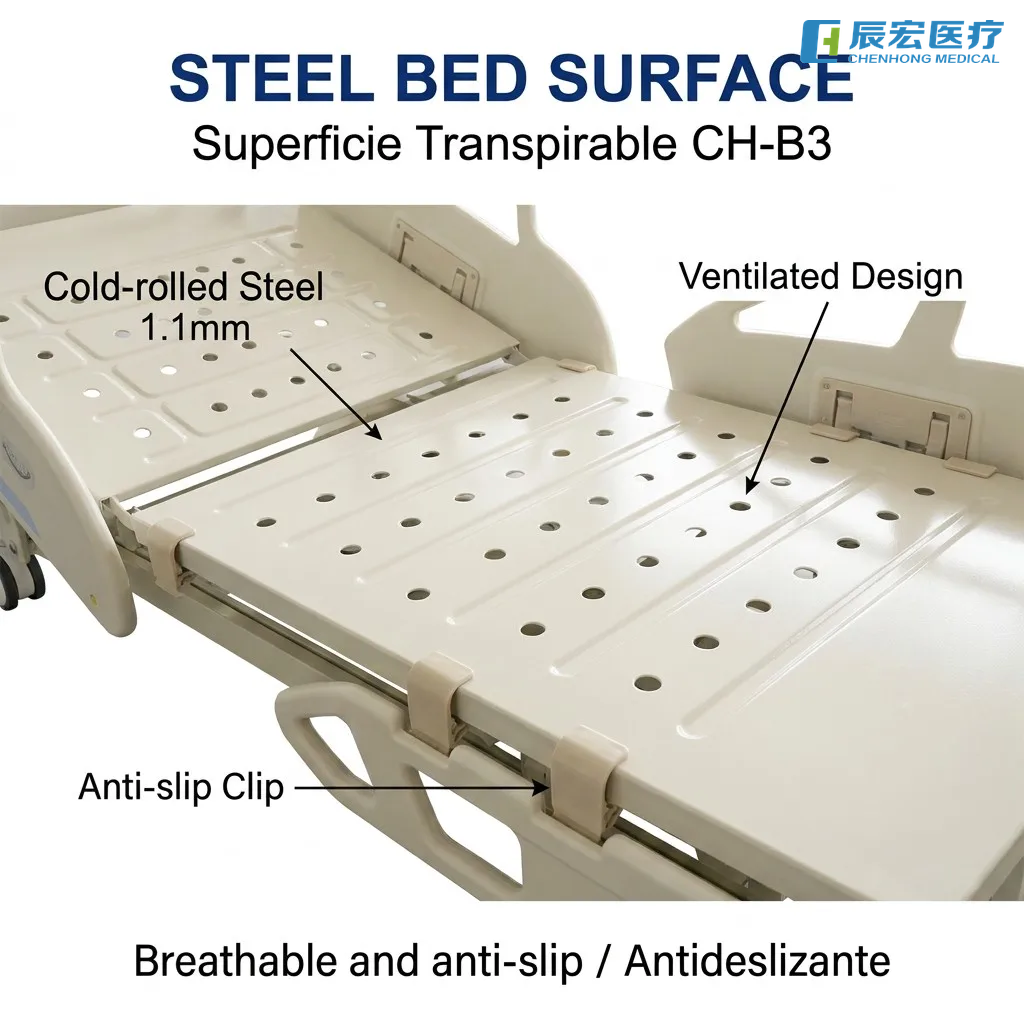

   Bed surface is integrally stamped from 1.1mm thick high-quality cold-rolled steel with concave multi-hole ventilation structure. Anti-slip mattress stoppers are reserved to fix mattress firmly. Weld-free surface and steel reinforcing ribs on the back extend service life effectively.

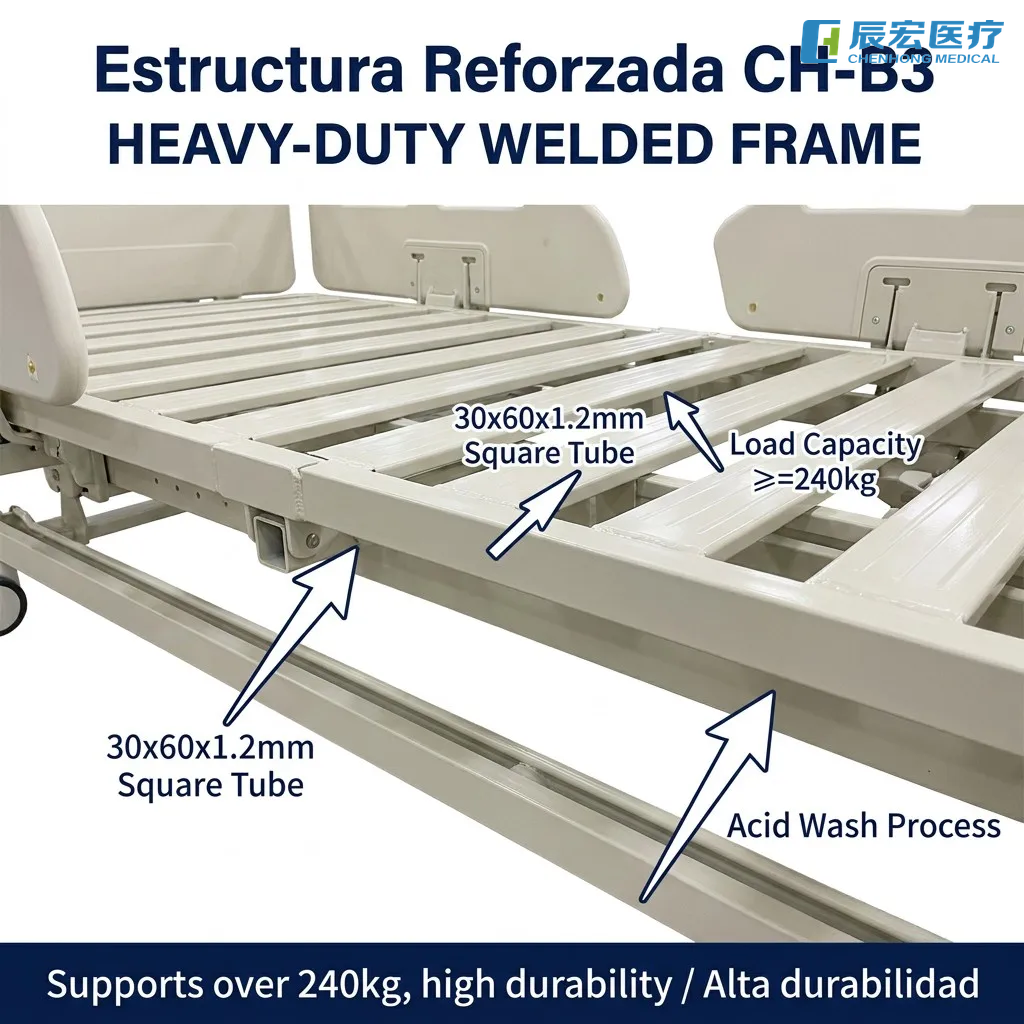

3. Heavy-Duty Welded Steel Frame

   Bed frame is welded with 30601.2mm rectangular steel tubes with advanced welding technology for solid construction. Maximum static load capacity reaches ≥240kg to meet long-term patient nursing demands.

4. Anti-Rust Electrostatic Powder Coating

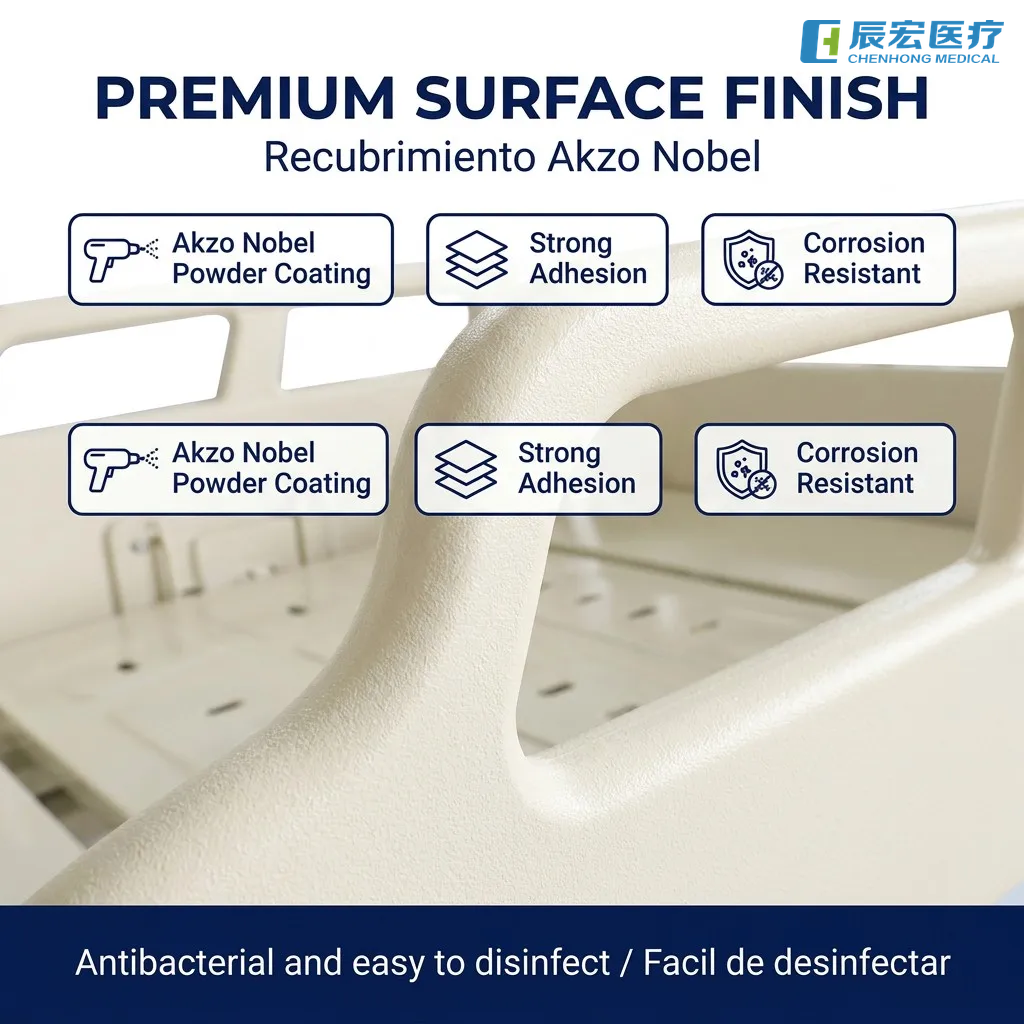

   The whole bed undergoes pickling, phosphating, water washing and oxidation treatment on automatic coating production line, coated with AkzoNobel electrostatic powder. Bright color with strong adhesion, anti-rust and easy to disinfect.


5. Full-Cover European-Style Damping Side Rails

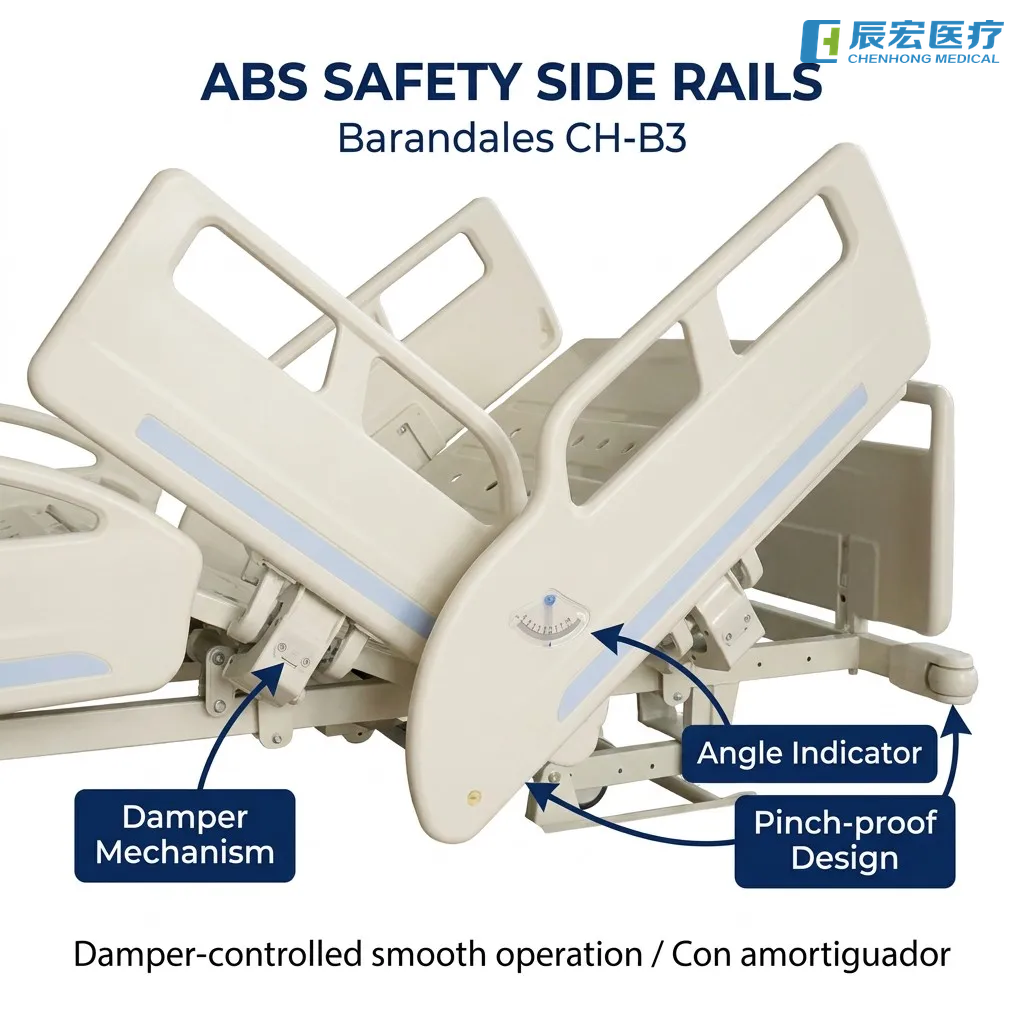

   4 pieces ABS guardrails (large:1100mm, small:880mm) with unique anti-pinch design to avoid clamping patients’ hands. Built-in dampers control lifting speed and reduce noise; each rail is equipped with angle indicator for intuitive operation.

6. 125mm Luxury Silent Central Control Casters

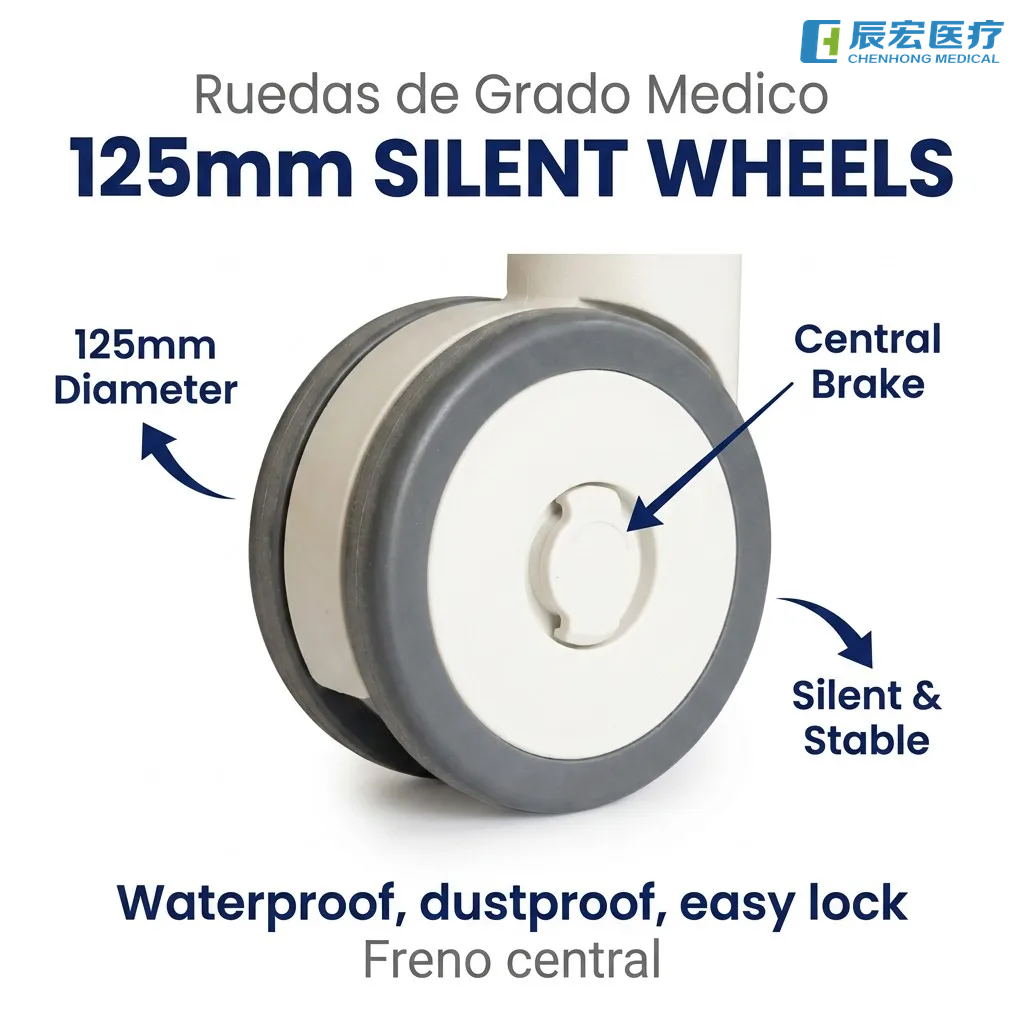

   Four 125mm linkage silent wheels with central brake system for stable, flexible locking. Waterproof & dustproof double-wheel hub design expands contact area to improve overall stability during treatment.

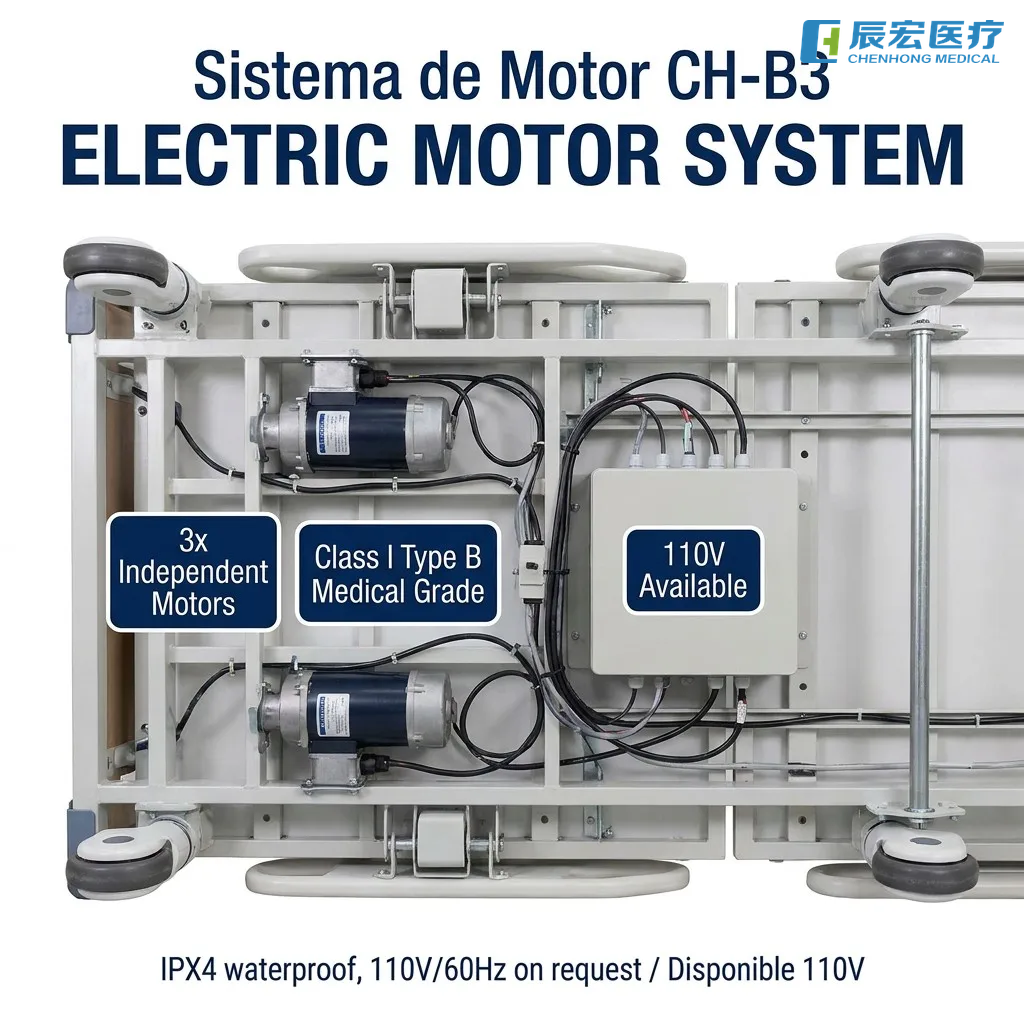

7. Three Independent Safe-Voltage Motors & Hand Controller

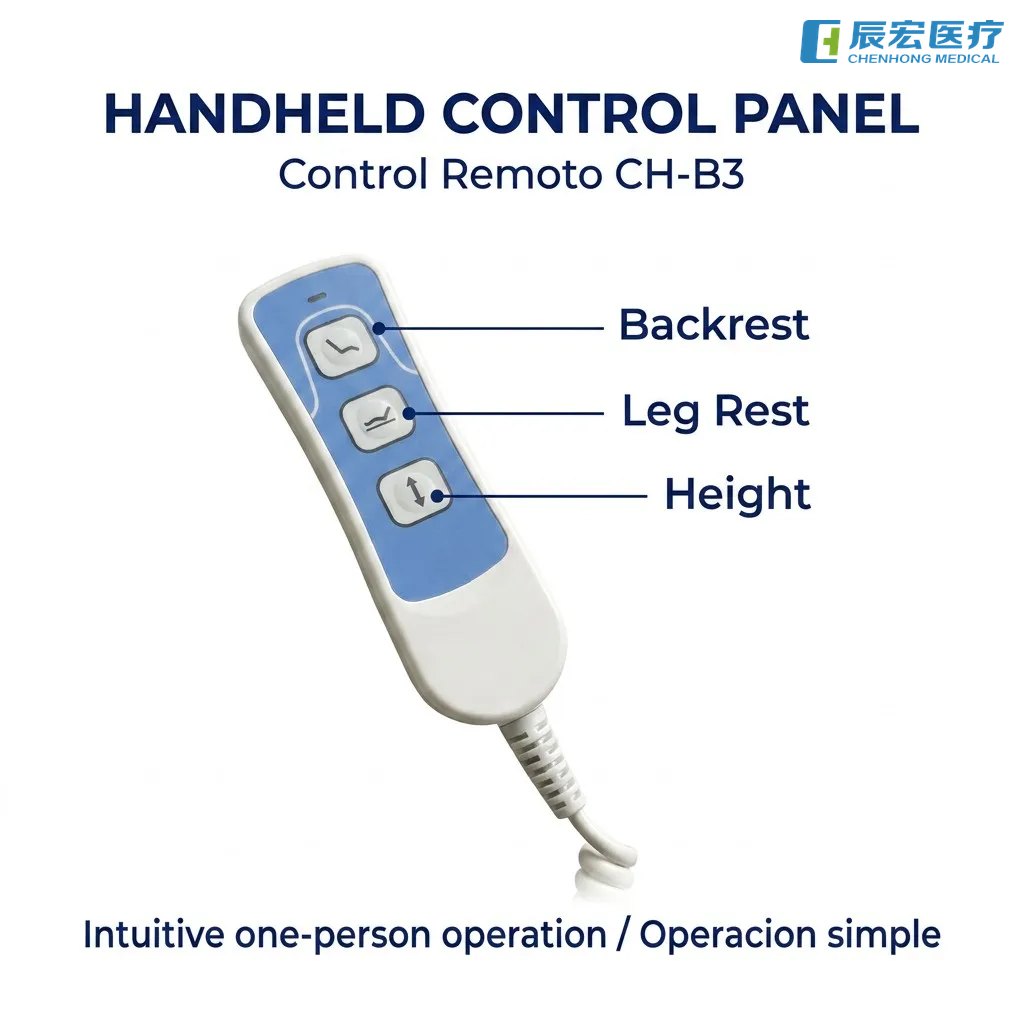

   Three groups of safety voltage motors, one control box and full-function handheld remote controller support three core electric adjustments: backrest folding, leg rest folding and overall bed lifting.

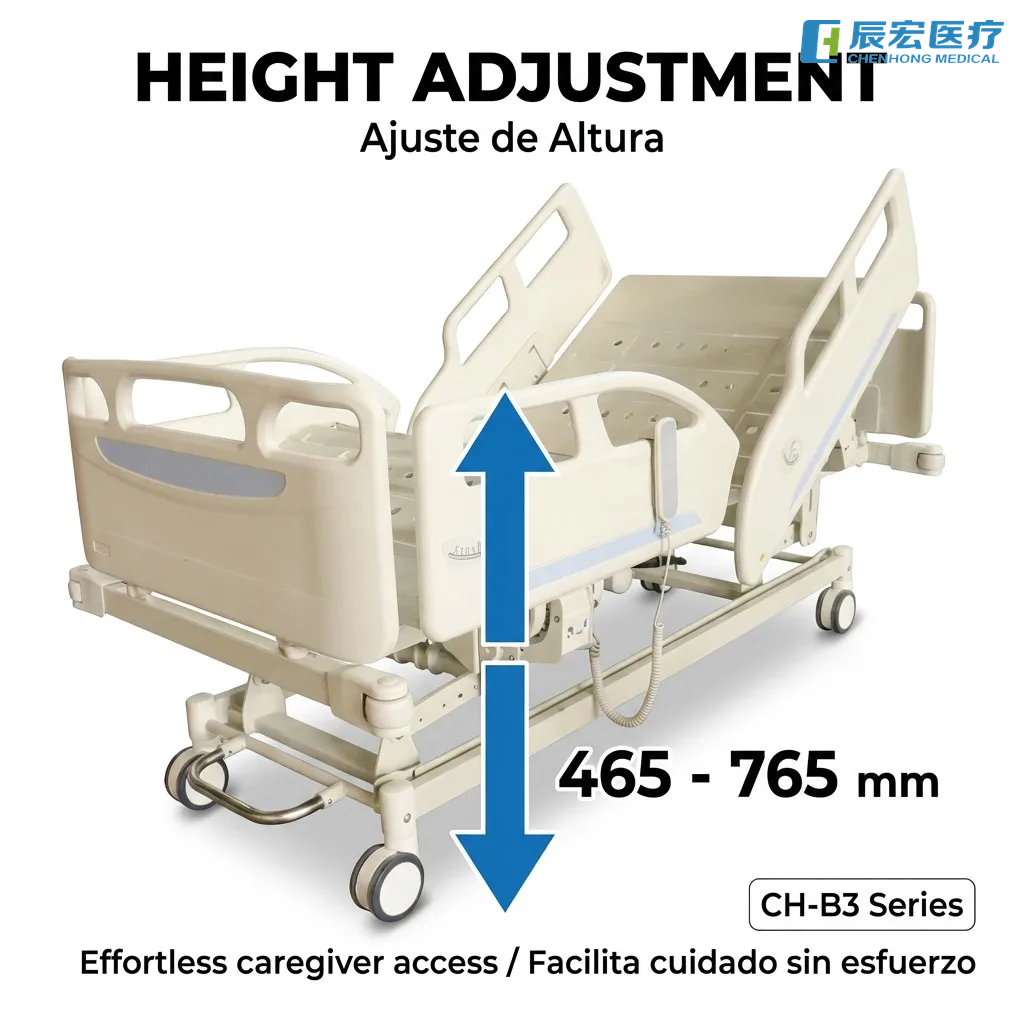

8. Wide Height Adjustment Range

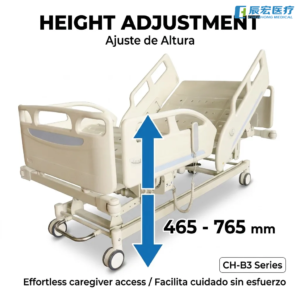

   Electric lifting range from minimum 465mm to maximum 765mm with total lifting stroke of 300mm, convenient for patient transfer, examination and daily nursing.

9. Standard Medical Electrical Safety Grade

   Power supply: AC 220V±10%, 50Hz±1Hz; Class I Type B applied part, IPX4 waterproof rating, short-time intermittent continuous operation; fuse T2L250V 5×20, safe for long-term clinical use.

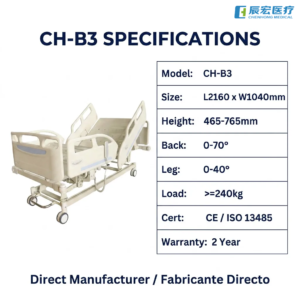

Technical Parameters

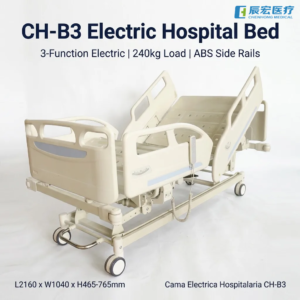

• Model: CH-3 Three-Function Electric Hospital Bed
• Overall Dimension: L2160 × W1040 × H465–765mm (±20mm)

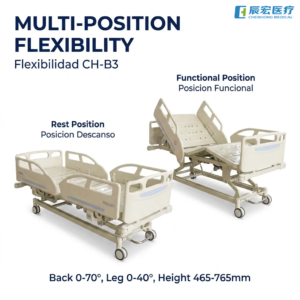

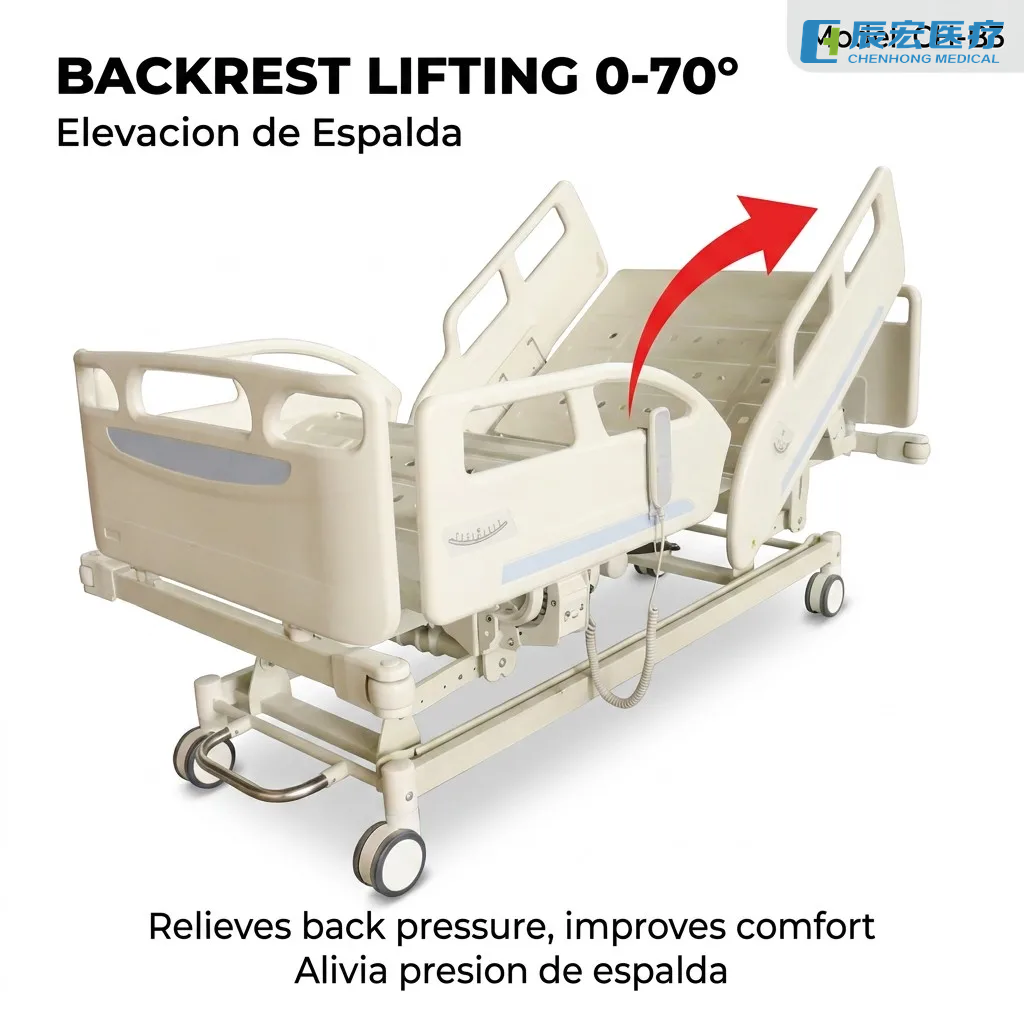

• Backrest Adjustment Angle: 0–70±5°

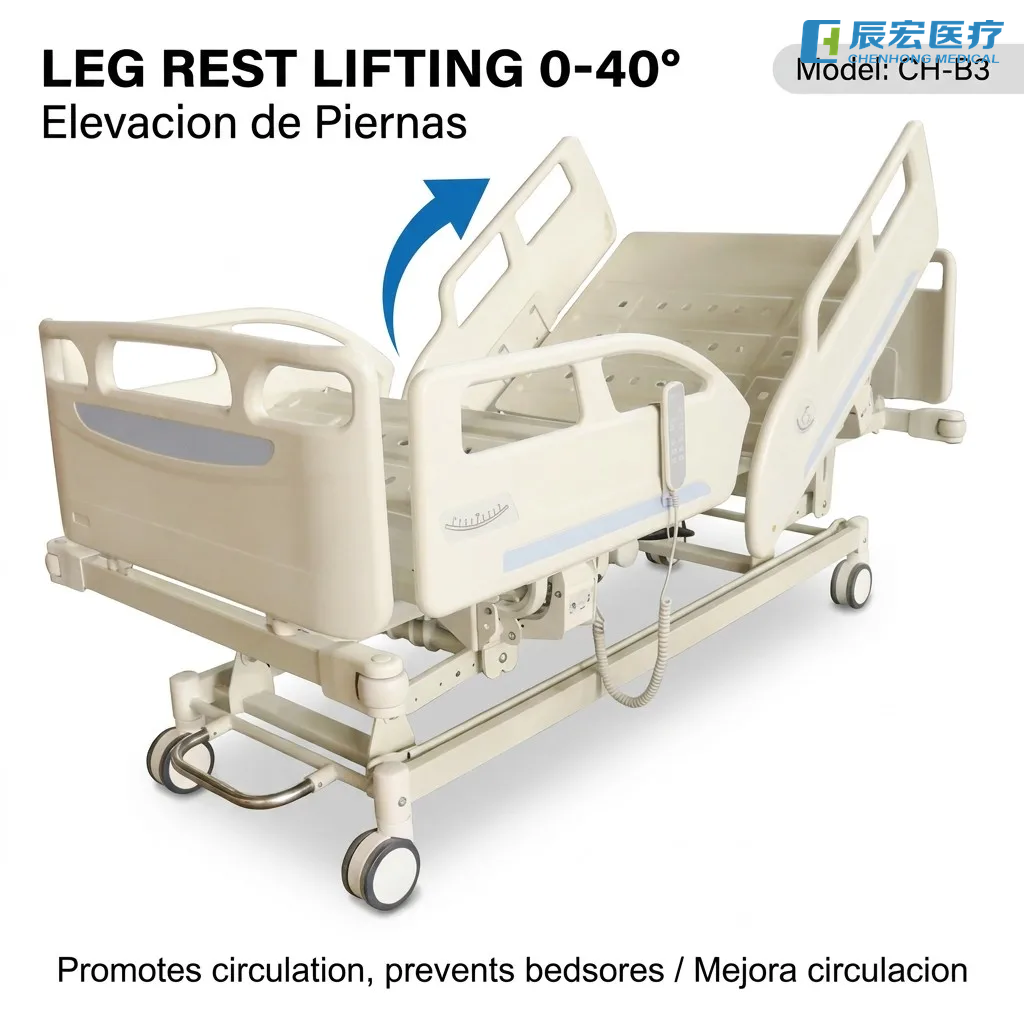

• Leg Rest Adjustment Angle: 0–40±5°
• Electric Lifting Stroke: 300mm
• Max Load Capacity: ≥240kg
• Power Supply: AC 220V, 50Hz
• Electrical Grade: Class I, Type B, IPX4


Standard Configuration & Optional Accessories

Standard Parts

1. Three electric drive motors
2. Main control box
3. Full set of 4 ABS damping lifting side rails
4. Central silent lockable casters set
5. Half-brown cotton waterproof medical mattress
6. Detachable ABS headboard & footboard
7. Under-bed storage rack
8. 4 IV infusion jacks
9. Stainless steel telescopic IV stand
10. Dining tray table

Optional Matching Accessories

Application Scenarios
