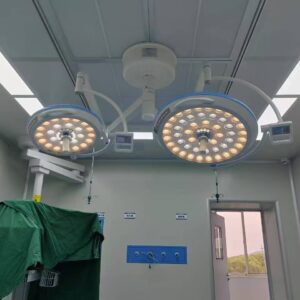

Ceiling Mount CHGLED700 LED Shadowless Surgical Lamp, 3000-5700K Adjustable Cold Light Operating Light with Laparoscopy Mode for Hospital OR

Core Performance & Advantages

1. Full International Authoritative Certifications

   Certified with ISO9001:2015, ISO13485:2016, ISO14001:2015, ISO45001:2018, EU CE and RoHS, fully compliant with global medical device market access standards.

2. Super Long Service Life Cold LED Light Source

   Adopts new cold LED light source with service life over 80,000 hours, no frequent bulb replacement needed. More energy-saving and eco-friendly than traditional halogen lamps. No ultraviolet or infrared radiation; temperature rise on doctor’s head ≤1℃ and surgical field ≤2℃.

3. Aerodynamic Fully Enclosed Lamp Head

   Streamlined closed lamp head eliminates airflow dead zones, satisfies high laminar flow and sterile environment requirements of modern operating rooms, easy to wipe and disinfect.

4. Humanized Adjustable Lighting Control

   Optional touch LCD control panel supports power switch, stepless adjustment of illuminance, color temperature and lighting modes to match various surgical lighting demands. Exclusive one-key laparoscopy mode for endoscopic surgeries.

5. Deep Uniform High-Brightness Illumination

   High-performance optical lens concentrates LED beams into even high-luminance light column, delivering soft deep focused light to meet high-brightness and deep-field lighting requirements of complex surgeries. Max illuminance reaches 160,000Lux, each lamp module supports independent brightness regulation.

6. 6-Speed Adjustable Color Temperature (3000K–5700K)

   Wide color temperature range avoids medical staff eye fatigue during long-time operations and improves accuracy of tissue color judgment for diagnosis.

7. Flexible 360° Balanced Suspension Arm

   Lightweight premium balanced arm (imported arm optional) with six universal joint linkages, 360° full rotation, freely adjustable height, angle and position for all surgical postures, smooth movement and precise positioning.

8. Sterilizable Stepless Manual Focus Handle

   Detachable focusing handle supports high-temperature sterilization under ≤160℃. Manual stepless focusing solves technical difficulties of LED surgical lights, simple and labor-saving to operate.

9. Stable Independent LED Light Modules

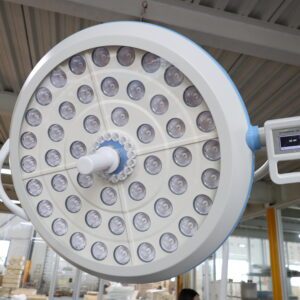

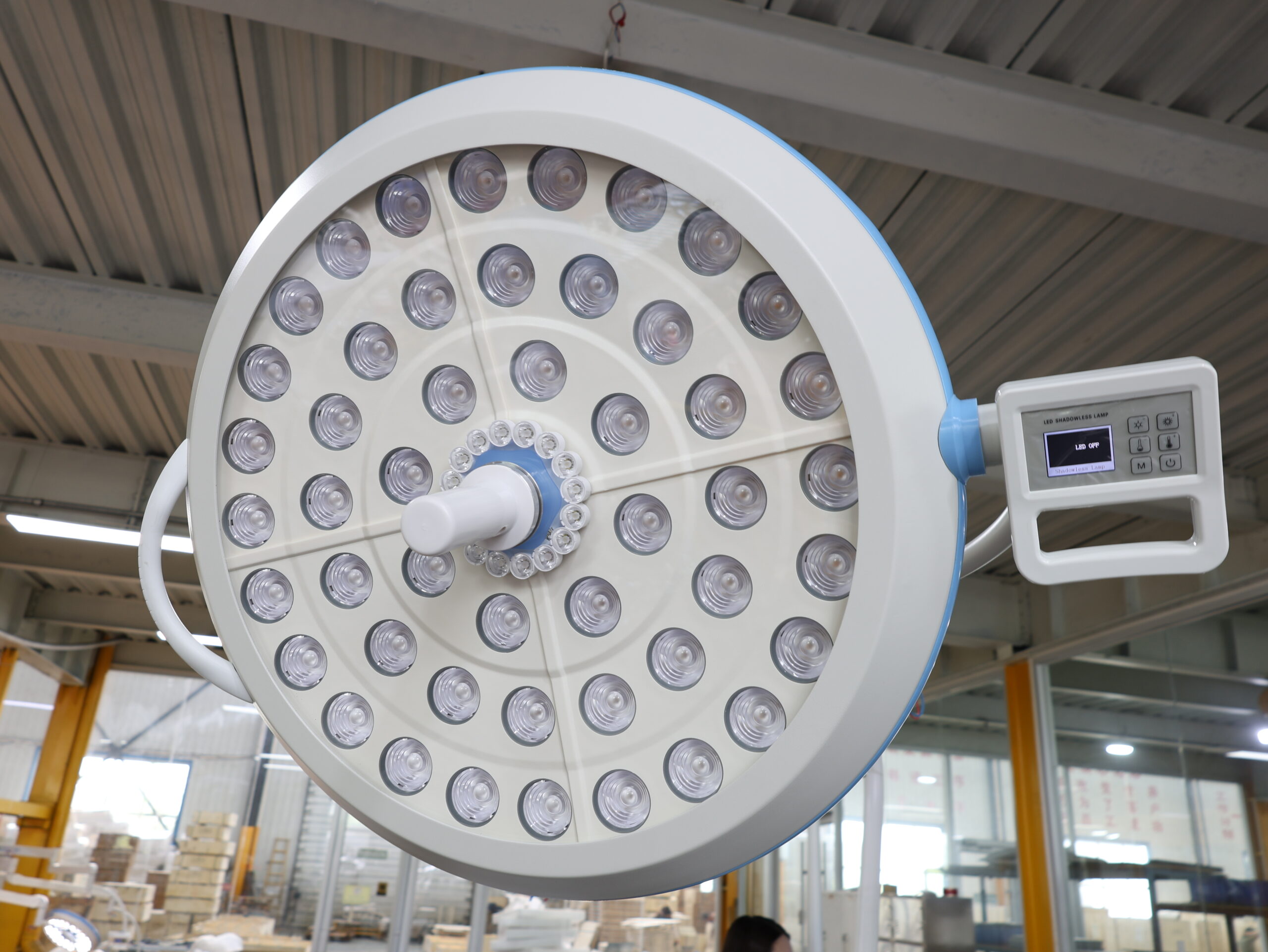

   Built-in 48pcs American CREE LED beads, each module with independent control system. Single LED failure will not affect the whole lamp head, greatly lowering maintenance cost.


   Technical Parameters

   • Model: CHGLED700 Ceiling LED Shadowless Surgical Lamp
   • LED Quantity: 48 pcs American CREE LED beads
   • Illuminance: 80,000 – 160,000 Lux
   • Adjustable Color Temperature: 3000K – 5700K (6-speed adjustable)
   • Light Spot Diameter: 150mm – 350mm
   • Dimming System: Stepless digital dimming
   • CRI (Color Rendering Index): ≥96
   • Color Reproduction Index: ≥97
   • Illumination Depth (20%Ec): ≥1200mm
   • Illumination Depth (60%Ec): ≥800mm
   • Temperature Rise on Doctor’s Head: ≤1℃
   • Temperature Rise on Surgical Field: ≤2℃
   • Power Supply: 220V / 50Hz
   • Input Power: 400W
   • Min / Optimal Installation Height: 2.4m / 2.8m


   Standard Configuration List (Single Unit)

   1. 700 Lamp Head ×1 set (Chenhong brand)
   2. Sterilizable Disinfection Handles ×2 pcs (1 standard + 1 spare)
   3. American CREE LED Light Group ×1 set (48 LED beads)
   4. Balanced Suspension Arm ×1 set (imported arm optional, Chenhong)
   5. Rotating Arm with Fixed Base ×1 set (Chenhong)
   6. Switch Power Supply Assembly ×1 set (domestic)
   7. Protective Cover ×1 set (Chenhong)
   8. Matching Installation & Maintenance Tools ×1 set (domestic)
   9. Product Qualification Certificate & Warranty Card ×1 set (Chenhong)
   10. Operation Instruction Manual ×1 set (Chenhong)
