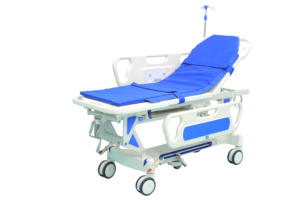

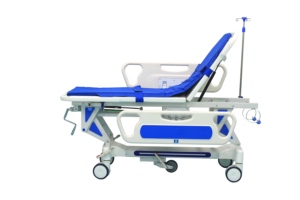

Product Overview
Specifications
- Overall Dimension: 1930760500/800mm
- Lifting Stroke: 300mm
Core Performance Features
- Integrally Molded ABS Bed Surface
The bed platform is one-piece compression molded from ABS engineering plastic, featuring excellent flame resistance, corrosion resistance and high toughness. Built-in handles on four corners for convenient pushing and handling by nursing and emergency staff.

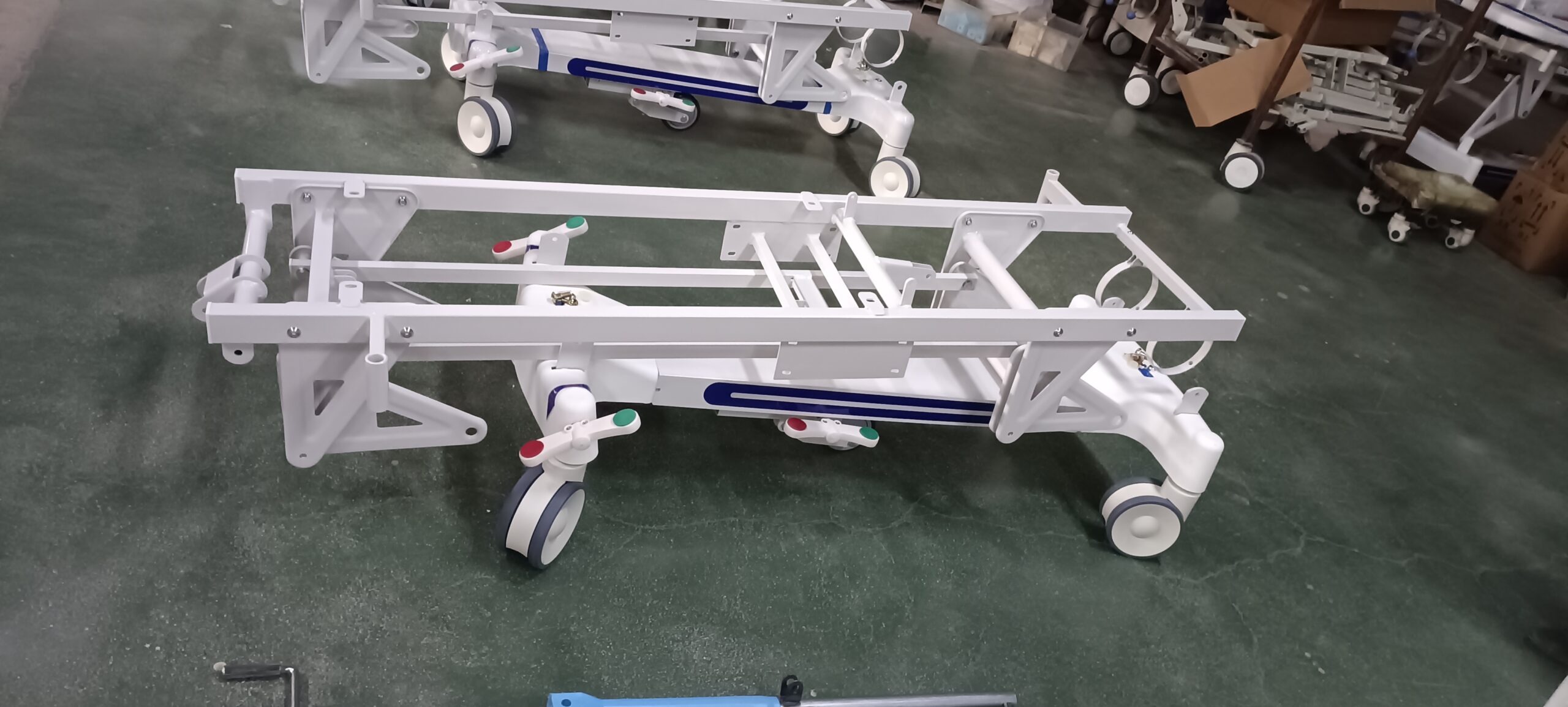

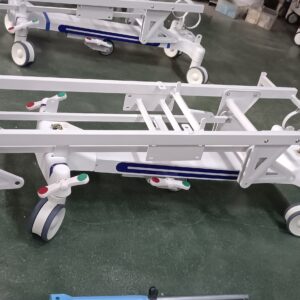

- Heavy-Duty Robot-Welded Frame
Main frame constructed from 30*50mm, 1.2mm thick cold-rolled steel tubes. Precision robotic welding guarantees structural robustness. Maximum load capacity reaches ≥250kg.
- Eco-Friendly Powder Coating
The whole frame adopts environmental electrostatic powder spraying for anti-corrosion and easy disinfection. Imported premium gas spring system controls backrest lifting ranging from 0–65°, simple enough for one-hand operation.
- ABS Lift-Type Guardrails with Gas Spring Buffer
Pull-up ABS safety guardrails. Built-in gas spring buffer for slow lowering to improve comfort and extend service life while preventing patient falls.

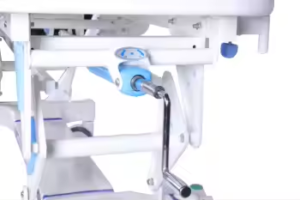

- Crank Height Adjustment with Overload Protection
Manual crank lifting system adjusts bed height between 500mm–800mm. The crank comes with bidirectional overload protection and automatic lubrication structure - One-Piece Stamped Steel Base
Base made of 1.5mm cold-rolled steel sheet through integral die stamping, solid structure and outstanding stability during transportation.

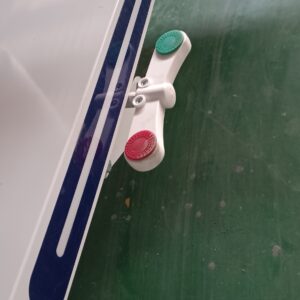

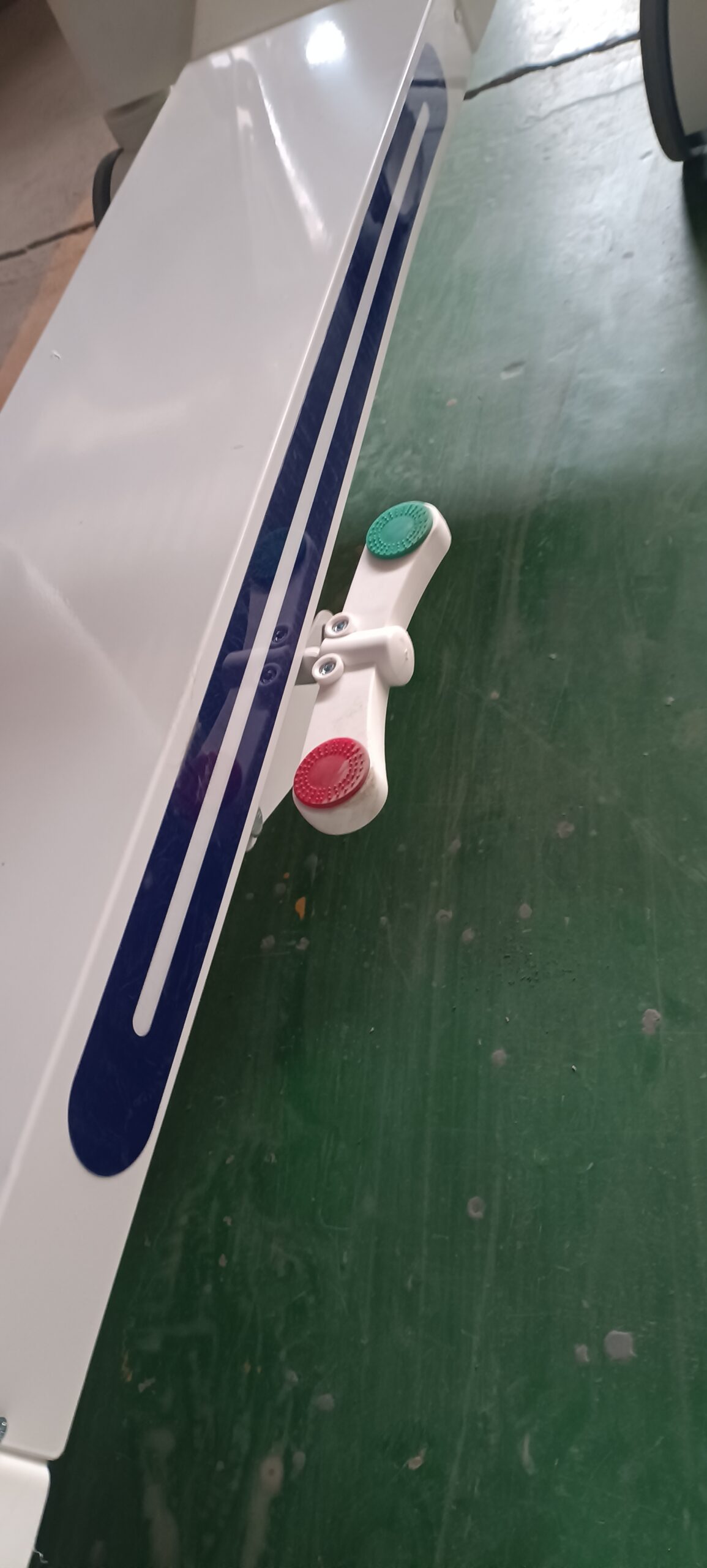

- Central Linked Brake System with Φ150mm Casters
Four full-lock 150mm casters with excellent resistance to oil, abrasion, disinfectants and chemicals. Dustproof design enables smooth, reliable and lightweight movement.
- Independent 5th Steering Wheel
Additional 5th steering wheel greatly improves flexibility for straight travel and turning during patient transport.

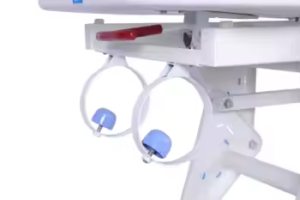

- Built-In Oxygen Cylinder Bracket
Oxygen holder mounted on the front of trolley, compatible with 5L oxygen cylinders to meet emergency rescue requirements.
- Diagonal IV Stand Jacks
Reserved IV pole insertion holes at both ends, equipped with one telescopic IV stand for patient infusion during transport.
- Complete Safety Auxiliary Accessories
Comes with 3cm thick oxford fabric mattress and two safety restraint straps to prevent accidental falling during urgent patient transfer.
Standard Configuration List (Single Unit)
- Trolley main body ×1 set
- Oxford fabric mattress ×1 pc
- Safety guardrail set ×1 pair
- Telescopic IV stand ×1 pc
- Oxygen cylinder bracket ×1 pc
- Lockable transport casters ×4 pcs
- Height adjustment crank assembly ×1 set
- User operation manual ×1 set
