Product Overview

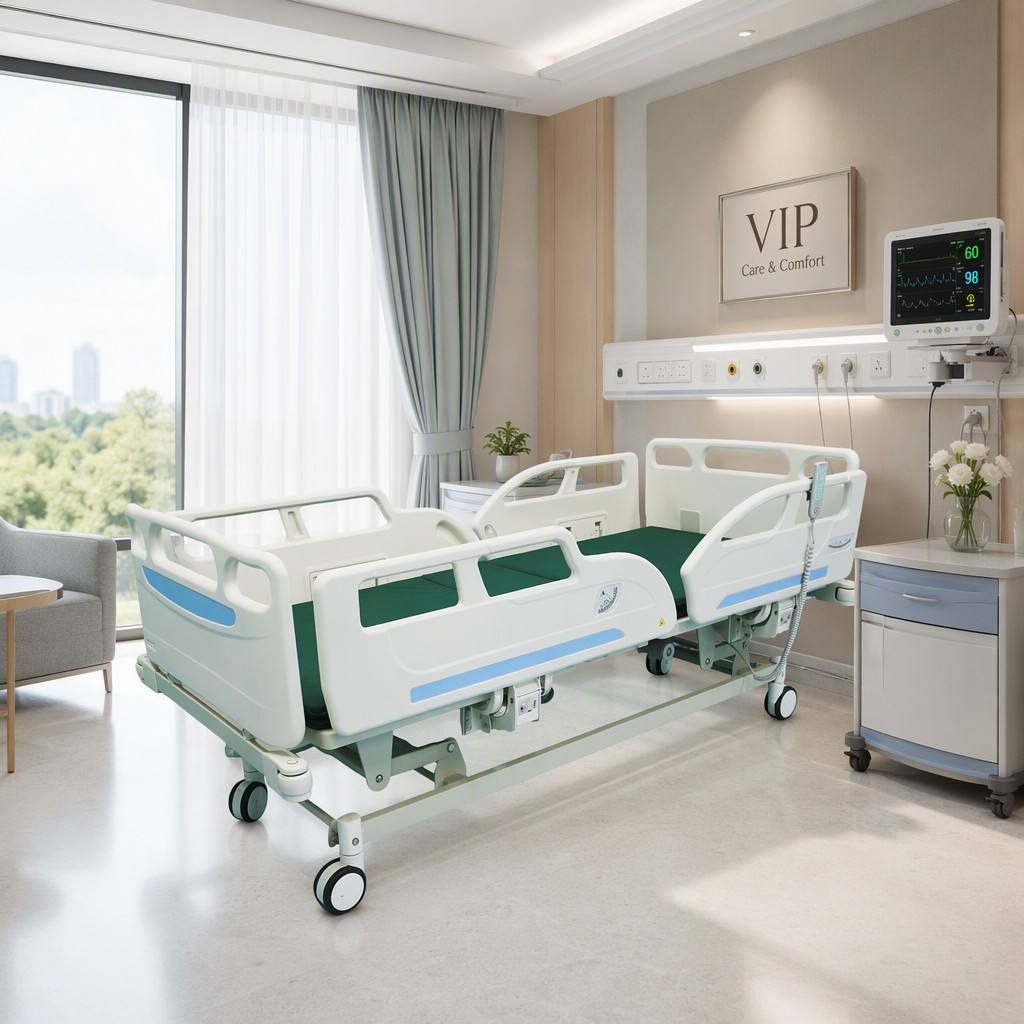

Engineered for intensive care units (ICU) and modern clinical wards, the CH-5 5-Function Electric Hospital Bed offers complete positional flexibility, including backrest, leg-rest, height adjustment, and Trendelenburg / Reverse Trendelenburg tilting. Built on a heavy-duty scissor-lift mechanism with AkzoNobel powder-coated steel, this bed guarantees smooth operation, superior stability, and ergonomic safety for both patients and healthcare personnel.
Technical Specifications
| Model Name | CH-5 Electric Hospital Bed (B) |
| Overall Dimensions | L2160 × W1020 × H465-785 mm (+20 mm) |
| Backrest Adjustment | 0 – 75° ± 5° |
| Legrest Adjustment | 0 – 40° ± 5° |
| Trendelenburg / Reverse Tilting | 0 – 14° ± 2° |
| Height Adjustment Range | 465 – 785 mm (320 mm scissor-lift range) |
| Safe Load Capacity | ≥240kg |
| Bed Platform | 1.1 mm one-piece stamped cold-rolled steel with ventilation pores |
| Main Frame | 30*60*1.2mm molded square tubing |
| Caster System | 125 mm luxury silent central-locking dual-wheel casters |
| Drive System | 4 safe-voltage motors with 1 central control box & handheld remote |
| Electrical Safety Standards | AC 220V±10%, 50Hz, Class I, Type B, IPX4 |
Key Features & Clinical Performance
-

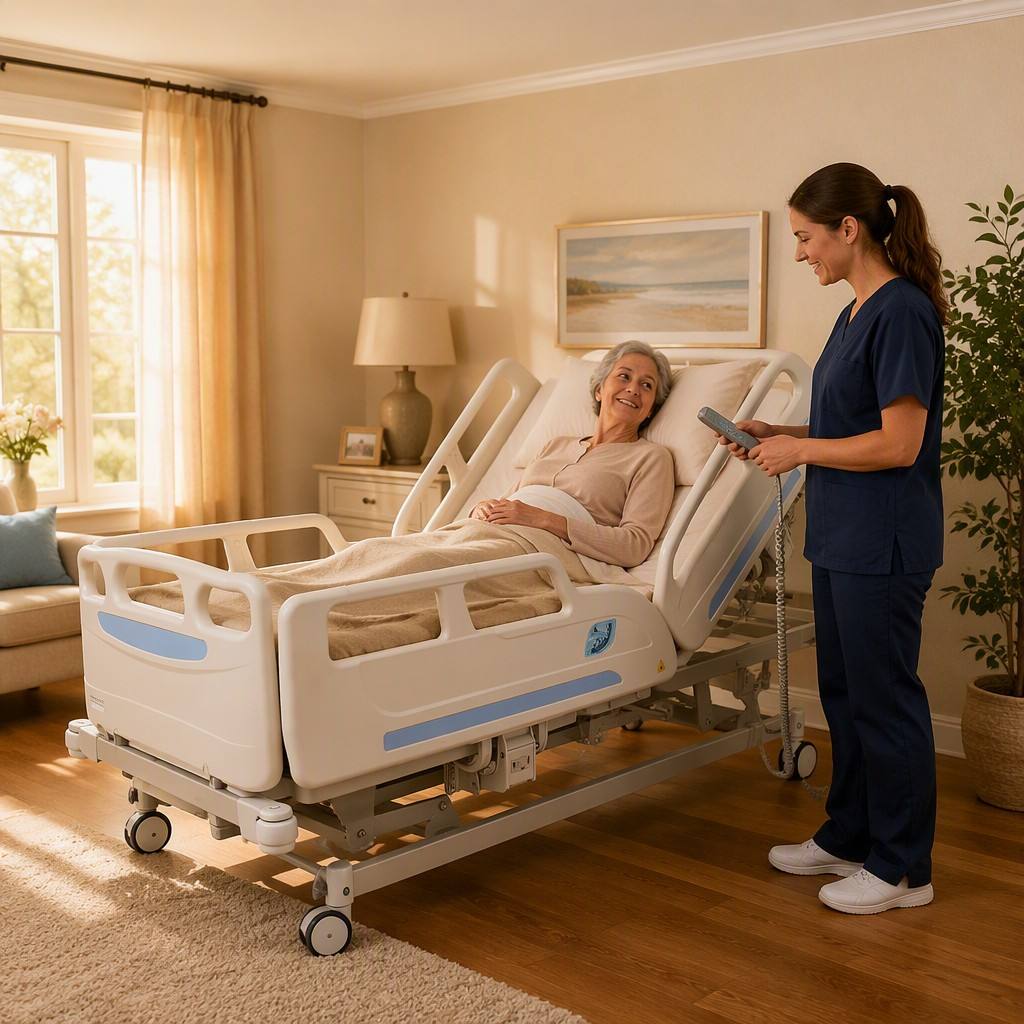

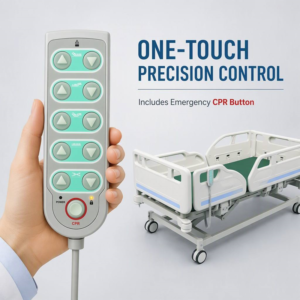

Versatile 5-Function Motorized Control: Powered by 4 independent safe-voltage electric motors. The integrated handheld controller effortlessly operates backrest raising, leg raising, overall height elevation, and 0-14° forward/backward tilting (Trendelenburg/Reverse Trendelenburg).
-
Heavy-Duty Scissor Lift Mechanism: Features a reinforced scissor-type lifting structure that smoothly raises the bed platform from a low entry height of 465 mm to a peak working height of 785 mm (320 mm stroke), reducing caregiver back strain during clinical procedures.
-

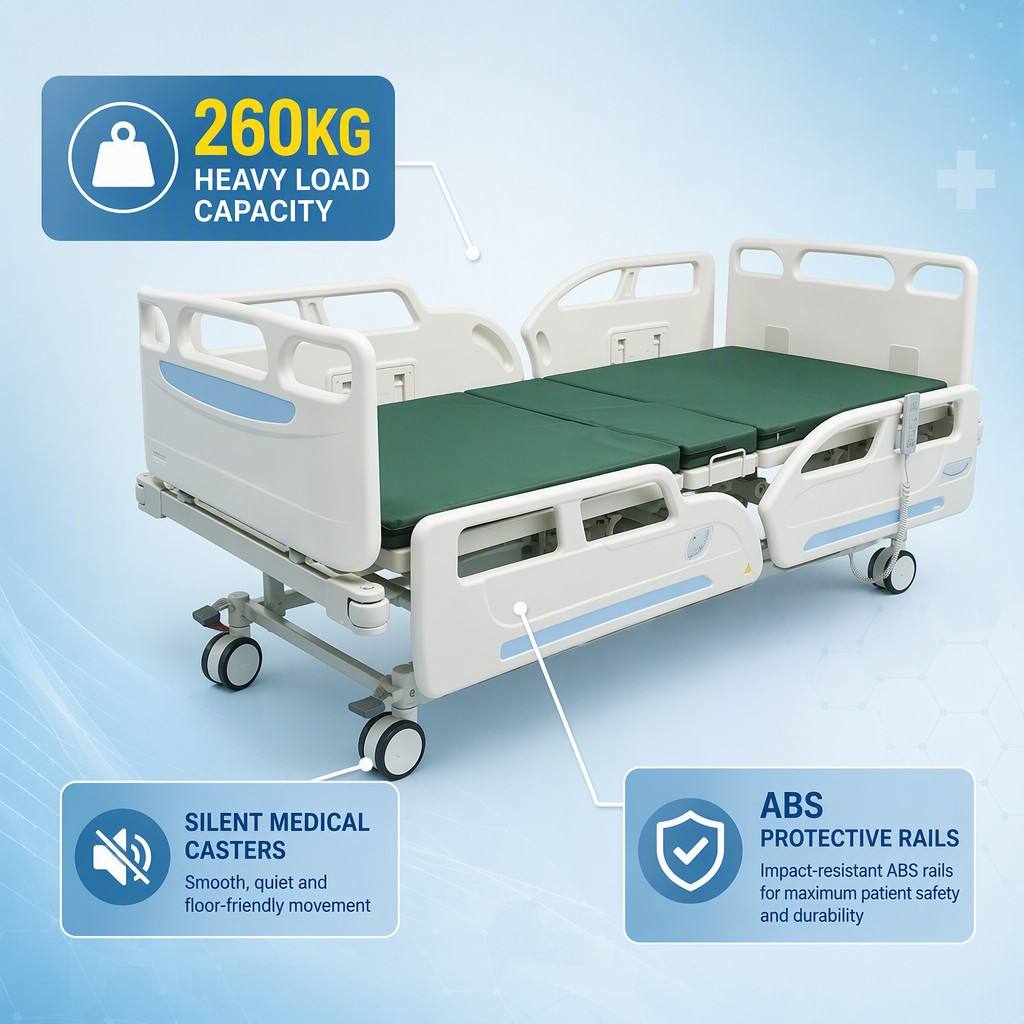

Full-Coverage Guardrails with Angle Displays: Equipped with 4 full-coverage European-style ABS side rails (large 1100 mm / small 880 mm) featuring an anti-pinch design, smooth damper-controlled lowering, and built-in angle display gauges for precise patient positioning.
-
High-Durability Stamped Platform: Constructed from a single 1.1 mm thick cold-rolled steel sheet using a one-piece stamping method. The concave multi-pore design ensures optimum mattress ventilation and slip resistance, reinforced with steel cross-tubes underneath to support loads≥240kg.
-
Anti-Collision ABS Head & Foot Boards: Plug-in blow-molded ABS boards allow instant assembly and removal. Both ends are equipped with integrated corner anti-collision wheels to protect hospital walls during transportation.
-
Central-Locking Dual-Wheel Casters: Four 125 mm dustproof and waterproof casters feature a dual-disc design for maximum floor stability and a highly responsive central linkage brake mechanism.
-
Automated AkzoNobel Powder Coating: The steel frame undergoes pickling, phosphating, water washing, and oxidation before receiving an automated AkzoNobel electrostatic powder coating for supreme chemical resistance and long-term finish adhesion.
Factory Direct Capabilities & B2B Services
-
Certifications & Standards Compliance: Fully certified under ISO 13485, CE, and FDA regulations, making it fully eligible for international hospital procurement and government tenders.
-
OEM & Customization Support: Complete customization options available, including custom logo printing, localized voltage/plug configurations, alternative side rail color panels, and custom packaging for LCL/FCL container shipments.
💼 Why Partner with Us? (Serving Global B2B Distributors & Tender Projects)
As a robust, direct-selling medical device manufacturer, we provide tailored services for major international distributors, procurement networks, and hospital tender projects:
Factory-Direct Pricing: Eliminate intermediary markups to maximize your price competitiveness in tenders.
Global Supply Chain & Logistics: Flexible trade terms (FOB, CFR, CIF, DDP, etc.) to meet your specific logistical needs.
Comprehensive Certification Support: Every shipment includes full quality inspection documentation, warranty cards, and detailed operation manuals.
✉️ Get a Factory-Direct Wholesale Quote Today
Are you seeking highly competitive products for upcoming medical tenders or your distribution business? Contact our International Trade Department now to receive the latest wholesale quotes and customized configuration options!
